6T Hydraulic Winch Puller For Overhead Power Line Conductor Wire Cable Stringing

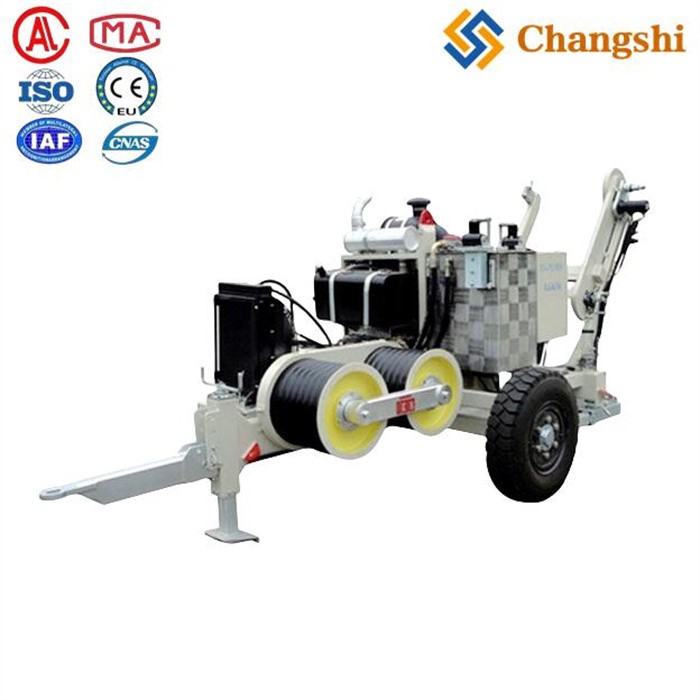

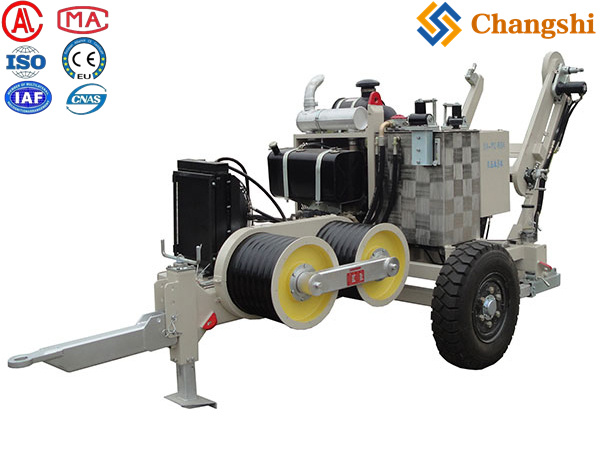

The SA-YQ60 hydraulic puller is a heavy-duty traction machine widely used for overhead power line stringing, including conductor wires, earth wires, OPGW cables, and ADSS cables. It is designed to provide reliable and adjustable pulling force with safety features suitable for demanding construction and utility projects.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The SA-YQ60 hydraulic puller is a heavy-duty traction machine widely used for overhead power line stringing, including conductor wires, earth wires, OPGW cables, and ADSS cables. It is designed to provide reliable and adjustable pulling force with safety features suitable for demanding construction and utility projects.
-
: 60 kN
-
: 50 kN
-
: 5 km/h
-
: 460 mm (bottom of groove)
-
: 7
-
Maximum Suitable Steel Rope Diameter: 18 mm
-
Maximum Through Connector Diameter: 60 mm
-
: 77 kW at 2800 rpm (typically a Cummins or Dongfeng water-cooled diesel engine)
-
: 3800 × 2100 × 2300 mm
-
: Approximately 3000 kg
-
-
Infinitely variable speed and traction force control, allowing precise adjustment of pulling speed and force.
-
Automatic overload protection with preset maximum traction force to prevent damage or accidents during conductor stringing.
-
Spring-applied, hydraulically released brake that automatically engages in case of hydraulic failure or sudden engine shutdown, ensuring safe operation.
-
Equipped with a steel wire rope automatic winding device for convenient rope arrangement, loading, and unloading.
-
Closed hydraulic back oil circuit with a bidirectional variable plunger pump for consistent traction control.
-
Trailer-type structure for mobility and a rigid scaffold design for durability.
-
Traction during the payout of wires and cables in overhead power line construction.
-
Suitable for stringing conductors, earth wires, optical ground wires (OPGW), and all-dielectric self-supporting (ADSS) cables.
-
Engine: Cummins (Dongfeng) water-cooled diesel engine.
-
Hydraulic system: Rexroth (Bosch) main variable pump, motor, and hydraulic valve.
-
Reducer: Italian RR brand.
-
Radiator: AKG.
-
Hydraulic instruments: WIKA.
The SA-YQ60 is valued for its combination of power, safety features, and operational flexibility, making it a preferred choice for power transmission line stringing projects
