Power Line Stringing Tools & Accessories

Power Line Stringing Tools & Accessories

Power line stringing is a highly specialized and complex operation that requires a wide array of heavy machinery, precision tools, and specialized accessories. These tools facilitate the safe and efficient installation or replacement of overhead conductors (wires) on transmission and distribution lines.

Essential Power Line Stringing Tools & Accessories:

Conductor Pulling Grips (Socks / Stockings):

Purpose: To securely attach the pulling rope to the conductor(s) without damaging the conductor itself. They work by tightening around the conductor as tension is applied.

Types:

Single-Eye Grips: For pulling individual conductors.

Double-Eye / Through-Eye Grips: Allow the conductor to pass through, useful for splicing or continuous pulls.

Multi-Weave Grips: Offer superior grip and strength for heavy loads.

Bundled Conductor Grips: Designed to pull multiple conductors simultaneously.

Non-Metallic Grips: Made from Aramid fibers for specific applications.

Materials: High-strength galvanized steel or stainless steel wire mesh.

Features: Often integrate swivels to prevent torque buildup (twisting) in the conductor during the pull. Rated by breaking strength and conductor size range. (GlobalSpec and Slingco describe various types).

Swivels:

Purpose: Placed between the pulling grip and the pulling rope to eliminate any twisting forces that could build up during the pull, preventing damage to the conductor or rope.

Types: Ball-bearing swivels for smooth rotation under load.

Material: High-strength steel.

Pilot Lines / Hauling Lines (and Accessories):

Purpose: Lighter, smaller diameter ropes used to pull the heavier main pulling rope across the spans.

Materials: Synthetic ropes (e.g., polypropylene, polyester, aramid fibers) for high strength-to-weight ratio, or sometimes lightweight steel wire rope.

Accessories: Pilot line winders/dispensers, lead lines, parachute bags for floating lines across ravines.

Come-Alongs (Wire Grips / Pulling Clamps):

Purpose: Manual tools used to grip, hold, and apply tension to conductors or guy wires, especially for sagging, dead-ending, or repair work. They allow for precise tension adjustment.

Types:

Standard Come-Alongs: For general conductor gripping.

All-Purpose Grips: For a wider range of wire sizes and types.

Hot Line Grips: Designed for use with hot sticks on energized conductors (specialized use, usually for maintenance rather than initial stringing).

Specific Jaw Designs: Flat jaw, round jaw, serrated, parallel jaw, based on conductor shape.

Features: Ratchet mechanisms, safety latches, various load ratings (WLL - Working Load Limit). (AUS and Innomatic describe various come-along clamps).

Sling Kits & Hoists:

Slings: Used for lifting and positioning stringing blocks, insulators, and other hardware. Made from synthetic web, round slings, or wire rope.

Hoists (Chain Hoists, Lever Hoists): Manual or powered devices for lifting, pulling, and positioning heavy components on structures.

Splicing & Conductor Repair Tools:

Hydraulic Crimping/Compression Tools: Used to permanently join conductors or apply dead-end fittings by compressing sleeves or connectors onto the conductor.

Dies: Specific to conductor and connector sizes.

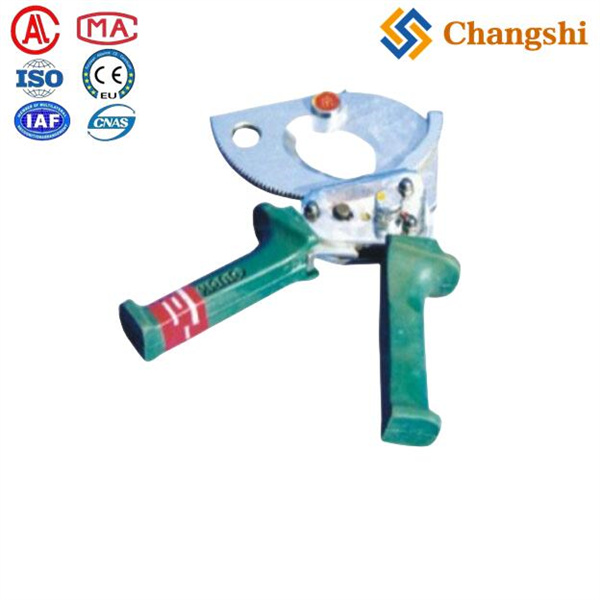

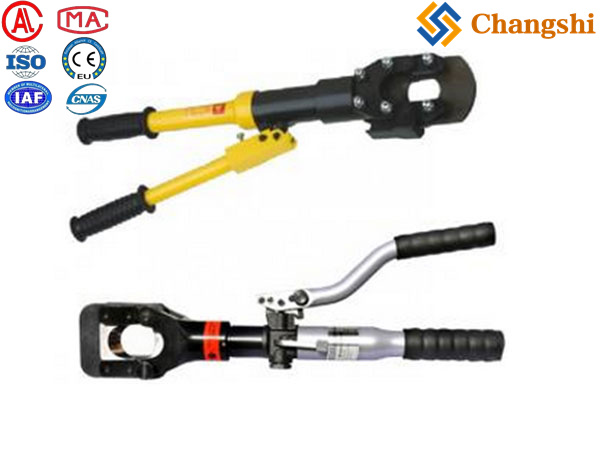

Cutting Tools: Heavy-duty cutters for various conductor materials and sizes.

Cable Strippers/Screwdrivers: For preparing conductors. (Marrow Lin and TKP mention crimping tools as part of wiring accessories).

Grounding & Bonding Equipment:

Temporary Grounding Sets: Essential for worker safety when lines are de-energized, as discussed previously.

Ground Rods & Clamps: For establishing a reliable earth connection.

Measuring Tools:

Tension Meters (Dynamometers): Crucial for measuring the tension in the pulling rope or conductor to ensure it stays within safe limits and meets sag specifications. (Dillon EDXtreme RED Dynamometer mentioned by Tallman Equipment).

Sag Boards/Targets: Used during sagging operations to visually verify the correct conductor sag.

Measuring Tapes & Rangefinders: For distance measurements.

Safety & Rigging Accessories:

Ropes & Rigging Hardware: High-strength ropes, shackles, carabiners, snatch blocks, and pulleys for various rigging tasks.

Warning Signs & Barricades: To establish safe work zones.

Personal Protective Equipment (PPE): (As discussed in previous responses).
