Conductor earth wire stringing Reel Stand With Tension Brake For Overhead Power Lines & Cable Laying

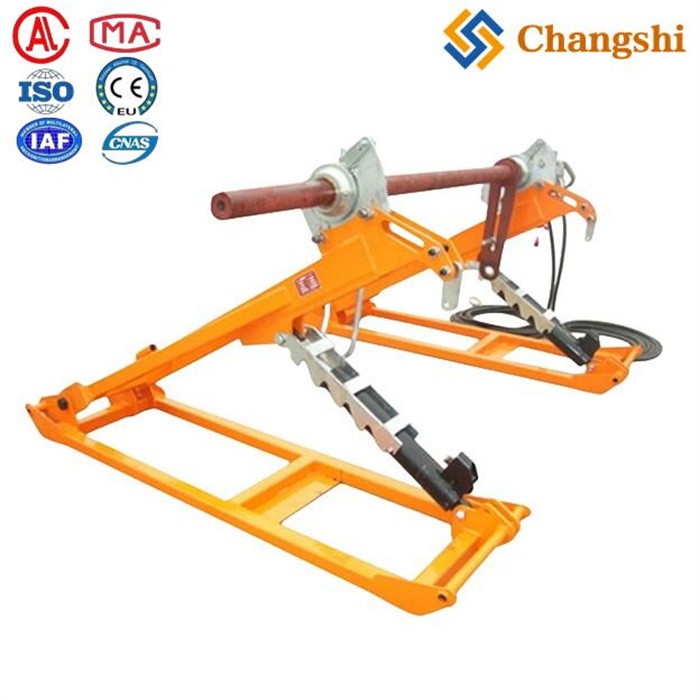

An integrated reel stand with disc tension brake is a specialized piece of equipment designed to support and control the payout of heavy cable reels, commonly used in conductor or earth wire stringing operations for overhead power lines and cable laying.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
An integrated reel stand with disc tension brake is a specialized piece of equipment designed to support and control the payout of heavy cable reels, commonly used in conductor or earth wire stringing operations for overhead power lines and cable laying.
-
: The integrated disc brake system provides precise control over reel rotation, allowing adjustable braking torque to prevent uncontrolled payout and cable damage. Models like the SIPZ-7 feature a double disc brake design for enhanced braking force.
-
: Many integrated OHTLstringingequipment.com/Reel-Stands--Cable-Winders.html target='_blank'>Reel Stands can be driven by a hydraulic motor, which allows rotation control in both directions. This hydraulic operation is typically connected to hydraulic OHTLstringingequipment.com/Hydraulic-Conductor-Tensioners.html target='_blank'>Tensioners or Tensioners.html target='_blank'>Puller Tensioners via long hydraulic hoses (e.g., 13 meters), enabling smooth and controlled cable payout.
-
: These stands accommodate reels with diameters ranging from approximately 900 mm up to 2500 mm, and widths up to 1700 mm. Maximum reel weights supported range from 3,000 kg (3 tons) to 7,000 kg (7 tons) depending on the model.
-
: The stands can be disassembled into three parts, facilitating easier transportation and on-site handling.
-
: Made from heavy-duty steel with protective coatings, ensuring durability and stability during operation.
-
: The braking system combined with hydraulic control enhances operator safety and payout efficiency during stringing or mechanical traction wire-laying.
| Model | Reel Diameter (mm) | Reel Width (mm) | Max Weight (kg) | Brake Torque (N·m) | Weight (kg) | Brake Type |
|---|---|---|---|---|---|---|
| SIPZ-3A | 900 - 1600 | ≤1350 | 3000 | 1000 | 200 | Single Disc Brake |
| SIPZ-5A | 1600 - 2400 | ≤1350 | 5000 | 1000 | 215 | Single Disc Brake |
| SIPZ-7 | 1800 - 2500 | ≤1700 | 7000 | 2000 | 480 | Double Disc Brake |
-
Overhead power transmission line conductor and earth wire stringing.
-
Mechanical traction wire-laying operations.
-
Controlled payout of heavy cable reels in electrical and telecom cable installation.
-
Provides controlled braking to prevent cable damage.
-
Hydraulic motor drive enables bidirectional reel rotation.
-
Modular design eases logistics.
-
Heavy-duty construction ensures reliability in harsh field conditions.
-
Compatible with hydraulic tensioners and pullers for integrated stringing systems.
In summary, integrated Reel Stands with disc tension brakes like the SIPZ series offer robust, versatile, and safe solutions for managing large cable reels in power transmission and cable installation projects, combining hydraulic control with effective braking to optimize stringing operations
