Wireless Load Cell Systems for Real-time Monitoring
Wireless load cell systems for real-time monitoring represent the pinnacle of force measurement technology in demanding applications like power line stringing. They combine the precision of digital dynamometers with the unparalleled flexibility and safety benefits of wireless data transmission.
How Wireless Load Cell Systems Work:
A wireless load cell system typically consists of:

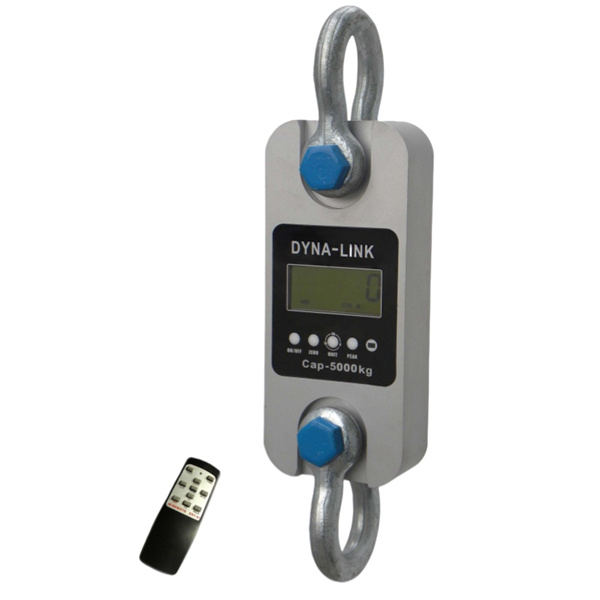

The Wireless Load Cell (Transducer): This is the core component (often a load shackle, tension link, or load pin). It contains strain gauges that convert the applied force into an electrical signal. Critically, it also houses a wireless transmitter (e.g., 2.4 GHz, Bluetooth, or other radio frequency module) and a battery for power. These are ruggedized and sealed (often IP67 or higher) for outdoor and harsh environments.
Wireless Receiver: This unit receives the data wirelessly from one or more load cells. It can be:
Handheld Display Unit: A portable device that displays real-time load readings.
Base Station/Gateway: A more robust receiver that can connect to multiple load cells and then transmit the data further (e.g., via Wi-Fi, Ethernet, or cellular) to a central monitoring system, PC, or cloud platform.
Integrated into Stringing Equipment: Some advanced pullers/tensioners have built-in receivers.
Software/Monitoring Interface:
PC Software: For data logging, analysis, reporting, and real-time visualization on a computer.
Mobile Apps: Many systems offer smartphone/tablet apps for convenient real-time monitoring and basic data management in the field.
Cloud Platforms: For larger, multi-site projects, data can be streamed to a cloud-based dashboard, allowing remote monitoring from anywhere with internet access.
Key Benefits for Real-time Monitoring (Especially in Power Line Stringing):
Enhanced Safety:
Remote Monitoring: Operators can view real-time tension data from a safe distance, away from the immediate hazards of high-voltage lines, heavy machinery, and dynamic pulling operations. This eliminates the need for personnel to be physically close to the load cell to read a display.
No Cables: Eliminates trip hazards and potential cable damage/interference that can occur with wired systems, especially in rugged terrain or across long distances. This is particularly important on construction sites.
Overload Prevention: Real-time data with configurable alarms provides immediate notification of over-tension conditions, allowing operators to react quickly and prevent conductor damage or equipment failure.
Increased Efficiency and Productivity:
Faster Setup: No need to run or protect cables, significantly speeding up setup time for stringing operations.
Improved Workflow: Allows for more flexible placement of equipment and personnel, streamlining operations.

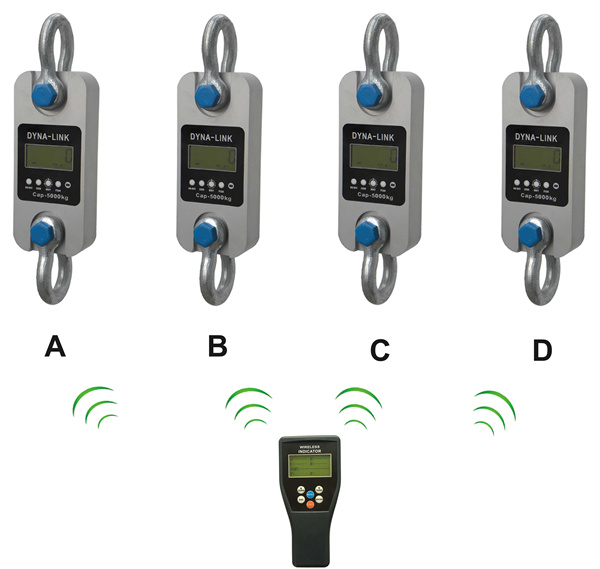

Multi-Point Monitoring: A single receiver can often monitor multiple load cells simultaneously, providing a comprehensive overview of tension at different points in a stringing rig (e.g., tension at the puller, and at a tensioner on the other end, or on multiple phases).
Real-time Adjustments: Operators can make immediate adjustments to pulling force or tension based on live feedback, ensuring precise adherence to sag and tension specifications.
Data Logging and Analysis:
Comprehensive Records: Automatically logs tension data over the entire stringing process (including time, date, peak loads, average loads). This data is invaluable for quality assurance, troubleshooting, compliance reporting, and post-project analysis.
Auditing and Verification: Provides verifiable records for project documentation and proof of compliance with engineering specifications.
Predictive Maintenance: Long-term data logging can help identify trends or anomalies that might indicate issues with equipment or conductor behavior.
Flexibility and Portability:
Easy Relocation: Wireless load cells are highly portable and can be quickly moved and redeployed as stringing progresses along a line.
Hard-to-Reach Areas: Ideal for use in locations where running cables would be difficult, expensive, or impractical (e.g., high on towers, across rivers, in remote terrain).
Integration: Can be easily integrated into existing systems or combined with other wireless sensors.
