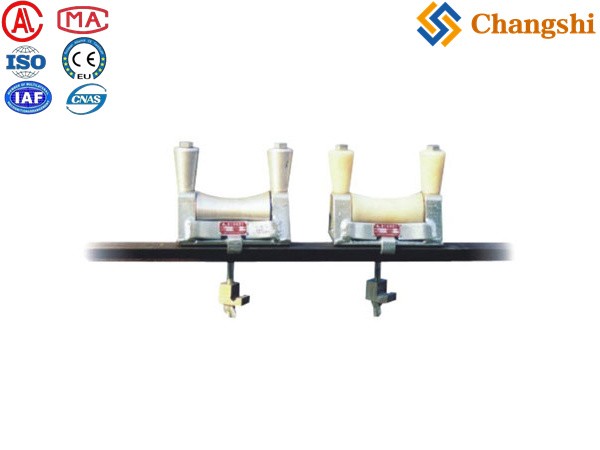

SHL-1A Crossarm-Mounted Tri-Roller Stringing Block
Navigate sharp bends with our SHL-1A crossarm-mounted tri-roller stringing block. Specifically designed for pulling smallbore conductors around a 90° angle, this robust block ensures a smooth, damage-free operation on angle towers and line corners.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
SHL-1A Crossarm-Mounted Tri-Roller Stringing Block: The Safe Solution for Corner Stringing
As a prominent China manufacturer and exporter, Ningbo Changshi Electric Power Machinery Manufacturing Limited is dedicated to providing specialized equipment that addresses the unique challenges of modern power infrastructure. The Model SHL-1A Crossarm-Mounted Tri-Roller Stringing Block is a testament to this specialization. While straight line stringing is a common task, navigating corners and angles requires a purpose-built solution to prevent conductor damage and maintain safety. This block, with its unique tri-roller design, is specifically engineered to safely guide smallbore conductors around bends, making it an indispensable tool for any project involving angle towers and line deviations up to 90°.
The SHL-1A's tri-roller configuration is the key to its superior performance. Instead of a single sheave, three precisely-positioned rollers guide the conductor smoothly through the angle, distributing stress and preventing sharp bends that could damage the conductor. The block is securely mounted to the crossarm, providing a stable and reliable anchor point that ensures a controlled pull. By choosing this specialized tool, you can significantly enhance the safety and efficiency of your corner-stringing operations.
Product Features & Benefits:
-
Tri-Roller Design: The three-roller configuration provides a smooth, gradual guiding path for the conductor, distributing stress and preventing bending damage around corners.
-
Crossarm-Mounted: The block is securely fixed to the crossarm, providing a stable and reliable anchor point for a controlled pulling operation.
-
Specialized for Angles: Engineered to handle angles up to 90°, making it the perfect solution for stringing on angle towers and line deviations.
-
Ideal for Smallbore Conductors: The design is optimized for the safe handling of smallbore conductors, a common requirement on distribution and utility lines.
-
Durable Construction: Built with high-strength materials, the block is designed to withstand a significant working load and the rigors of long-term outdoor use.
Product Applications:
The SHL-1A crossarm-mounted tri-roller stringing block is an essential machine for:
-
Angle Tower Stringing: The primary application for safely pulling conductors around corners where a single sheave block would cause damage.
-
Line Deviation Projects: Ideal for navigating any bend in the line path, ensuring a smooth and controlled stringing process.
-
Smallbore Conductor Installation: Specifically designed for the safe handling of smaller conductors during new line installations and maintenance.
-
Crossarm Mounting Scenarios: An indispensable tool for any overhead line project where a secure, crossarm-mounted block is required.
Technical Data Sheet:
|
|
Rated load (kN) |
Weight (kg) |
remark |
|
10221 |
10 |
2.5 |
Aluminous wheel |
|
10222 |
10 |
1.6 |
Nylon wheel |
·uses :Applied to pull smallbore conductor and maximum application angle iron ∠90
Note: The actual specifications and performance may vary depending on the specific model and customer requirements. Please contact us for detailed technical datasheets for precise information.
Why Choose Ningbo Changshi for Your Stringing Accessories?
Choosing Ningbo Changshi means partnering with an industry leader who is committed to providing a complete suite of high-quality tools and equipment. Our SHL-1A tri-roller stringing block is a prime example of our dedication to providing specialized solutions that directly address on-site challenges, thereby enhancing safety and project efficiency. As your one-stop supplier, we ensure every accessory we provide is engineered to the highest standards, guaranteeing a successful and damage-free project.
Final Summary
The SHL-1A Crossarm-Mounted Tri-Roller Stringing Block is the definitive solution for achieving safe, precise, and damage-free corner stringing. Its unique tri-roller design and secure crossarm mounting make it an indispensable tool for streamlining your OHTL construction, maintenance, and repair operations with superior conductor protection on angle towers.
Solve your corner-stringing challenges with a specialized tri-roller block. Learn more about our SHL-1A stringing block and how it can enhance your operations. Contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to request a detailed quotation and technical specifications tailored to your specific needs!
