Hydraulic Conductor Cable Reel Payout Drum Tension Stand With Disc Tension Brake

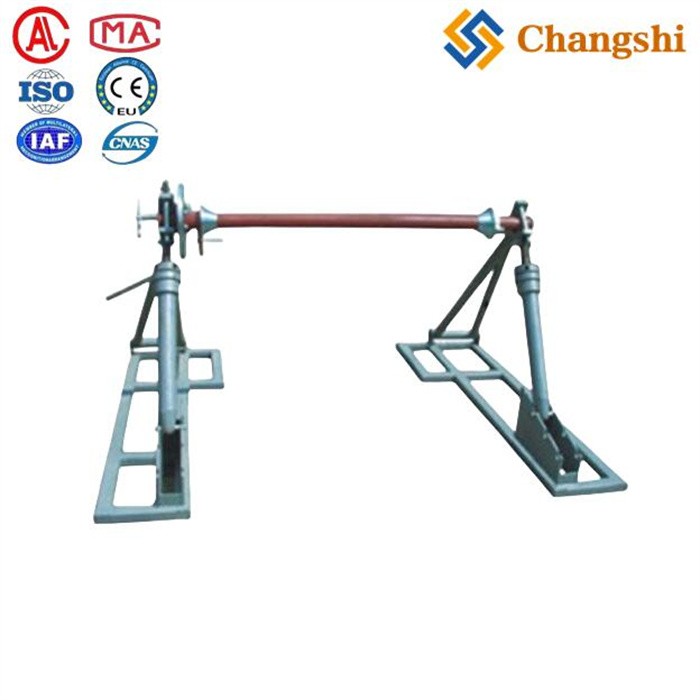

The Integrated Reel Stand with Disc Tension Brake is a heavy-duty cable reel stand designed to support and control cable reels during conductor or earth wire stringing operations. It features an integrated disc brake system that provides adjustable braking torque to control the reel rotation, ensuring smooth payout and preventing uncontrolled unwinding.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The Integrated Reel Stand with Disc Tension Brake is a heavy-duty cable reel stand designed to support and control cable reels during conductor or earth wire stringing operations. It features an integrated disc brake system that provides adjustable braking torque to control the reel rotation, ensuring smooth payout and preventing uncontrolled unwinding.
| Model | Applicable Reel Diameter (mm) | Width of Coil (mm) | Diameter of Axle Hole (mm) | Maximum Weight (kg) | Braking Torque (N·m) | Pay-off Speed (m/min) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| SIPZ3A | 900 – 1600 | ≤1350 | 65 – 100 | 3000 | 1000 | 80 | 200 |
| SIPZ5A | 1600 – 2400 | ≤1350 | 65 – 100 | 5000 | 1000 | 80 | 215 |
| SIPZ-7 | 1800 – 2500 | ≤1700 | 120 | 7000 | 2000 | 80 | 480 |
-
: Provides controlled braking torque (up to 2000 N·m in SIPZ-7) to regulate reel rotation during cable payout.
-

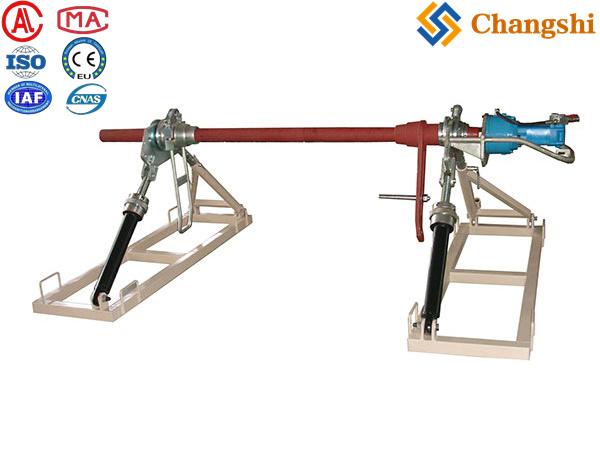

: The reel rotation can be controlled by a hydraulic motor in both directions, driven by a hydraulic tensioner or puller through a long hydraulic hose.
-
: Supports reels weighing up to 7000 kg, suitable for large-diameter and wide cable coils.
-

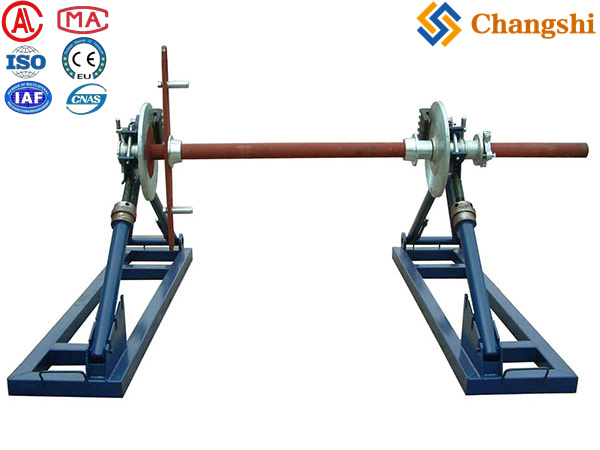

: Can be disassembled into three parts for easier transportation and handling.
-
: Used extensively in conductor or earth wire stringing, mechanical wire laying, and tension stringing operations.
-
: CE and ISO certified, ensuring quality and safety standards.
-
Enables precise control of cable payout speed and tension, reducing cable damage.
-
Supports a wide range of reel sizes and weights, making it versatile for various cable laying projects.
-
Hydraulic control allows for efficient operation in the field.
-
Robust construction ensures durability and long service life.
-
The Integrated Reel Stand with Disc Tension Brake (models SIPZ3A, SIPZ5A, SIPZ-7) is a professional-grade cable reel stand equipped with a hydraulic motor and disc brake system. It supports large cable reels (up to 7 tons), provides adjustable braking torque for safe cable payout, and is widely used in power line stringing and mechanical wire-laying projects. Its modular design facilitates transport and setup on-site.
This product is available from manufacturers like Marshine and Ningbo Huaxiang Dongfang Machinery and Tools, with certifications such as CE and ISO, ensuring reliable performance in demanding cable installation environments.
