Transmission Line Stringing Tools Accessories Sleeve Type Double Hook Turnbuckle
A Sleeve Type Double Hook Turnbuckle (also known as a dual hook turnbuckle) is a mechanical device used for tensioning and adjusting the length of cables, ropes, or wires. It features a central sleeve body with two hooks on either end, allowing for easy attachment and adjustment in various rigging, construction, and cable installation applications.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A Sleeve Type Double Hook Turnbuckle (also known as a dual hook turnbuckle) is a mechanical device used for tensioning and adjusting the length of cables, ropes, or wires. It features a central sleeve body with two hooks on either end, allowing for easy attachment and adjustment in various rigging, construction, and cable installation applications.

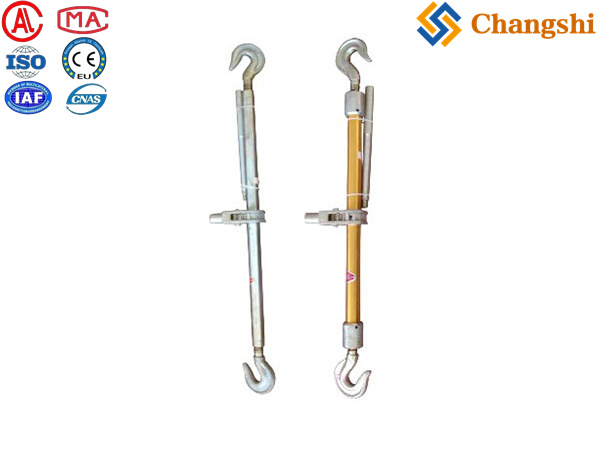

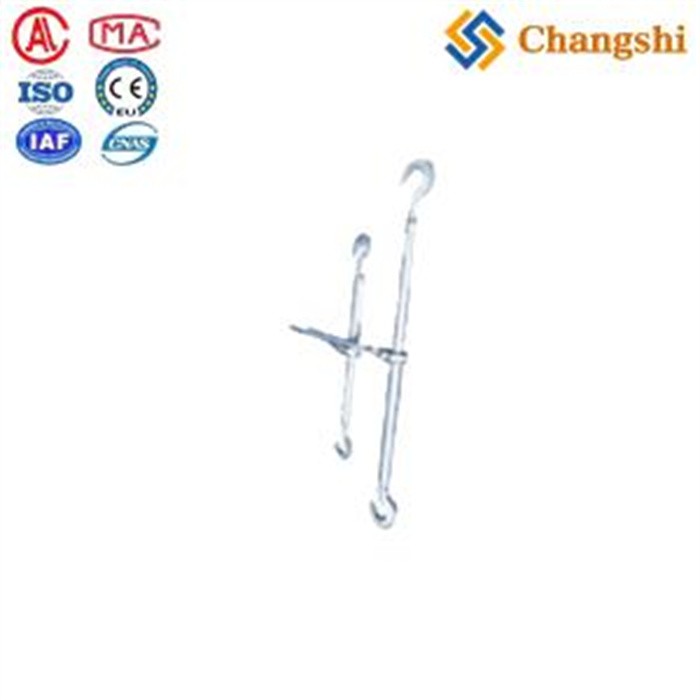

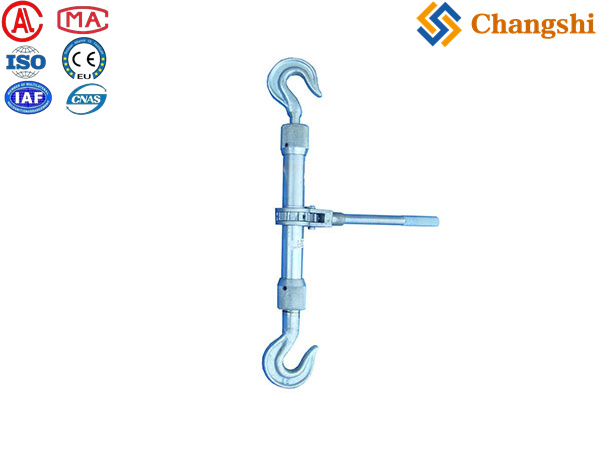

Sleeve type double hook turnbuckle
|
Order number |
Model |
Rated load (kN) |
Maximum center Distance (mm) |
Adjustable Distance (mm) |
Weight (kg) |
|
14151 |
SJST-1 |
10 |
658 |
290 |
3 |
|
14152 |
SJST-2 |
20 |
865 |
370 |
3.2 |
|
14153 |
SJST-3 |
30 |
970 |
430 |
4.5 |
|
14154 |
SJST-5 |
50 |
1127 |
520 |
7.2 |
-
: Consists of a tubular sleeve with two hooks at each end, which can be tightened or loosened by rotating the sleeve to adjust tension or length.
-
: Commonly made from galvanized steel, aluminum, or stainless steel for corrosion resistance and durability.
-
: Available in various rated loads, typically ranging from 10 kN to 50 kN or higher depending on the model.
-
: The adjustable distance varies by model, for example:
-
Model SJST-1: Rated load 10 kN, max center distance 658 mm, adjustable length 290 mm, weight 3 kg.
-
Model SJST-5: Rated load 50 kN, max center distance 1127 mm, adjustable length 520 mm, weight 7.2 kg.
-
-
: Used widely for wire tightening, cable tensioning, structural support, fencing, and rigging tasks where precise adjustment of cable length and tension is required.
-
: Many models come with CE and ISO certifications, ensuring quality and safety standards.
-
-
Easy to install and adjust without specialized tools.
-
Durable and corrosion-resistant materials suitable for indoor and outdoor use.
-
Provides reliable tension control for cables and wires.
-
Versatile for various industrial, construction, and rigging applications.
The Sleeve Type Double Hook Turnbuckle is a robust, adjustable tensioning device featuring a central sleeve and hooks at both ends. It is designed for precise cable or wire tightening with rated loads from 10 kN to 50 kN, made from durable materials like galvanized steel or aluminum, and is widely used in rigging, construction, and cable installation projects.
