Heavy-Duty 7T Hydraulic Conductor Reel Stand: Effortless Lifting Power
Stop struggling with heavy conductor reels! Our 7T hydraulic conductor reel stand makes lifting and dispensing a breeze. Boost your job site safety and efficiency.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video

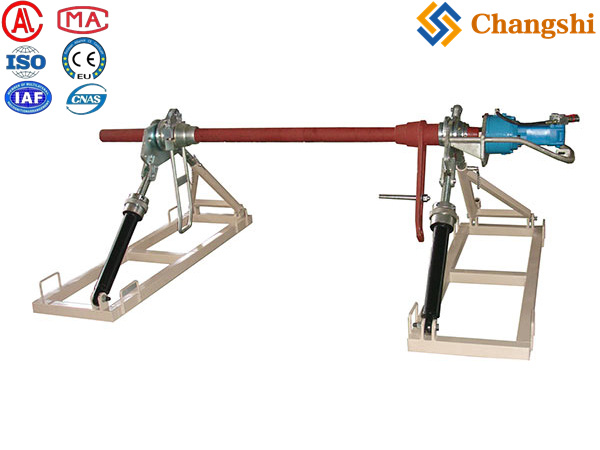

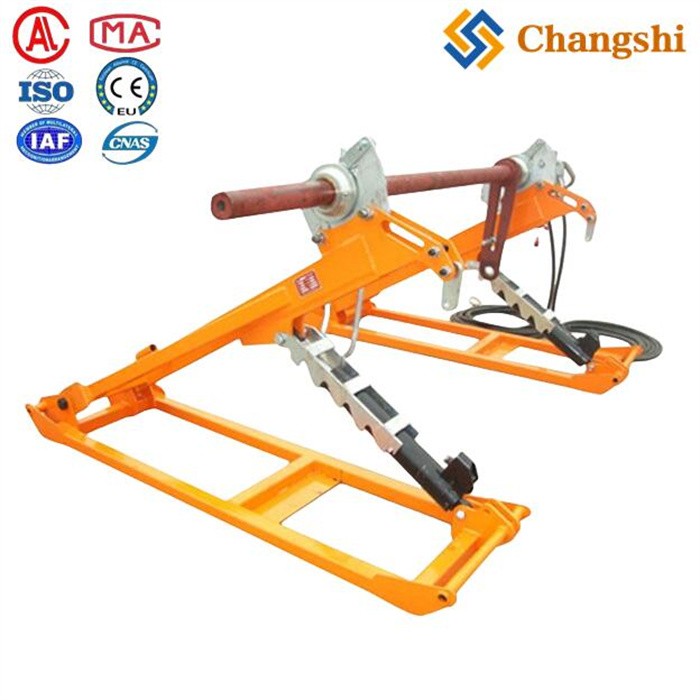

The Heavy-Duty 7T Hydraulic Conductor Reel Stand is a robust, hydraulically operated device designed to lift, hold, and facilitate the controlled payout of heavy cable reels, particularly suited for overhead power transmission line construction and other demanding cable handling applications.
-
: This reel stand can safely lift and support conductor reels weighing up to 7 tons (approximately 14,000 lbs), making it ideal for heavy-duty industrial and utility projects.
-
: Equipped with hydraulic jacks, the stand allows operators to easily raise and lower heavy reels with minimal physical effort, improving safety and reducing labor intensity during reel loading and unloading.
-
: The stand includes mechanical disc brakes (with replaceable brake pads) or optional hydraulic braking systems to control reel rotation and provide adjustable torque for tension control during cable payout. This feature helps prevent uncontrolled unreeling and cable damage.
-
: Built from high-strength steel with a foldable structure for ease of transport, the stand offers durability and stability under heavy loads. The steel shaft is mounted on ball bearings with adjustment wedges to ensure smooth reel rotation and secure positioning.
-
: Suitable for conductor wooden drums or steel reels with diameters typically ranging from about 1000 mm to 2800 mm (approximately 39 to 110 inches), accommodating a wide range of reel sizes used in power transmission line stringing.
-
: Safety latches and locking mechanisms are often included to secure the reel during operation and transport, enhancing workplace safety.
-
: Some models may include features such as lifting eyes, bolt-down flanges for secure installation, and optional wheels or transport compatibility, facilitating movement and positioning on job sites.
-
-
Overhead power transmission line stringing operations where heavy conductor reels must be handled safely and efficiently.
-
Underground cabling projects requiring controlled payout of large and heavy cable reels.
-
Industrial cable handling and storage where heavy-duty lifting and payout control are critical.
| Feature | Description |
|---|---|
| Lifting Capacity | 7,000 kg (7 tons) |
| Suitable Reel Diameter | 1000 mm to 2800 mm (approx. 39" to 110") |
| Braking System | Mechanical disc brakes or hydraulic brakes |
| Construction | Heavy-duty steel, foldable for transport |
| Lifting Mechanism | Hydraulic jacks |
| Weight | Approx. 280 kg (varies by model) |
The Heavy-Duty 7T Hydraulic Conductor Reel Stand offers effortless lifting power through its hydraulic system, enabling safe and efficient handling of large, heavy cable reels. Its robust steel construction, braking control, and adjustable design make it an essential tool for overhead power transmission line stringing and other heavy cable installation tasks. This equipment enhances operational efficiency, reduces injury risk, and provides precise control over cable payout during installation.
