Three Tons Dual-Bullwheel Powered Winch For Overhead Power Transmission Lines
A Three Tons Dual-Bullwheel Powered Winch is a robust, powered winching device designed primarily for overhead power transmission and distribution line work, including erecting pole pylons, laying cables, hoisting mechanical equipment, and hauling and stringing conductors.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A Three Tons Dual-Bullwheel Powered Winch is a robust, powered winching device designed primarily for overhead power transmission and distribution line work, including erecting pole pylons, laying cables, hoisting mechanical equipment, and hauling and stringing conductors.
-
: 3 tons (approximately 30 kN pull force).
-
: This structure reduces damage to the steel wire rope by distributing the load more evenly and minimizing rope wear during operation.
-

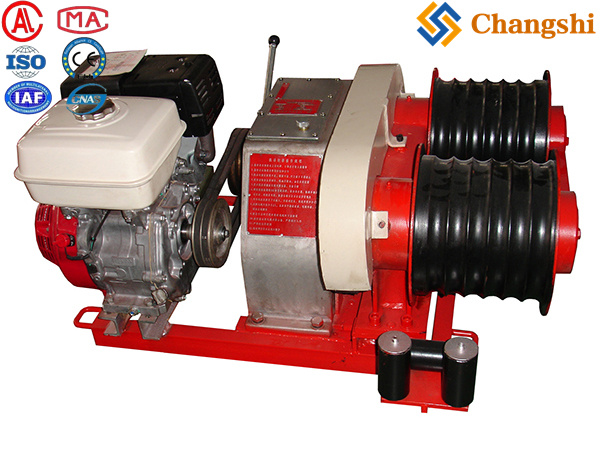

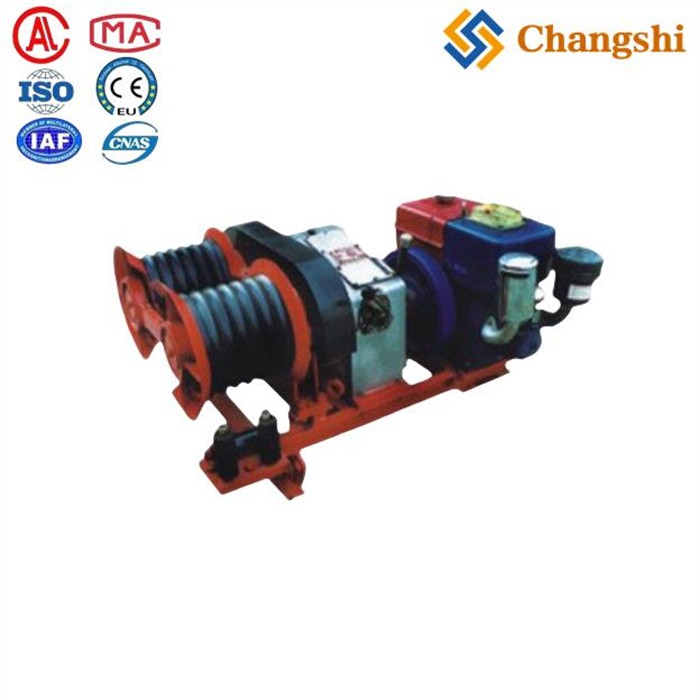

: Typically powered by a diesel engine (e.g., Diesel R175A, 6 hp) or gasoline engine (e.g., Honda GX270, 9 hp).
-
:
| Speed Mode | Pull Force (kN) | Speed (m/min) |
|---|---|---|
| Slow | 30 | 5.7 – 7.43 |
| Medium | 18.9 – 19.2 | 9.1 – 11.8 |
| Quick | 7.2 – 7.6 | 22.7 – 31.4 |
| Reverse | - | 6.5 – 8.4 |
-
: Approximately 1000×670×600 mm.
-
: Between 270 kg and 305 kg depending on the model.
-
: 230 mm.
-
: Suitable for erecting pole pylons, laying cables, hoisting equipment, and conductor stringing in overhead power line construction.
-
: CE, ISO certified, ensuring compliance with quality and safety standards.
-
-
The dual bullwheel system significantly reduces wire rope damage, extending rope life and improving safety.
-
Versatile use in various transmission line tasks, including heavy lifting and pulling.
-
Portable enough for field use while providing high power output.
-
Available with different engine options to suit operational preferences.
-
Some manufacturers offer customization and a range of supporting transmission line tools such as tubular gin poles, cable pullers, wire rope pulley blocks, and hoisting tackles.
-
These winches comply with international standards and are widely used globally in overhead transmission line projects.
| Feature | Detail |
|---|---|
| Load Capacity | 3 tons (approx. 30 kN) |
| Power Source | Diesel (6 hp) or Gasoline (9 hp) |
| Dual Bullwheel Design | Yes, reduces wire rope damage |
| Speed (m/min) | 5.7 – 31.4 (varies by speed mode) |
| Weight | 270 – 305 kg |
| Dimensions (mm) | 1000×670×600 |
| Applications | Pole erection, cable laying, hoisting, conductor stringing |
| Certifications | CE, ISO |
This winch is a specialized, powerful tool essential for efficient and safe overhead power transmission line construction and maintenance.
