Manual Winch Aluminum Alloy Tubular Tripod Gin Pole for Power Transmission Line
An Aluminum Alloy Tubular Tripod Gin Pole with Manual Winch is a lightweight, high-strength lifting device used primarily in the construction and erection of transmission and distribution poles and towers. It facilitates hoisting and positioning of poles or components safely and efficiently.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
An Aluminum Alloy Tubular Tripod Gin Pole with Manual Winch is a lightweight, high-strength lifting device used primarily in the construction and erection of transmission and distribution poles and towers. It facilitates hoisting and positioning of poles or components safely and efficiently.
-
: Made of high-strength aluminum alloy tubes for light weight and durability; steel parts are typically galvanized for corrosion resistance.
-

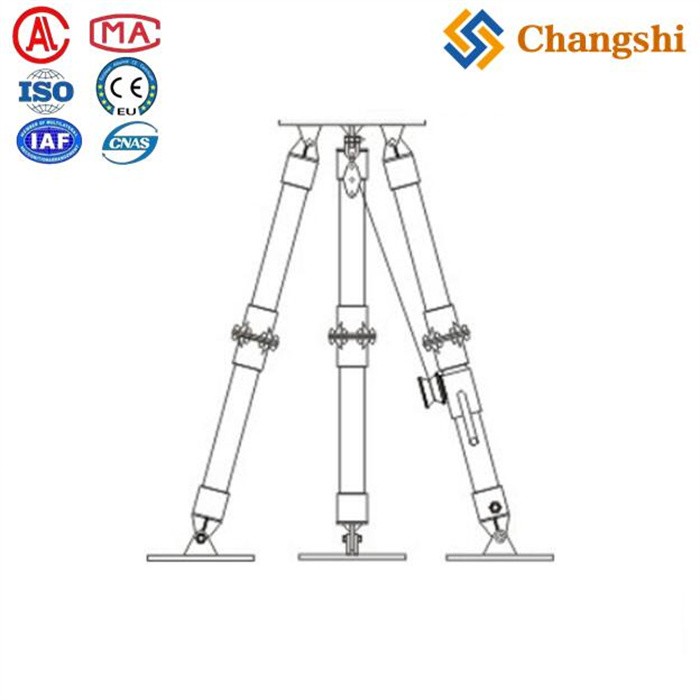

: Tripod structure provides stability during lifting operations. The tubular design ensures strength while minimizing weight.
-
: Equipped with a hand-operated winch capable of delivering a maximum output force of about 5 kN, allowing controlled lifting and lowering of loads.
-
: Typically designed with a safety factor of 2.5, ensuring reliability under load.
-
: Allowable vertical load ranges from approximately 22 kN to 30 kN depending on the model and length.
-
:
-
Length options: commonly 7 m or 9 m.
-
Base span (footprint) around 4 to 4.8 meters for stability.
-
Weight: about 8 kg per meter.
-
-
: Used for erecting small poles, towers, or lifting components in line construction projects, especially in power transmission and distribution.
-
:
-
Recommended to use 7 mm steel wire rope with a working length about 9 times the gin pole length.
-

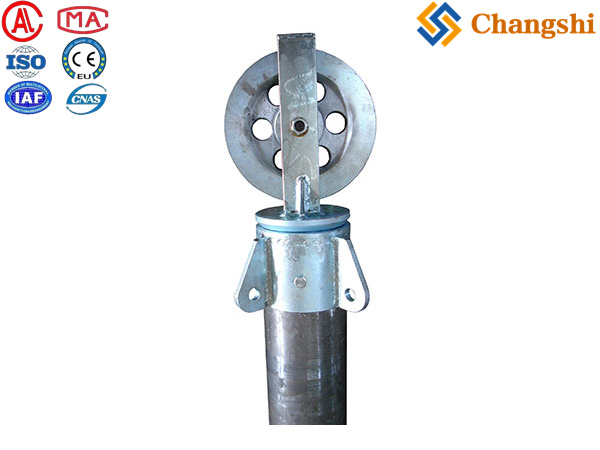

The head of the pole often comes with a fixed tri-pulley for guiding wire ropes.
-
Suitable for use with iron hoisting blocks (hook type) to increase lifting efficiency.
-
-
| Model | Length (m) | Base Span (m) | Allowable Vertical Load (kN) | Weight (kg/m) | Max Winch Output Force (kN) |
|---|---|---|---|---|---|
| LBGS120-7 | 7 | 4 | 30 | 8 | 5 |
| LBGS120-9 | 9 | 4.8 | 22 | 8 | 5 |
This aluminum alloy tubular tripod gin pole with manual winch is a robust, portable, and efficient tool widely used in power line construction for safely erecting poles and towers. Its lightweight aluminum construction combined with a manual winch provides ease of operation, while the tripod design ensures stability and safety during lifting tasks.
