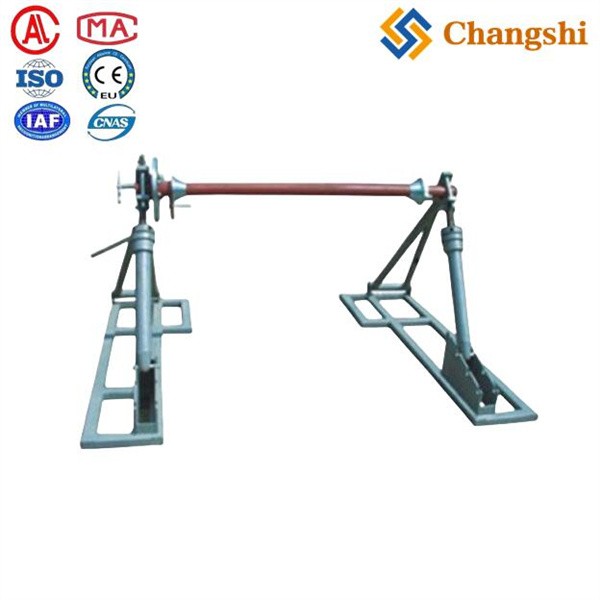

Integrated Reel Stand with Disc Tension Brake: Essential Control for Smooth Cable & Conductor Payout

On behalf of Ningbo Changshi Electric Power Machinery Manufacturing Limited, a prominent China manufacturer and global exporter specializing in comprehensive tools and equipment for power lines, substations, electrical construction, and maintenance, we are pleased to introduce our efficient and robust Integrated Reel Stand with Disc Tension Brake. This indispensable piece of equipment is meticulously designed to securely support heavy cable and conductor reels, allowing for smooth, controlled, and consistent payout during overhead transmission line (OHTL) stringing and underground cable laying operations.

The integrated disc tension brake is the heart of this system, providing adjustable and reliable back tension to prevent reels from over-spinning or creating slack. This critical feature ensures that cables and conductors are unwound at a steady, controlled rate, significantly reducing the risk of tangles, kinks, or damage to valuable materials. Whether handling power cables, communication lines, or ground wires, our Integrated Reel Stand offers a foundational solution for maintaining line integrity, enhancing operational safety, and optimizing efficiency on diverse construction sites worldwide. It's a testament to our commitment to providing comprehensive, one-stop solutions for every aspect of power infrastructure development.

Product Features & Benefits:

The Ningbo Changshi Integrated Reel Stand with Disc Tension Brake is engineered for ease of use, durability, and reliable performance in controlling cable and conductor payout.

• Integrated Disc Tension Brake: The core feature, providing adjustable friction to maintain consistent back tension. Disc brakes are known for their precise control, excellent heat dissipation, and long service life, ensuring smooth unwinding without over-spooling.

• Robust & Stable Construction: Built from high-strength steel, the stand provides a solid and stable platform for even the heaviest cable reels. Its durable frame ensures longevity and reliable performance in demanding field conditions.

• Universal Reel Compatibility: Designed with adjustable arms or spindle configurations to accommodate a wide range of reel sizes and weights, offering versatility for various cable and conductor types.

• Smooth & Controlled Payout: The combination of a sturdy stand and an effective disc brake ensures that the cable or conductor unwinds at a steady, controlled rate, preventing sudden jerks, slack, or material damage.

• Easy Tension Adjustment: Features a straightforward mechanism (e.g., handwheel, lever) for operators to quickly and accurately adjust the braking force, allowing precise control over back tension to match specific project requirements.

• Enhanced Safety Features: Designed with safety in mind, including stable base designs, secure reel locking mechanisms, and robust braking to prevent uncontrolled payout, enhancing worker safety on site.

• Portability & Ease of Setup: While robust, the design prioritizes practical transport and quick setup, allowing for efficient deployment across multiple job sites. Skid-mounted options are common for stability.

• Minimal Maintenance: The disc brake system is generally low-maintenance, requiring minimal attention beyond routine checks, ensuring high uptime and reduced operational costs.

Product Applications:

Our Integrated Reel Stand with Disc Tension Brake is an essential tool for:

• Overhead transmission line (OHTL) Conductor Payout: Providing controlled back tension for power conductors, OPGW (Optical Ground Wire), and shield wires during stringing operations.

• underground cable laying: Managing the controlled payout of power cables, communication cables, and other heavy lines from drums for trenching or conduit installation.

• Pilot Rope & Pulling Rope Management: Ensuring smooth, tensioned unwinding of pilot ropes that precede heavier conductor pulls.

• Distribution Line Construction: Ideal for controlled payout of distribution conductors and service drops in urban and rural areas.

• Substation & Industrial Wiring: Used for managing the payout of large electrical cables and wires within substations or industrial facilities.

• Any Application Requiring Controlled Reel Unwinding: Versatile enough for any scenario where preventing over-spooling and maintaining consistent payout tension from a reel is crucial.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited or Partner With Us?

At Ningbo Changshi, we offer comprehensive one-stop supply and services for both overhead transmission line wire cable conductor tension stringing equipment and underground cable laying equipment. Our unwavering commitment to global excellence is reflected in:

1. Fundamental Equipment Excellence: As a prominent China manufacturer, we don't just build complex machinery; we excel in designing and producing the foundational, essential equipment that forms the backbone of efficient power line projects. Our Integrated Reel Stand is a testament to this commitment to quality and reliability at every level.

2. Trusted Global Exporter & Reliable Support: We have meticulously built a formidable reputation as a trusted global exporter, consistently providing robust equipment and comprehensive, proactive after-sales support worldwide. Our dedicated international team ensures seamless logistics, punctual delivery, and highly responsive technical assistance, guaranteeing uninterrupted project flow.

3. Comprehensive Integrated Solutions: From advanced Tensioners and pullers to essential Reel Stands and a full array of overhead and underground tools, our broad product range allows you to consolidate your procurement with a single, highly reliable partner. This integrated approach simplifies procurement and optimizes overall project efficiency.

4. Practical Innovation for Field Needs: We continuously focus on practical innovation that directly addresses field challenges. Our integrated disc tension brake ensures superior control, directly contributing to conductor longevity and operational safety on site, demonstrating our understanding of real-world project demands.

5. Strategic Client Partnership: We firmly believe in forging strong, enduring strategic partnerships. Our highly experienced experts work intimately with you to understand your specific equipment needs, offering reliable solutions and proactive support to ensure your projects are completed efficiently and safely. We are your dedicated partner in building robust power infrastructure.

Technical Data Sheet: Integrated Reel Stand with Disc Tension Brake

Note: Specifications are approximate and will vary based on the specific model's capacity and configuration, as well as continuous product improvements. For the most current and precise technical data, or to discuss customized solutions for your specific reel and tensioning requirements, please contact Ningbo Changshi Electric Power Machinery Manufacturing Limited directly.

Final Summary:

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we provide comprehensive, reliable, and innovative solutions for every stage of power line and cable installation. Our Integrated Reel Stand with Disc Tension Brake is an indispensable tool that ensures controlled, damage-free payout of your valuable conductors and cables, forming a critical part of an efficient and safe stringing operation.

Enhance the precision and safety of your cable and conductor payout operations with Ningbo Changshi's Integrated Reel Stand with Disc Tension Brake. Contact our expert team today to discuss your specific reel management needs, request a comprehensive quote, or explore how this essential equipment can optimize your projects. Let Ningbo Changshi be your trusted partner for superior performance and success in power infrastructure construction worldwide!
