Integrated Braking Systems for Precise Tensioning: The Foundation of Flawless Conductor & cable installation

On behalf of Ningbo Changshi Electric Power Machinery Manufacturing Limited, a prominent China manufacturer and global exporter specializing in comprehensive tools and equipment for power lines, substations, electrical construction, and maintenance, we are pleased to introduce our cutting-edge Integrated Braking Systems for Precise Tensioning. While often unseen, the braking system is the absolute core of any tensioning equipment, directly dictating the quality, consistency, and safety of conductor and cable installation. Our advanced braking systems are engineered to provide unyielding, precise, and finely controlled back tension, ensuring optimal payout speed and unwavering line control for all overhead transmission line (OHTL) and underground cable laying projects.

These aren't just brakes; they are meticulously designed systems capable of seamless integration into various OHTLstringingequipment.com/Hydraulic-Conductor-Tensioners.html target='_blank'>Tensioners, pullers, and payout reels. They leverage state-of-the-art hydraulic, pneumatic, or advanced electro-mechanical principles (or a combination thereof, depending on application) to deliver unparalleled smoothness and accuracy in tension application. The paramount importance of precise braking lies in its ability to prevent conductor damage, eliminate dangerous slack, maintain exact sag values, and ensure the safety of personnel and equipment. For demanding projects with high-value conductors and critical specifications, Ningbo Changshi's Integrated Braking Systems are the essential foundation for achieving flawless, efficient, and secure stringing operations.

Product Features & Benefits:

Ningbo Changshi's Integrated Braking Systems are engineered for superior control, reliability, and enhanced safety across a diverse range of tensioning applications.

• Unwavering Precision Tension Control: Delivers highly accurate and stable back tension, preventing fluctuations that can lead to conductor damage, uneven sag, or compromised line integrity. This is achieved through finely tuned control mechanisms.

• Advanced Braking Technologies: Utilizes sophisticated braking principles (e.g., closed-loop hydraulic, multi-disc pneumatic, regenerative electro-mechanical) optimized for continuous duty, consistent performance, and rapid response to load changes.

• Seamless Integration Design: Engineered for straightforward integration into new tensioning equipment or as a high-performance upgrade to existing compatible systems, ensuring optimal synergy with the host machine.

• Enhanced Conductor & Cable Protection: Provides smooth, non-jerking resistance, significantly reducing the risk of abrasions, kinking, overstretching, or other forms of damage to valuable conductors and cables during payout.

• Superior Load Holding Capability: Designed with robust, fail-safe mechanisms that securely hold the conductor or cable under tension, even during planned stops or unexpected power interruptions, ensuring paramount safety on site.

• High Thermal Dissipation: Features advanced cooling designs (e.g., oil-cooled, finned radiators) to efficiently manage heat generated during continuous braking, ensuring consistent performance and preventing fade over extended operations.

• Durability & Longevity: Constructed from high-grade, wear-resistant materials and precision-machined components, ensuring exceptional durability, extended service life, and minimal maintenance requirements even in harsh environments.

• Scalable Performance: Available in various configurations and torque capacities to match a wide range of tensioning requirements, from light fiber optic cables to the heaviest UHV conductors.

• Digital Compatibility: Designed to interface with modern digital control systems, allowing for precise electronic adjustment and monitoring of braking force.

Product Applications:

Our Integrated Braking Systems are essential for any equipment requiring precise back tension and controlled payout:

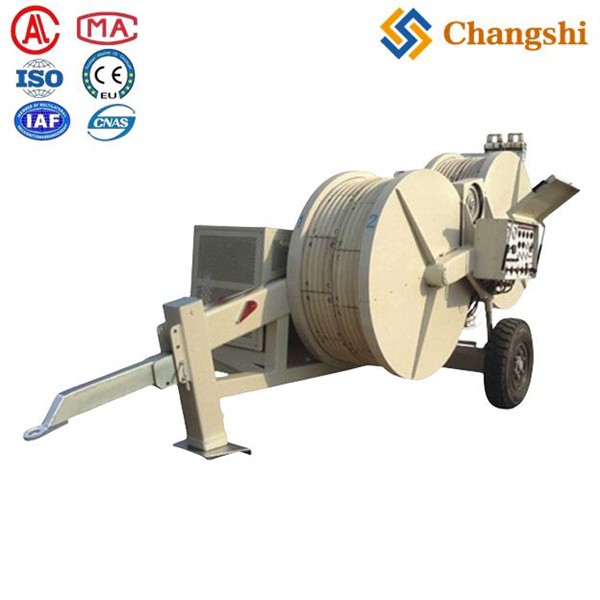

• Hydraulic Conductor Tensioners (All Capacities): The core component that enables precise tension control in our own and other manufacturers' hydraulic tensioners for OHTL construction.

• Overhead cable stringing Equipment: Crucial for accurately managing the payout of power conductors, OPGW (Optical Ground Wire), and communication cables on new or existing lines.

• underground cable laying Equipment: Providing controlled back tension for large cable reels during underground cable installation, preventing overruns and ensuring smooth deployment.

• Pilot Rope Pulling Systems: Ensures smooth and consistent payout of pilot ropes, critical for subsequent heavy conductor pulling.

• Specialized Tensioning Systems: Applicable in custom or highly specialized industrial applications requiring precise material payout under tension.

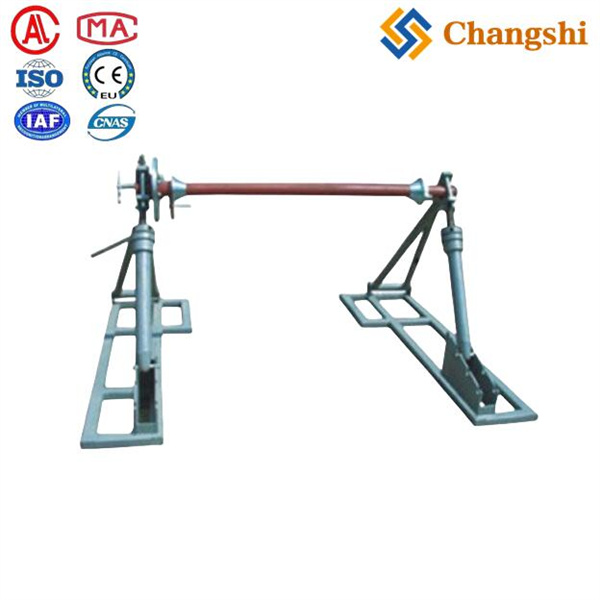

• Reel Stands & Payout Machines: Essential for maintaining controlled back tension on conductor/cable reels to prevent overspooling or uncontrolled payout.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited or Partner With Us?

At Ningbo Changshi, we offer comprehensive one-stop supply and services for both overhead transmission line wire cable conductor tension stringing equipment and underground cable laying equipment. Our unwavering commitment to global excellence is reflected in:

1. Core Expertise in Tensioning Technology: As a prominent China manufacturer, we possess deep, specialized knowledge in the physics and engineering of tension control. Our Integrated Braking Systems are born from this expertise, representing a foundational technology for superior stringing performance.

2. Trusted Global Exporter & Robust Support: We have meticulously built a formidable reputation as a trusted global exporter, consistently providing robust equipment and comprehensive, proactive after-sales support worldwide. Our dedicated international team ensures seamless logistics, punctual delivery, and highly responsive technical assistance, guaranteeing uninterrupted project flow.

3. Holistic Solutions for Power Infrastructure: From the core braking systems to complete tensioners, pullers, and a full range of overhead and underground tools, our broad product range allows you to consolidate your procurement with a single, highly reliable partner, simplifying logistics and maximizing overall project efficiency.

4. Innovation Driving Performance & Safety: We continuously invest substantially in cutting-edge research and development. Our braking systems integrate the latest advancements in materials science, fluid dynamics, and control electronics to deliver unmatched performance, enhance operational safety, and protect your valuable assets.

5. Strategic Partnership for Optimized Projects: We firmly believe in forging strong, enduring strategic partnerships. Our highly experienced engineers work intimately with you to deeply understand your specific tensioning challenges, offering tailored braking system solutions or integration advice to optimize your existing or new equipment. We are your dedicated partner in achieving the highest standards of precision and safety.

Technical Data Sheet: Integrated Braking Systems for Precise Tensioning

(Note: This technical data sheet describes the features of the braking system itself, adaptable for various capacities.)

Note: Specifications are general for Ningbo Changshi's range of integrated braking systems. Specific performance characteristics will vary significantly based on the exact braking technology, the required tension capacity, and the host equipment it is integrated into. For detailed technical specifications or to discuss custom braking solutions for your specific equipment, please contact Ningbo Changshi Electric Power Machinery Manufacturing Limited directly.

Final Summary:

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that the reliability and safety of your power line projects hinge on precise tension control. Our Integrated Braking Systems are the unseen heroes, providing the foundational technology for superior back tension management, conductor protection, and operational excellence in all your stringing and cable laying endeavors.

Elevate the performance and safety of your existing or new tensioning equipment with Ningbo Changshi's advanced Integrated Braking Systems for Precise Tensioning. Contact our expert team today to discuss your specific integration needs, explore our range of braking solutions, or receive a customized quote. Let Ningbo Changshi be your strategic partner in achieving unparalleled control, efficiency, and success on every power infrastructure project worldwide!
