Hexagon Compression Die Sets for Crimping Tools

Our hexagon compression die sets are precision-engineered for creating secure, professional-grade crimps on conductors and earthwires. Designed for use with hydraulic crimpers, these durable die sets ensure perfect, reliable connections every time.

  • Transmission Line Wire Cable Conductor Tension Stringing Equipment
  • Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
  • Tools For Power Lines,Substation,Electrical Construction & Maintenance
  • Electric Power Transmission Distribution Line Construction Machine Tools
  • Overhead Power Transmission Distribution Line Repair Hardware Fittings
  • Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
  • Information
  • Video

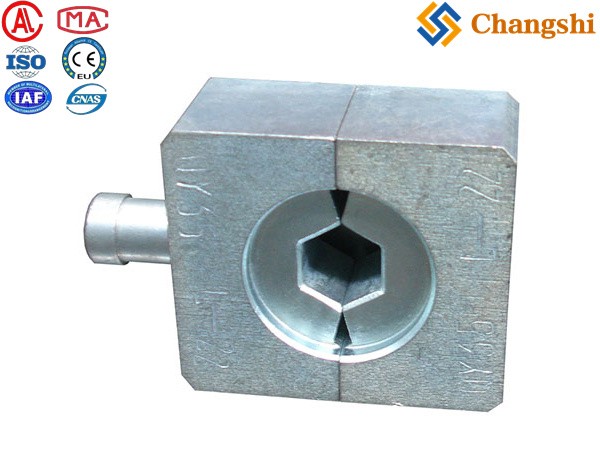

Hexagon Compression Die Sets: The Precision Core of Secure Electrical Connections

As a prominent China manufacturer and exporter, Ningbo Changshi Electric Power Machinery Manufacturing Limited is dedicated to providing high-quality components that are the heart of reliable electrical construction. Our Hexagon Compression Die Sets are a perfect example of this. These precision-engineered "die sets" are the essential accessories for our hydraulic crimping tools, designed to create a strong, standardized, and permanent crimp. The "Hexagon compression" shape is an industry-standard for its ability to evenly distribute force and create a secure connection on a variety of materials. Specifically designed for "conductor /earthwire," these die sets ensure that every crimp is a perfect fit, preventing dangerous faults and failures.

Our hexagon compression die sets are meticulously crafted from high-strength tool steel, guaranteeing durability and a long service life under the immense pressure of hydraulic compression. Available in a wide range of sizes, these sets provide the versatility needed to handle various conductor and earthwire diameters. When used with our Hydraulic Compressors, these dies create a seamless, high-quality crimp that meets professional standards, ensuring the longevity and safety of the power line.

Product Features & Benefits:

  • Precision Hexagon Crimp Shape: The primary benefit is the hexagon crimp shape, which provides a strong, standardized, and secure connection by evenly distributing force.

  • Versatile Sizing: Our die sets come in a wide range of sizes, providing the flexibility to work with different conductor and earthwire diameters, from small to large.

  • Durable, High-Strength Material: Crafted from high-strength tool steel, the die sets are built to withstand immense compression forces without deforming, ensuring a long service life.

  • Seamless Compatibility: These die sets are designed to perfectly fit our Hydraulic Compressors, ensuring a complete and reliable system for all your crimping needs.

  • Enhances Connection Reliability: Using the correct die set for the job is crucial for creating a professional-grade connection that will not fail, ensuring the safety and integrity of the power line.

Product Applications:

The hexagon compression die sets are an essential component for:

  • Conductor Termination & Splicing: The primary application for crimping connectors and terminals onto conductors in overhead lines.

  • Earthwire Connections: Ideal for creating secure and reliable compression connections on earthwires.

  • Hydraulic Crimping Tools: A critical component for a wide range of tasks involving the compression of terminals using hydraulic crimpers.

  • Electrical Construction & Maintenance: A valuable tool for any electrical project requiring professional-grade compression connections.

Technical Data Sheet:

Order number

Model of matched compressor

Serial specification of compression die sets

16121

QY-25

Cupreous terminators:16-240 mm2

16122

QY-35

L-16.18.20.22.24.26.30.32.34.36

Cupreous terminators:16-500 mm2

16123

QY-65

L-26,28.30.32.34.36.38.40.45.50

G-12.14.16.18.20.22.24.26

Cupreous terminators:16-800mm2

16124

QY-125

L-26.28.30.32.34.36.38.40.45.50.52.55.60

G-12.14.16.18.20.22.24.26

Cupreous terminators:16-800 mm2

16125

QY-200

L-26.28.30.32.34.36.38.40.45.50.52.55.60

65.70.75.80

G-12.14.16.18.20.22.24.26.28.30.32

Cupreous terminators:16-800mm2

·Notes :the specification of die sets is steel (G)or aluminous (L)the outside diameter of compression joint tube or cupreous section area ,commonly choose the specification of aluminous is priority cupreous .the exceptional specification can be customized .

Note: The actual specifications and performance may vary depending on the specific size and model. Please contact us for detailed technical datasheets for precise information.

Why Choose Ningbo Changshi for Your Stringing Equipment?

Choosing Ningbo Changshi means partnering with an industry leader who is committed to providing a comprehensive suite of high-quality tools and equipment. Our hexagon compression die sets are a prime example of our dedication to providing specialized, innovative solutions that ensure the safety, efficiency, and integrity of your projects. As your one-stop supplier, we ensure every component is engineered to the highest standards, guaranteeing a successful and safe project.


Final Summary

The Hexagon Compression Die Sets are the definitive solution for achieving safe, durable, and exceptionally efficient electrical connections. Their precision hexagon shape and durable construction make them an indispensable component for streamlining your OHTL construction, maintenance, and repair operations with superior crimping force and reliability.

Create secure, professional-grade electrical connections with our superior hexagon compression die sets. Learn more about our products and how they can benefit your projects. Contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to request a detailed quotation and technical specifications tailored to your specific needs!
