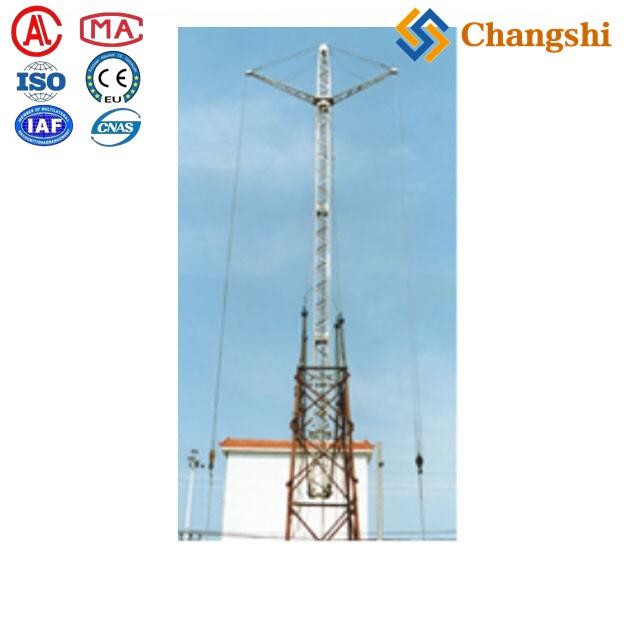

Double Frame Aluminum Alloy Inner-Suspend Swivel Gin Pole For Transmission Line

The Model LBXH-10 aluminum alloy inner-suspended swivel gin pole with double frame is a type of high-strength, lightweight aluminum alloy gin pole designed for erecting poles and towers in transmission line construction.

Key Features and Specifications:

• Material: High-strength aluminum alloy, ensuring a combination of light weight and durability.

• Design: Inner-suspended swivel gin pole with a double frame structure, providing enhanced stability and flexibility during lifting and erection operations.

• Load Capacity: Typically around 25 kN carrying capacity, suitable for medium to heavy pole erection tasks.

• Dimensions: Outer diameter approximately 150 mm; length configuration often includes segments such as 4+3+3 meters or similar, totaling around 10 meters.

• Weight: Approximately 150 kg, balancing portability and strength.

• Safety Factor: Usually designed with a safety factor of 2.5, ensuring reliability and safety during use.

• Usage: Primarily used for erecting transmission poles and lattice towers, especially in power line construction.

• Additional Features:

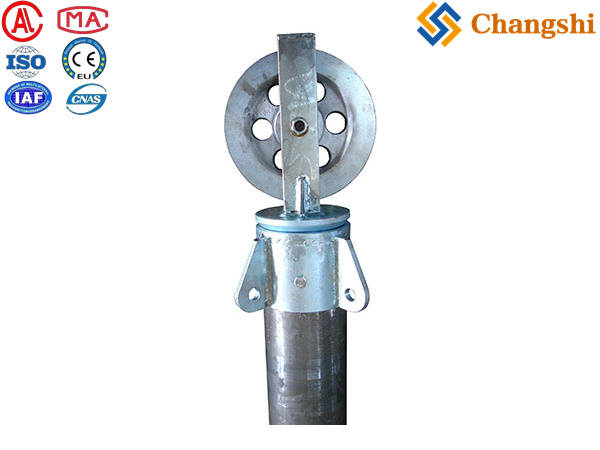

  • Swivel mechanism allows for easier maneuvering and positioning of poles.

  • Double frame design enhances structural rigidity and load distribution.

  • Galvanized steel parts for corrosion resistance.

  • Compatible with standard wire ropes and hoisting equipment.

  •

Summary Table (Based on Similar Models LB-10 Series):

This model is typically supplied by manufacturers specializing in transmission line erection equipment, such as those in China, with quality control and testing to ensure safety and performance.
