The Aluminum Alloy Tubular A-Shape Gin Pole with Manual Winch is a specialized lifting tool primarily used for erecting small single poles or lifting moderate weights in transmission and distribution line construction. Here are the key features and specifications based on the detailed information from multiple sources:
-
: Made from high-strength aluminum alloy tubes, with galvanized steel parts for durability and corrosion resistance.
-

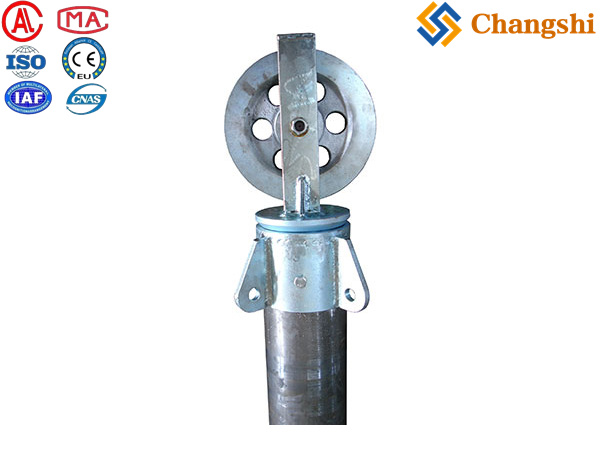

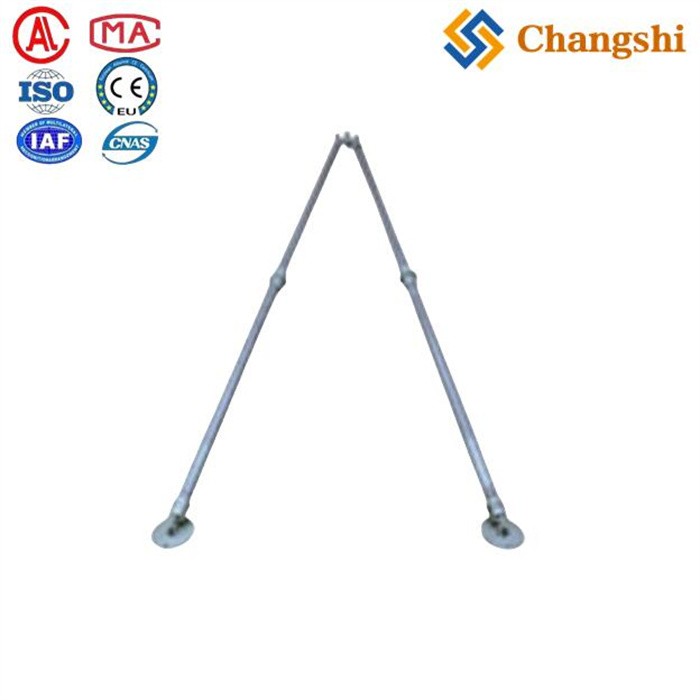

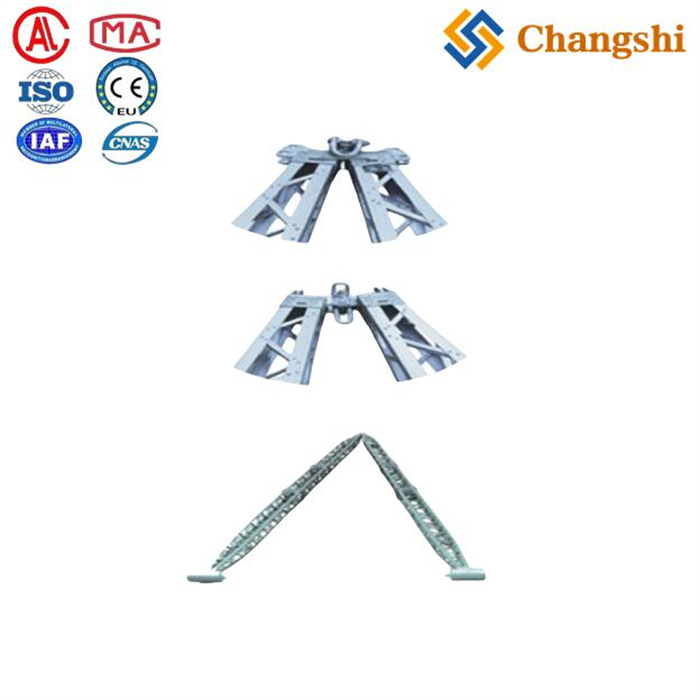

: Tubular A-shape structure with a fixed style head part mounted with a tri-pulley system for efficient lifting.
-
: Equipped with a hand crank winch that provides a maximum output force of 5 kN.
-
: The gin pole has a safety factor of 2.5, ensuring reliable and safe operation.
-
: Recommended use of 7mm steel wire rope, with a workable length up to 9 times the length of the gin pole.
-
: Iron hoisting blocks (hook type) are recommended for use with the gin pole.
-
-
Ideal for small pole erection in transmission line construction.
-
Suitable for lifting light to moderate weight components in line construction.
| Model | Base Stroke (m) | Allowable Vertical Load without Winch (kN) | Applicable Wire Pole Length (m) | Weight (kg/m) | Maximum Length (m) | Maximum Weight (kg) |
|---|---|---|---|---|---|---|
| LBGR100J-6 | 2.1 | 18 | 9 | 5.5 | 6 | 600-720 |
| LBGR120J-6 | 2.1 | 30 | 9 | 7.5 | 6 | 1050-1280 |
| LBGR150J-8 | 2.8 | 31 | 13 | 8 | 8 | 1100-1500 |
(These values vary by model and configuration, including options for hoisting directly or using double/triple sheave blocks.)
-
The head part of the gin pole is inverted, which should be noted when ordering.
-
The gin pole is designed to be lightweight yet strong, with weights ranging from about 5.5 to 8 kg per meter depending on the model.
-
It is used worldwide and manufactured according to ISO 9001:2008 standards, with CE and ISO certifications available.
-
The product is customizable to meet specific technical requirements.
The Aluminum Alloy Tubular A-Shape Gin Pole with Manual Winch is a robust, lightweight, and safe lifting device designed for transmission line work, offering a manual winch with a 5 kN output force, a tri-pulley head, and a high safety factor of 2.5. It supports various pole sizes and weights, making it suitable for small pole erection and lifting moderate loads in line construction projects.
