9 Ton Hydraulic Conductor Puller for Heavy-Duty OHTL Stringing

Power your large-scale projects with our 9-ton hydraulic conductor puller, engineered for heavy-duty overhead transmission line (OHTL) stringing. Reliable solution from a leading China manufacturer.

Product Name:Transmission Line Wire Cable Conductor Tension Stringing Equipment
Keywords:Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
Function:Tools For Power Lines,Substation,Electrical Construction & Maintenance
Category:Electric Power Transmission Distribution Line Construction Machine Tools
Usage:Overhead Power Transmission Distribution Line Repair Hardware Fittings
Relatives :Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories

Request a Quote

Information
Video

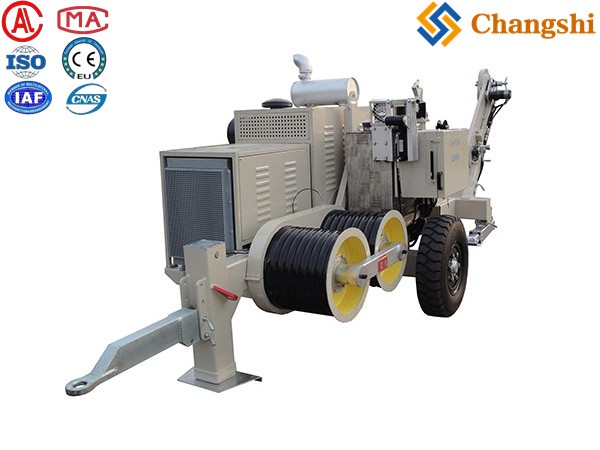

9 Ton Hydraulic OHTLstringingequipment.com/Hydraulic-Conductor-Pullers.html target='_blank'>Conductor Puller: Powering Large-Scale OHTL Stringing Projects

As a prominent China manufacturer and global exporter specializing in robust tools and equipment for power lines, substations, electrical construction, and maintenance, [Your Company Name] is proud to introduce our high-capacity 9 Ton Hydraulic Conductor Puller. This formidable machine is specifically engineered to meet the rigorous demands of large-scale and heavy-duty overhead transmission line (OHTL) stringing operations, making it an indispensable asset for critical infrastructure projects worldwide.

Designed for superior strength and unwavering reliability, our 9 Ton Hydraulic Conductor Puller delivers an impressive pulling force, ensuring smooth, precise, and safe handling of larger or multiple conductors over long spans and challenging terrains. Its advanced hydraulic system provides meticulous control, crucial for protecting valuable wire and cables during installation and re-conductoring, thereby optimizing efficiency and minimizing risks on the job site.

Key Features & Benefits:

Exceptional 9-Ton Pulling Capacity: Offers a formidable 90 kN (9 Ton) of continuous pulling force, making it ideal for the heaviest conductors, long-distance pulls, and complex bundled conductor stringing in large-scale transmission projects.
Advanced Hydraulic Precision: Equipped with a sophisticated closed hydraulic circuit, featuring top-tier global components. This system allows for infinitely variable speed control and precise tension management, ensuring smooth and controlled pulling operations and preventing conductor damage.
Built for Heavy-Duty Reliability: Constructed with a robust, reinforced chassis and wear-resistant components capable of withstanding continuous, high-intensity operations and harsh environmental conditions, guaranteeing extended service life and minimal maintenance.
Superior Safety Features: Includes an automatic spring-applied, hydraulic-released brake system that ensures immediate and secure braking upon any hydraulic pressure loss or emergency, providing maximum safety for both personnel and valuable conductors. Over-pulling protection further enhances operational security.
Efficient & Powerful Engine: Driven by a high-performance, industrial-grade diesel engine, optimized for consistent power delivery and fuel efficiency during demanding, prolonged pulling tasks.
User-Centric Design: Features an ergonomic control panel with clear instrumentation for intuitive operation, contributing to reduced operator fatigue and increased productivity on site. Easy access points simplify routine maintenance.
Global Standard Adherence: Manufactured under strict quality control protocols, our equipment adheres to international quality and safety standards, providing a dependable solution for electrical contractors and utilities worldwide.

At Changshi, we offer comprehensive one-stop supply and services for both overhead transmission line wire cable conductor tension stringing equipment and underground cable laying equipment. Choose our 9 Ton Hydraulic Conductor Puller for powerful, precise, and reliable performance on your most ambitious power infrastructure endeavors.

Technical Data Sheet: 9 Ton Hydraulic Conductor Puller

Feature/Specification	Value	Notes
Max. Pulling Force	90 kN (9 Ton)
Continuous Pulling Force	85 kN	For sustained high-load applications
Max. Stringing Speed	4.5 km/h	Infinitely variable speed control
Bull Wheel Diameter	$Φ$ 1600 mm	Heavy-duty, deep-grooved, lined with wear-resistant MC Nylon segments
Number of Grooves	6-8 (typical, model-dependent)	Suitable for larger conductors or bundles
Max. Conductor Diameter	$Φ$ 50 mm	Accommodates a wide range of heavy conductor sizes
Engine Type	Water-Cooled Diesel Engine (e.g., Cummins/Deutz type)	High-performance, industrial-grade for continuous operation
Engine Power	100 kW - 120 kW (approximate, model-dependent)	Optimized for heavy-duty pulling tasks
Hydraulic System	Advanced Closed Hydraulic Circuit	Main pump and motor from leading global brands (e.g., Rexroth, Sauer-Danfoss)
Reducer	Heavy-Duty Planetary Reducer (e.g., Italian R.R. brand or equivalent)	Enhanced durability and torque transfer for prolonged use
Hydraulic Valves	High-Quality Control Valves (e.g., Rexroth)	For precise and responsive operation
Hydraulic Instrument	Accurate Digital Pressure/Tension Gauge	Real-time, clear operational data display (e.g., WIKA)
Cooling System	High-Capacity Hydraulic Oil Cooler	Ensures stable performance under prolonged, high-temperature operation
Safety Brake	Spring-Applied, Hydraulic-Released & Emergency Stop Function	Dual safety mechanism for maximum protection
Hydraulic Outlets	1-2 (for external hydraulic Reel Stands/accessories)	For integrated system control
Mobility	Heavy-Duty Trailer-Mounted with rigid or tandem axle	Built for robust towing over diverse terrain (max. towing speed 15 km/h)
Approx. Weight	5800 kg - 6500 kg (varies by model and configuration)	Reflects robust construction and higher capacity components
Approx. Dimensions (L x W x H)	$5.80 \times 2.00 \times 2.60$ m (varies by model)	Larger footprint for enhanced stability and components

Note: Specifications are indicative of a high-capacity model designed for heavy-duty applications and may be customized. For the most current and precise technical data for specific models, or for customization options, please contact our sales team directly.
