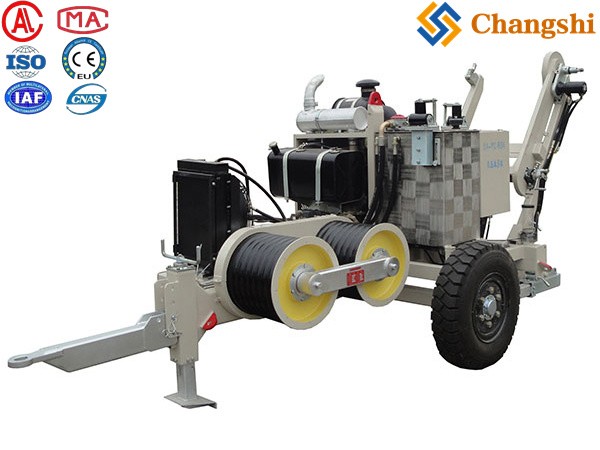

6 Ton Hydraulic Conductor Puller for Overhead Transmission Line

High-performance 6-ton hydraulic conductor puller for efficient overhead transmission line (OHTL) stringing. A reliable solution for power line construction & maintenance. China manufacturer, global exporter.

Product Name:Transmission Line Wire Cable Conductor Tension Stringing Equipment
Keywords:Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
Function:Tools For Power Lines,Substation,Electrical Construction & Maintenance
Category:Electric Power Transmission Distribution Line Construction Machine Tools
Usage:Overhead Power Transmission Distribution Line Repair Hardware Fittings
Relatives :Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories

Request a Quote

Information
Video

6 Ton Hydraulic OHTLstringingequipment.com/Hydraulic-Conductor-Pullers.html target='_blank'>Conductor Puller: Powering Efficient Overhead Transmission line stringing

As a prominent China manufacturer and global exporter specializing in tools and equipment for power lines, substations, electrical construction, and maintenance, [Your Company Name] is proud to offer our robust 6 Ton Hydraulic OHTLstringingequipment.com/Hydraulic-Conductor-Pullers.html target='_blank'>Conductor Puller. This essential machine is meticulously engineered to ensure safe, precise, and highly efficient conductor installation for overhead transmission lines (OHTL).

Designed for versatility and unwavering reliability, our 6 Ton Hydraulic Conductor Puller delivers consistent pulling force and controlled speed, which is crucial for protecting valuable conductors and maximizing productivity across a wide range of power transmission projects. From new line construction to vital re-conductoring operations, this puller is built to perform optimally in diverse environmental conditions worldwide.

Key Features & Benefits:

Optimal 6-Ton Pulling Capacity: Provides ample pulling force (60 kN) to effectively handle a broad spectrum of conductor types and sizes, ensuring its versatility across various OHTL applications, including single or bundled conductors.
Precision Hydraulic Control: Features an advanced, highly responsive closed hydraulic circuit, offering stepless speed adjustment and accurate tension control. This capability is vital for delicate stringing tasks, minimizing conductor stress, and preventing costly damage.
Enhanced Safety Mechanisms: Equipped with an automatic spring-applied, hydraulic-released brake system that activates instantly upon any loss of hydraulic pressure, safeguarding both personnel and valuable equipment. Integrated over-pulling protection further enhances operational security.
Durable & Robust Construction: Manufactured from high-grade, wear-resistant materials and components, our puller is designed to withstand harsh environmental conditions and prolonged, heavy-duty operation. This ensures exceptional longevity and minimal downtime for your projects.
User-Friendly Operation: Ergonomically designed with an intuitive control panel and clear interface, promoting ease of use, reducing operator fatigue, and increasing overall efficiency on the job site.
Global Export Quality & Support: Engineered to meet stringent international quality and safety standards, making it a trusted and reliable choice for power line contractors and utilities across the globe. We offer comprehensive one-stop supply and services to support your operations worldwide.

At Changshi, we are your go-to source for both overhead transmission line wire cable conductor tension stringing equipment and underground cable laying equipment. Choose our 6 Ton Hydraulic Conductor Puller for efficient, reliable, and safe execution of your critical power infrastructure projects.

Technical Data Sheet: 6 Ton Hydraulic Conductor Puller

Feature/Specification	Value	Notes
Max. Pulling Force	60 kN (6 Ton)
Continuous Pulling Force	55 kN
Max. Stringing Speed	5 km/h	Infinitely variable speed control
Bull Wheel Diameter	$Φ$ 1500 mm	Lined with wear-resistant MC Nylon segments
Number of Grooves	6
Max. Conductor Diameter	$Φ$ 40 mm
Engine Type	Air-Cooled Diesel Engine (e.g., Deutz type)	Reliable and fuel-efficient power source
Engine Power	82.5 kW (approximate, model-dependent)
Hydraulic System	Closed Hydraulic Circuit	Main pump and motor from reputable international brands (e.g., Rexroth, Sauer-Danfoss)
Reducer	High-Quality Planetary Reducer	Ensures smooth and powerful operation
Hydraulic Valves	International Standard Hydraulic Valves	For precise control (e.g., Rexroth)
Hydraulic Instrument	Accurate Pressure/Tension Gauge	Real-time monitoring of pulling force (e.g., WIKA)
Cooling System	Hydraulic Oil Air Cooler	Maintains optimal oil temperature during extended operations
Safety Brake	Spring-Applied, Hydraulic-Released	Automatic activation upon hydraulic pressure loss
Hydraulic Outlets	1 (for external hydraulic Reel Stands/accessories)	For integrated system control
Mobility	Trailer-mounted with rigid axle	For easy towing at max. speed of 15 km/h
Approx. Weight	4800 kg
Approx. Dimensions (L x W x H)	$5.52 \times 1.89 \times 2.40$ m	Dimensions may vary slightly based on specific model and configuration

Note: Specifications are subject to continuous product improvement and may vary slightly. For the most current and precise technical data for specific models, or for customization options, please contact our sales team directly.
