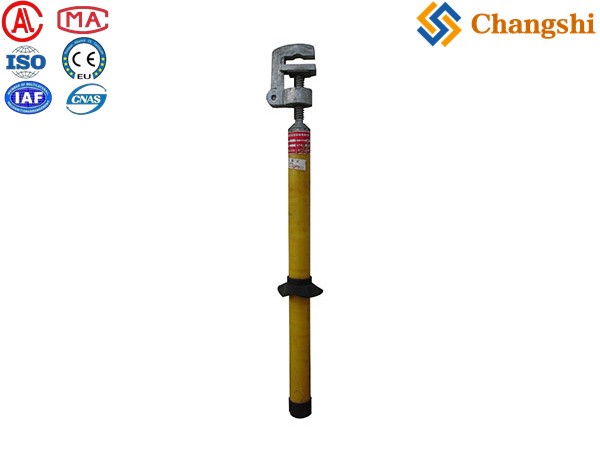

Synchronized Opening Short Circuit Grounding Pole: Uncompromising Safety for Electrical System Maintenance

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that safety is the absolute priority in all power line, substation, and electrical construction environments. Our Synchronized Opening Short Circuit Grounding Pole is a meticulously engineered, high-voltage safety device designed to reliably and efficiently apply temporary grounding and short-circuit connections to de-energized electrical systems, ensuring maximum protection for personnel working on or near conductors. As a prominent China manufacturer and exporter specializing in tools and equipment for power lines, substations, electrical construction, and maintenance, and offering comprehensive one-stop supply for both overhead transmission line (OHTL) equipment and underground cable laying equipment, this specialized grounding pole exemplifies our unwavering commitment to advanced safety solutions, robust construction, and reliable performance.

Before any work commences on a seemingly de-energized power line or equipment, it is paramount to apply temporary grounds. This critical step serves two primary functions: to drain any residual charge and, more importantly, to create a low-impedance path to earth for any accidental re-energization, safely diverting fault currents away from workers. The unique "synchronized opening" or "even opening" mechanism of our grounding pole ensures that multiple clamps (if equipped) open and close in a coordinated, reliable manner, facilitating secure and consistent application across different phases or connections. Constructed from high-strength, electrically insulated materials (such as fiberglass or epoxy resin), these poles provide critical isolation from energized components, while their robust conducting components ensure efficient short-circuiting and grounding. This grounding pole is an indispensable part of any lockout/tagout (LOTO) procedure, ensuring that lines are de-energized, tested, and grounded before work, significantly reducing the risk of electrocution or arc flash incidents.

Product Features & Benefits:

• Synchronized/Even Opening Mechanism: Ensures that all grounding clamps (if multi-phase) open and close simultaneously or with precise coordination, facilitating secure and reliable application of temporary grounds across all necessary points.

• High-Strength Insulating Pole: Constructed from premium fiberglass or epoxy resin, providing superior electrical insulation for maximum worker safety during application and removal on high-voltage lines.

• Robust Grounding Clamps: Equipped with heavy-duty, high-conductivity copper alloy or aluminum alloy clamps designed for firm, low-resistance connection to conductors and grounding points.

• Essential Safety Device: Creates a secure, low-impedance path to earth for any accidental re-energization, protecting personnel from electrocution or arc flash hazards during maintenance.

• User-Friendly Operation: Designed for ease of handling and precise positioning, allowing for efficient application of grounds in various field conditions.

• Modular & Extendable Design (Optional): Many models allow for sections to be added or removed, providing flexibility for different voltage levels and working heights.

• Durable Construction: Built to withstand the rigors of frequent field use, ensuring long-term reliability and safety.

• Visual Indicators: Often includes clear markings or visual cues for proper extension and secure locking mechanisms.

• Compliant with Safety Standards: Manufactured to meet stringent industry safety standards for temporary grounding equipment.

Product Applications:

Our Synchronized Opening Short Circuit Grounding Pole is a critical safety tool for a wide range of electrical applications:

• Overhead Transmission & Distribution Line Maintenance: Essential for applying temporary grounds to de-energized conductors, earth wires, and overhead lines before personnel commence work.

• Substation Equipment Grounding: Used for grounding circuit breakers, transformers, switchgear, and busbars within substations to ensure a safe working environment.

• underground Cable Section Grounding: Applied to accessible points of underground cables to dissipate residual charge and provide a ground path.

• Emergency & Fault Repair: Rapidly applies temporary grounds to fault-affected lines to make them safe for repair crews.

• HV/MV Switchgear Operation: Used as a safe operating tool for certain types of high-voltage switches and disconnects where integrated grounding is not present.

• Construction & Demolition: Ensuring electrical systems are thoroughly grounded before any dismantling or new construction work.

• Testing & Commissioning: Used to safely ground systems after testing and before re-energization.

Technical Data Sheet:

Note: The specific voltage rating of the grounding pole is critical and must always be selected to match or exceed the maximum nominal voltage of the system being worked on. Adherence to all local safety regulations, lockout/tagout procedures, and proper training is absolutely paramount for the safe use of this equipment. Grounding sets typically include the pole, grounding clamps, and appropriate grounding cables (sold separately or as a kit). Please contact us for detailed datasheets for specific voltage classes and product variants.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing paramount safety solutions and robust equipment for the electrical industry. Here’s why our Synchronized Opening Short Circuit Grounding Pole is your ideal choice:

1. Uncompromising Safety Assurance: Our grounding pole provides a critical layer of protection, ensuring de-energized systems remain safe for personnel through reliable short-circuiting and grounding.

2. Precision Synchronized Operation: The "even opening" mechanism guarantees consistent and secure application of grounds, enhancing reliability and efficiency in critical safety procedures.

3. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source for all your needs.

4. Unwavering Quality & Enduring Reliability: Every Synchronized Opening Short Circuit Grounding Pole undergoes stringent quality control and dielectric testing, ensuring it delivers consistent peak performance and unyielding reliability in demanding field conditions.

5. Global Expertise & Trusted Performance: Our worldwide presence and adherence to international safety standards mean our equipment is designed for universal applicability, trusted by professionals globally for critical electrical safety.

Final Summary:

Our Synchronized Opening Short Circuit Grounding Pole is an indispensable, high-voltage safety device meticulously engineered to provide reliable and efficient temporary grounding and short-circuit connections on de-energized electrical systems. Its unique "even opening" mechanism, combined with robust insulation and high-conductivity components, ensures maximum worker protection, making it a critical tool for safe and compliant maintenance operations on power lines, substations, and electrical infrastructure. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed safety equipment.
