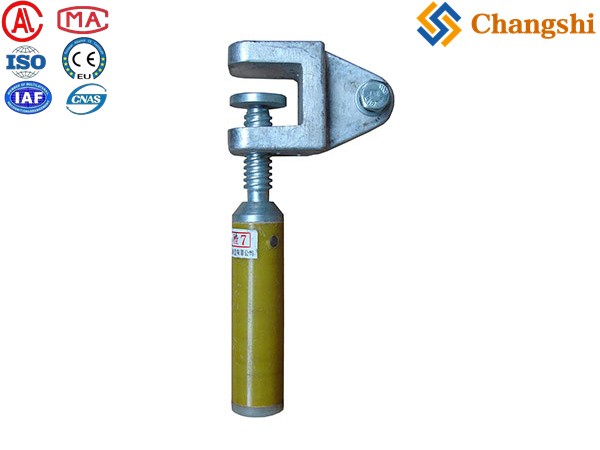

Arc-Opening Short Circuit Grounding Pole for HV Line Safety

Arc-Opening Short Circuit Grounding Pole: Advanced Safety for High-Voltage Electrical Isolation and Protection

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we hold worker safety as the absolute paramount concern in every aspect of power line, substation, and electrical infrastructure work. Our Arc-Opening Short Circuit Grounding Pole is a meticulously engineered, high-voltage safety device designed for the reliable and precise application of temporary grounding and short-circuit connections to de-energized electrical systems, ensuring the highest level of protection for personnel. As a prominent China manufacturer and exporter specializing in tools and equipment for power lines, substations, electrical construction, and maintenance, and offering comprehensive one-stop supply for both overhead transmission line (OHTL) equipment and underground cable laying equipment, this specialized arc-opening grounding pole exemplifies our unwavering commitment to advanced safety solutions, robust construction, and reliable performance.

Before any maintenance or construction work can safely begin on electrical conductors or equipment, a critical safety protocol involves applying temporary grounds. This process serves to rapidly dissipate any residual electrical charges and, crucially, to provide a fail-safe, low-impedance path to earth in the event of an accidental re-energization, diverting dangerous fault currents away from personnel. The distinctive "arc-opening" mechanism of this grounding pole refers to a specific design where the grounding clamps open and close with a powerful, often scissor-like or arcing action, ensuring a strong, secure, and positive connection to the conductor. Constructed from advanced, electrically insulated materials (such as fiberglass or high-grade epoxy resin), these poles provide critical isolation from energized components, while their heavy-duty, high-conductivity clamps guarantee efficient short-circuiting and grounding. This grounding pole is an indispensable part of any stringent lockout/tagout (LOTO) procedure, ensuring that lines are de-energized, properly tested for absence of voltage, and robustly grounded before work, thereby significantly mitigating the risks of electrocution or arc flash incidents.

Product Features & Benefits:

• Arc-Opening Clamp Mechanism: Features a unique, powerful "arc" or "scissor" opening action for the grounding clamps, ensuring a strong, positive, and secure connection to conductors for reliable short-circuiting and grounding.

• Superior Electrical Insulation: Constructed from high-strength, non-conductive materials like premium fiberglass or epoxy resin, providing critical isolation from live components and maximum safety for the operator.

• High-Conductivity Grounding Clamps: Equipped with heavy-duty clamps made from high-conductivity copper alloy or aluminum alloy, designed to establish a low-resistance path for fault currents to ground.

• Crucial Personal Safety Device: Provides a vital layer of protection by dissipating residual charge and creating a safe path for accidental re-energization, safeguarding personnel from electric shock or arc flash.

• Robust & Durable Construction: Built to withstand the harsh conditions of field use, ensuring long-term reliability and consistent performance in challenging environments.

• Modular & Extendable Design (Common): Many models feature telescopic or sectional designs, allowing for adjustable lengths to suit various voltage levels and access heights.

• User-Friendly Ergonomics: Designed for ease of handling, precise control, and secure application, even with heavy-duty components.

• Visual & Locking Indicators: Often includes clear visual markings for proper extension and secure locking mechanisms to ensure correct assembly and operation.

• Compliance with International Standards: Manufactured to meet stringent industry safety standards for temporary grounding equipment, ensuring global applicability and trust.

Product Applications:

Our Arc-Opening Short Circuit Grounding Pole is a fundamental safety tool for a broad spectrum of critical electrical applications:

• Overhead Transmission & Distribution Line Maintenance: Absolutely essential for applying temporary grounds to de-energized overhead conductors, earth wires, and overhead lines before any work begins.

• Substation Equipment Grounding: Used for grounding high-voltage circuit breakers, power transformers, busbars, and disconnect switches within substations to create a safe work zone.

• underground Cable Network Grounding: Applied at accessible points of underground cable sections to safely dissipate stored energy and provide a secure ground path.

• Emergency Fault Repair: Enables rapid and reliable application of temporary grounds to lines or equipment that have experienced a fault, making them safe for repair crews.

• High-Voltage Switchgear Operation: Utilized as a safe and insulated operating tool for certain types of high-voltage switches and disconnects where integrated grounding is not present.

• Construction & Decommissioning Projects: Ensures electrical systems are thoroughly grounded before any dismantling, new construction, or re-energization procedures.

• Testing and Commissioning Safeties: Provides grounding after testing and before final re-energization of new or repaired electrical installations.

Technical Data Sheet:

Note: The specific voltage rating of the grounding pole is critically important and must always be selected to match or exceed the maximum nominal voltage of the electrical system being grounded. Adherence to all local safety regulations, lockout/tagout procedures, and comprehensive training is absolutely paramount for the safe and effective use of this essential safety equipment. Grounding sets typically include the operating pole, grounding clamps, and appropriate high-current capacity grounding cables (often sold separately or as a complete kit). Please contact us for detailed datasheets for specific voltage classes and product variants.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing paramount safety solutions and exceptionally robust equipment for the electrical industry. Here’s why our Arc-Opening Short Circuit Grounding Pole is your ideal choice:

1. Enhanced Safety with Positive Clamping: The unique arc-opening mechanism ensures a consistently secure and positive connection to conductors, maximizing the effectiveness of temporary grounding and protecting personnel.

2. Superior Insulation & Robust Construction: Manufactured from high-grade insulating materials and heavy-duty conductive components, our poles are built for enduring reliability and critical safety performance in demanding environments.

3. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source for all your needs.

4. Unwavering Quality & Proven Reliability: Every Arc-Opening Short Circuit Grounding Pole undergoes stringent quality control and dielectric testing, ensuring it consistently delivers peak safety performance and unyielding reliability in the field.

5. Global Trust & Compliance: Our commitment to international safety standards means our equipment is designed for universal applicability, trusted by electrical professionals worldwide for critical electrical isolation and earthing.

Final Summary:

Our Arc-Opening Short Circuit Grounding Pole is an indispensable, high-voltage safety device meticulously engineered to provide reliable and efficient temporary grounding and short-circuit connections on de-energized electrical systems. Its distinctive "arc-opening" mechanism, combined with robust insulation and high-conductivity components, ensures maximum worker protection and efficient fault current diversion, making it a critical tool for safe and compliant maintenance operations on power lines, substations, and electrical infrastructure. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed safety equipment.

Prioritize maximum electrical safety with our advanced grounding solutions! Explore our Arc-Opening Short Circuit Grounding Poles. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific high-voltage safety equipment needs and request a comprehensive quotation!
