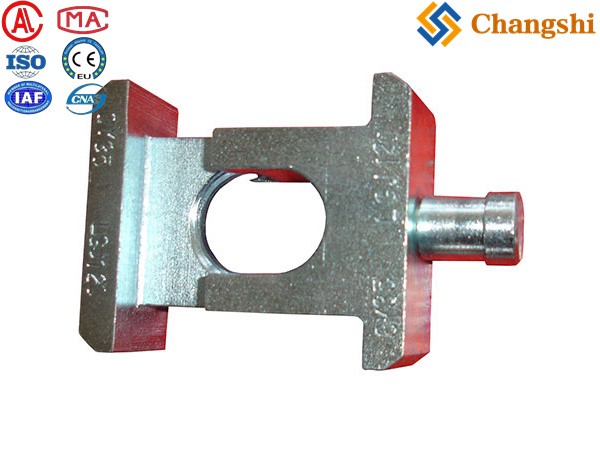

Precision Arc Compression Die Sets for Round Conductors & Earthwires

Precision Arc Compression Die Sets for Round Conductors & Earthwires: Tailored Connections for Specialized Power Applications

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that while hexagonal crimps are common, certain conductor types, standards, or connector designs specifically require an arc (also known as oval or rounded) compression profile for optimal performance and integrity. Our Precision Arc Compression Die Sets for Round Conductors & Earthwires are meticulously engineered accessories designed to work seamlessly with hydraulic crimping tools, ensuring consistent, precise, and robust arc-shaped crimps. These specialized die sets are essential for creating highly conductive and mechanically strong connections on a particular range of overhead line conductors and grounding wires where an arc crimp is specified. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, these arc compression die sets exemplify our unwavering commitment to providing innovative, durable, and highly effective components that ensure superior safety, efficiency, and the long-term performance of your electrical infrastructure.

Arc compression, characterized by its rounded or oval crimp profile, is often preferred for certain solid, stranded, or compacted round conductors to ensure maximum contact area and a smooth finish. Our Arc Compression Die Sets are precision-machined from high-grade alloy steel, guaranteeing exceptional hardness, wear resistance, and accurate sizing. Each die within the set is designed to precisely compress a specific conductor size (e.g., in mm² or MCM) or earthwire type into a perfect arc shape, ensuring optimal metal-to-metal contact within the compression connector. This "cold welding" process effectively eliminates voids, reduces electrical resistance, and creates a joint that is highly resistant to mechanical tension, vibration, and environmental stresses over its operational lifespan. These die sets are indispensable for crimping various compression-type fittings, including splices, dead-ends, and connectors, for both mainline overhead conductors where arc crimps are specified, and critical grounding wires (overhead ground wires, OPGW). By utilizing our precisely manufactured arc die sets, you guarantee that every crimp meets stringent industry specifications, safeguarding the integrity and reliability of your power grid, especially in applications demanding this specific crimp geometry.

Product Features & Benefits:

• Precision Arc/Oval Crimping: Engineered to create perfect rounded or oval compression profiles, ideal for specific conductor types and connectors that require this unique geometry for optimal electrical and mechanical performance.

• High-Grade Alloy Steel Construction: Manufactured from robust, heat-treated alloy steel for exceptional durability, wear resistance, and long service life, even under high-frequency use.

• Accurate Sizing & Standardization: Each die is precisely machined to specific conductor cross-sections (mm² or MCM), ensuring consistent and repeatable crimps that adhere to relevant industry standards for arc compression.

• Versatile Application: Designed for use with a wide range of compression-type connectors on both:

  • Overhead Conductors: Where arc crimps are specified (e.g., certain compacted aluminum conductors, full-tension splices).

  • Earthwires/Ground Wires: For secure grounding and overhead ground wire installations that utilize arc compression.

• Optimizes Electrical & Mechanical Performance: Ensures proper material flow and void elimination within the connector, leading to low electrical resistance, minimal power loss, and high tensile strength in the crimped joint, specifically tailored for arc profiles.

• Interchangeable & Compatible: Designed for easy and quick interchangeability with standard hydraulic compression tools that accept arc-type dies, providing versatility and efficiency for different conductor sizes.

• Corrosion Resistance: Treated to resist rust and corrosion, maintaining performance in various environmental conditions.

Product Applications:

Our Precision Arc Compression Die Sets are fundamental components for ensuring reliable connections in numerous power line and grounding applications where an arc compression profile is required:

• Overhead Transmission & Distribution Line Construction: Essential for crimping specific types of full-tension splices, dead-ends, and tap connectors on conductors where manufacturers specify arc or oval crimps.

• Grounding & Earthwire System Installations: Crucial for securely crimping overhead ground wires (including OPGW) and various grounding connectors designed for arc compression.

• Specialized Conductor Applications: Used for conductors with unique profiles or compaction, where an arc crimp provides superior contact and aesthetic finish.

• Substation Connections: For specific compression lugs and connectors used in substation busbar and equipment connections that require an arc crimp.

• Electrical Maintenance & Repair: For re-connecting conductors, repairing damaged sections, or upgrading existing connections to meet standards requiring arc compression.

Technical Data Sheet:

Note: It is absolutely essential to use the correct die set that precisely matches the conductor size and type of compression connector (splice, dead-end, lug) being installed, especially when an arc crimp is specified. Using incorrect dies can result in an improper crimp, leading to connection failure, overheating, or reduced mechanical strength. Always refer to the conductor and connector manufacturer's specifications and the instructions provided with your hydraulic compression tool and die set. Please contact us for detailed specifications on our full range of arc compression die sets and compatibility with your existing hydraulic crimping equipment.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-quality, precise, and durable tools for your critical power line connections. Here’s why our Precision Arc Compression Die Sets are your ideal choice:

1. Specialized Crimp Precision: Our die sets are engineered for exceptional precision in creating arc/oval crimps, ensuring maximum electrical conductivity, minimal resistance, and superior mechanical strength where this specific crimp profile is required.

2. Unmatched Durability & Longevity: Crafted from premium heat-treated alloy steel, these dies withstand extensive use and the high forces of hydraulic compression, providing long-term reliability and excellent return on investment.

3. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source for all your specialized connection tooling needs.

4. Wide Range & Perfect Compatibility: We offer an extensive selection of arc die sizes to cover all common conductor and earthwire dimensions where this crimp type is applicable, ensuring perfect compatibility with appropriate hydraulic compression tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance connection tools and accessories.

Final Summary:

Our Precision Arc Compression Die Sets for Round Conductors & Earthwires are indispensable accessories that ensure the integrity and longevity of power line connections where an arc or oval crimp profile is specified. Meticulously crafted from high-grade alloy steel, these die sets deliver precise, standardized arc crimps for a wide range of overhead conductors and critical earthwires. They are fundamental to achieving superior electrical performance, mechanical strength, and overall reliability in your specialized power grid infrastructure. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed tooling for perfect connections every time.

Ensure every specialized connection is perfect and reliable! Explore our Precision Arc Compression Die Sets for Round Conductors & Earthwires. Visit or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to find the exact die sets for your hydraulic tools and specific conductor sizes, and request a comprehensive quotation!
