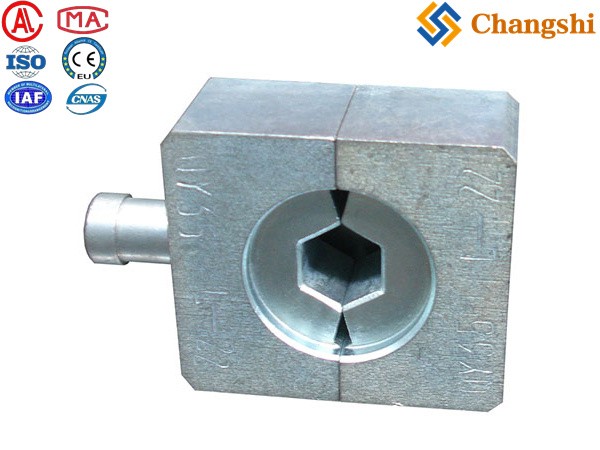

Precision Hexagonal Compression Die Sets for OHTL Conductors & Earthwires

Precision Hexagonal Compression Die Sets for OHTL Conductors & Earthwires: The Key to Reliable Power Line Connections

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that the strength and electrical integrity of any power transmission or distribution line rely fundamentally on perfectly executed connections. While a powerful Hydraulic Compressor is essential, the precision of the crimp is ultimately determined by the quality and accuracy of the compression dies. Our Precision Hexagonal Compression Die Sets for OHTL Conductors & Earthwires are meticulously engineered accessories designed to work seamlessly with hydraulic crimping tools, ensuring consistent, standardized, and robust hexagonal crimps on a wide range of overhead line conductors and grounding wires. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, these hexagonal compression die sets exemplify our unwavering commitment to providing innovative, durable, and highly effective components that ensure superior safety, efficiency, and the long-term performance of your electrical infrastructure.

Hexagonal compression is a widely adopted industry standard for crimping electrical conductors due to its ability to create a high-strength, low-resistance, and visually verifiable connection. Our Hexagonal Compression Die Sets are precision-machined from high-grade alloy steel, ensuring exceptional hardness, wear resistance, and accurate sizing. Each die within the set is designed to precisely compress a specific conductor size (e.g., in mm² or MCM) or earthwire type into a perfect hexagonal shape, ensuring optimal metal-to-metal contact within the compression connector. This "cold welding" process eliminates voids, reduces electrical resistance, and creates a joint that can withstand significant mechanical tension, vibration, and environmental stresses over decades of service. These die sets are indispensable for crimping various compression-type fittings, including full-tension splices, dead-ends, tap connectors, and repair sleeves, for both main overhead conductors (such as ACSR, AAAC, AAC) and critical earthwires (overhead ground wires, OPGW). By using our precisely manufactured die sets, you guarantee that every crimp meets stringent industry specifications, safeguarding the integrity and reliability of your power grid.

Product Features & Benefits:

• Precision Hexagonal Crimping: Engineered to create perfect hexagonal compression profiles, which are industry-standard for achieving maximum electrical conductivity and mechanical strength.

• High-Grade Alloy Steel Construction: Manufactured from robust, heat-treated alloy steel for exceptional durability, wear resistance, and long service life, even under high-frequency use.

• Accurate Sizing & Standardization: Each die is precisely machined to specific conductor cross-sections (mm² or MCM), ensuring consistent and repeatable crimps that meet international standards.

• Versatile Application: Designed for use with a wide range of compression-type connectors on both:

  • Overhead Conductors: Including ACSR, AAAC, AAC, and other aluminum/aluminum alloy conductors.

  • Earthwires/Ground Wires: For secure grounding and overhead ground wire installations.

• Optimizes Electrical & Mechanical Performance: Ensures proper material flow and void elimination within the connector, leading to low electrical resistance, minimal power loss, and high tensile strength in the crimped joint.

• Interchangeable & Compatible: Designed for easy and quick interchangeability with standard hydraulic compression tools, providing versatility and efficiency for different conductor sizes.

• Visual Crimp Verification: Hexagonal crimps provide a clear visual indicator of a properly completed connection, aiding in quality control and inspection.

• Corrosion Resistance: Treated to resist rust and corrosion, maintaining performance in various environmental conditions.

Product Applications:

Our Precision Hexagonal Compression Die Sets are fundamental components for ensuring reliable connections in numerous power line and grounding applications:

• Overhead transmission line (OHTL) Construction: Essential for crimping full-tension splices, dead-ends, repair sleeves, and tap connectors on ACSR, AAAC, AAC, and other conductors.

• Distribution Line Installations: Used for service drops, mainline taps, and terminations where hexagonal compression is specified.

• Earthwire & Grounding System Installations: Crucial for securely crimping overhead ground wires (including OPGW) and various grounding connectors to ensure effective earthing.

• Substation Connections: For crimping compression lugs and connectors onto busbars and equipment where hexagon crimps are required.

• Electrical Maintenance & Repair: For re-connecting conductors, repairing damaged sections, or upgrading existing connections to meet current standards.

• Wind Farm & Solar Farm Grid Connections: For robust and reliable connections between renewable energy generation and the main grid infrastructure.

Technical Data Sheet:

Note: It is absolutely essential to use the correct die set that precisely matches the conductor size and type of compression connector (splice, dead-end, lug) being installed. Using incorrect dies can result in an improper crimp, leading to connection failure, overheating, or reduced mechanical strength. Always refer to the conductor and connector manufacturer's specifications and the instructions provided with your hydraulic compression tool and die set. Please contact us for detailed specifications on our full range of hexagonal compression die sets and compatibility with your existing hydraulic crimping equipment.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-quality, precise, and durable tools for your critical power line connections. Here’s why our Precision Hexagonal Compression Die Sets are your ideal choice:

1. Guaranteed Connection Quality: Our die sets are engineered for exceptional precision, ensuring every hexagonal crimp is perfectly formed for maximum electrical conductivity, minimal resistance, and superior mechanical strength, directly contributing to grid reliability.

2. Unmatched Durability & Longevity: Crafted from premium heat-treated alloy steel, these dies withstand extensive use and the high forces of hydraulic compression, providing long-term reliability and excellent return on investment.

3. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source for all your specialized connection tooling needs.

4. Wide Range & Perfect Compatibility: We offer an extensive selection of die sizes to cover all common conductor and earthwire dimensions, ensuring perfect compatibility with industry-standard hydraulic compression tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance connection tools and accessories.

Final Summary:

Our Precision Hexagonal Compression Die Sets for OHTL Conductors & Earthwires are indispensable accessories that ensure the integrity and longevity of power line connections. Meticulously crafted from high-grade alloy steel, these die sets deliver precise, standardized hexagonal crimps for a wide range of overhead conductors and critical earthwires. They are fundamental to achieving superior electrical performance, mechanical strength, and overall reliability in your power grid infrastructure. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed tooling for perfect connections every time.

Ensure every connection is perfect and reliable! Explore our Precision Hexagonal Compression Die Sets for OHTL Conductors & Earthwires. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to find the exact die sets for your hydraulic tools and specific conductor sizes, and request a comprehensive quotation!
