Figure-8 Bend-Resistant Swivel Connector for Conductor Stringing

Figure-8 Bend-Resistant Swivel Connector: Essential for Smooth & Kink-Free OHTLstringingequipment.com/Conductor-Stringing-Equipment.html target='_blank'>conductor stringing

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that maintaining the integrity of conductors and pulling ropes during overhead transmission line (OHTL) stringing operations is paramount. Twisting, kinking, or excessive bending of the pilot wire, pulling rope, or conductor can lead to costly delays, damage to materials, and compromised installation quality. Our Figure-8 Bend-Resistant Swivel Connector is a meticulously engineered, specialized accessory designed to address these critical challenges. Named for its distinctive "8-shape," this connector is specifically designed to provide robust "bend resistance," effectively preventing undesirable kinking or twisting of ropes and conductors under tension. It ensures a smooth, controlled stringing process, safeguarding valuable assets and enhancing overall operational efficiency. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this Figure-8 bend-resistant connector exemplifies our unwavering commitment to providing innovative, durable, and highly effective equipment that ensures superior safety, efficiency, and the long-term performance of your power line construction projects.

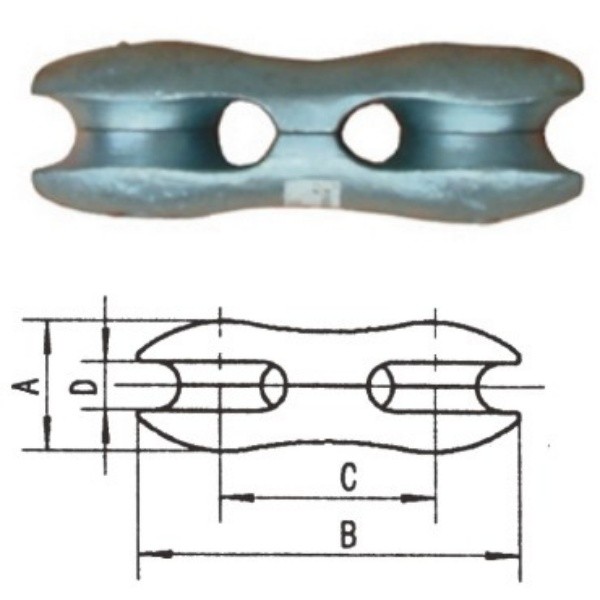

The unique "8-shape" design of this connector is not merely aesthetic; it's a functional feature that allows for exceptional flexibility and anti-kink properties. Typically, these connectors incorporate a swivel mechanism, enabling the pulling rope or conductor to rotate freely without transferring torsional forces (twisting) to the attached equipment or conductor. This rotational freedom, combined with the "bend resistance" provided by its geometry and robust construction, ensures that the pulling process remains smooth and linear, even when navigating challenging terrain or complex pulling routes. Made from high-strength, corrosion-resistant materials, our Figure-8 Bend-Resistant Swivel Connector is built to withstand the immense tensile forces encountered during conductor stringing. It is an indispensable component used between the pulling rope and the pilot wire, or directly with the conductor, to absorb rotational stresses and prevent damage. By integrating this specialized connector into your stringing setup, you significantly reduce the risk of costly material damage, improve operational safety, and ensure a more efficient and reliable power line installation.

Product Features & Benefits:

• Distinctive Figure-8 Design: Unique "8-shape" geometry specifically engineered to provide superior bend resistance, effectively preventing kinks, twists, and damage to pulling ropes, pilot wires, and conductors during stringing.

• Integrated Swivel Functionality (Common): Allows free rotation between connected components, absorbing torsional stresses and preventing the accumulation of twist in the conductor or pulling rope.

• High Strength & Durability: Manufactured from robust, high-grade alloy steel or aluminum, designed to withstand immense tensile loads and resist wear in challenging outdoor construction environments.

• Corrosion Resistance: Treated with protective coatings (e.g., galvanization) or made from inherently corrosion-resistant materials for long service life in various weather conditions.

• Smooth & Controlled Stringing: Ensures a linear pulling force, reducing friction and stress on pulling equipment and conductors, leading to a more efficient and safer stringing operation.

• Versatile Connection Points: Designed with smooth eyes or shackles at both ends to easily connect to pulling grips, pilot wires, swivel joints, and tension stringing equipment.

• Reduces Equipment & Conductor Damage: Protects valuable conductors from kinking, spiraling, and other forms of damage that can compromise their structural and electrical integrity.

• Enhanced Safety: Contributes to a safer working environment by preventing sudden jerks or snags caused by twisted lines, allowing for more predictable pulling operations.

• Wide Range of Load Capacities: Available in various sizes and breaking strengths to match different conductor types and stringing tensions.

Product Applications:

Our Figure-8 Bend-Resistant Swivel Connector is an essential component for various overhead transmission line (OHTL) construction and maintenance applications:

• Conductor Stringing Operations: Used directly between the pulling rope and conductor/pilot wire to prevent twisting and kinking during the actual stringing of new power lines.

• Pilot Wire Pulling: Connects the pilot wire to the pulling rope, ensuring the pilot wire remains straight and manageable as it's pulled through Stringing Blocks.

• Tension Stringing Setups: Integrates into complex tension stringing systems between various components (e.g., pulling line, dynamometers, stringing socks) where anti-twist is crucial.

• Heavy Pulls & Winching: Applied in any heavy pulling or winching scenario where rotational forces need to be absorbed to protect the cable or rope.

• underground Cable Pulling (Specific Uses): Can be adapted for certain underground cable pulling applications where preventing cable twist is important, especially for longer runs.

• General Lifting & Rigging (Non-critical): Suitable for general rigging tasks where swivel and bend resistance are beneficial, though specialized lifting swivels may be required for critical lifts.

Technical Data Sheet:

Note: Always select a connector with a Working Load Limit (WLL) appropriate for the maximum expected tension during your stringing operation. NEVER exceed the stated WLL. Regular inspection for signs of wear, deformation, cracks, or corrosion is crucial before each use. Any damaged or excessively worn connectors must be immediately removed from service. Ensure the swivel mechanism operates freely. Please contact us for detailed datasheets for specific models and their exact load capacities and dimensions.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, safe, and efficient equipment for your overhead transmission line projects. Here’s why our Figure-8 Bend-Resistant Swivel Connector is your ideal choice:

1. Superior Kink & Bend Resistance: Our unique Figure-8 design effectively prevents twisting and kinking of conductors and ropes, ensuring a smoother, safer, and more controlled stringing operation.

2. Protects Valuable Assets: By preventing kinks and twists, our connector safeguards expensive conductors and pulling ropes from damage, extending their lifespan and reducing replacement costs.

3. Enhanced Operational Efficiency: The reliable swivel action and bend resistance contribute to a more linear and efficient pulling process, minimizing snags and delays during conductor stringing.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized Stringing Accessories.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance OHTL stringing equipment.

Final Summary:

Our Figure-8 Bend-Resistant Swivel Connector is an indispensable, meticulously engineered accessory designed for seamless and damage-free overhead transmission line stringing operations. Its unique 8-shape and integrated swivel functionality effectively prevent kinking and twisting of conductors and ropes under tension, ensuring a smooth, controlled, and efficient pulling process. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your teams with high-quality, dependable, and intelligently designed components that are fundamental to achieving superior efficiency, safety, and project success for all your power line construction needs.

Ensure kink-free and efficient conductor stringing! Explore our Figure-8 Bend-Resistant Swivel Connectors. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific stringing accessory requirements and request a comprehensive quotation for this essential component!
