Fiber Optic Quadrant Stringing Block for Cables up to Φ22mm

Fiber Optic Quadrant Stringing Block: Precision Guidance for $\Phi$22mm & Smaller Optical Fiber Cables

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that the installation of optical fiber cables, particularly in scenarios involving directional changes, corners, or challenging topography, demands specialized stringing equipment that can provide continuous, gentle support. Fiber optic cables, including OPGW (Optical Ground Wire) and ADSS (All-Dielectric Self-Supporting) types, especially those with smaller diameters up to Φ22mm, are highly susceptible to localized stress, kinking, or abrasion if not guided properly. Our Fiber Optic Quadrant Stringing Block for Cables up to $\Phi$22mm is a "Quadrant block" meticulously engineered "to string optical fiber cables of Φ22mm and below" with exceptional care. This multi-roller block ensures smooth passage while conforming to curves, providing unparalleled protection and reducing friction. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this specialized quadrant block exemplifies our unwavering commitment to providing innovative, durable, and highly effective tools that ensure the long-term reliability and high performance of your critical fiber optic infrastructure.

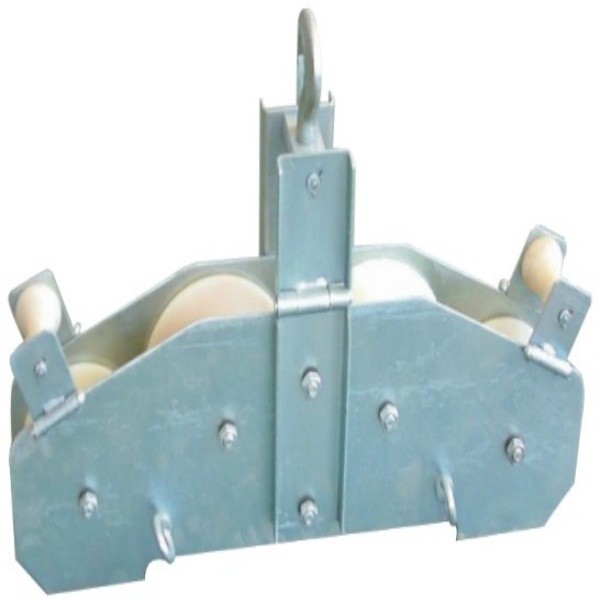

The Fiber Optic Quadrant Stringing Block is characterized by its series of smoothly rotating rollers arranged in a curved, "quadrant" shape. This design allows the fiber optic cable to navigate changes in direction (e.g., around corners of a building, or complex tower configurations) without being subjected to acute bending angles or concentrated friction points common with single-sheave blocks in such scenarios. The multiple rollers ensure that the cable is continuously supported along its curve, distributing pressure evenly and preventing the delicate outer jacket from being scraped, crushed, or damaged. Each roller is typically made from a non-abrasive, low-friction material such as high-density nylon or specialized polymer, further enhancing cable protection. They run on precision-sealed bearings, guaranteeing exceptionally smooth and quiet operation, which reduces pulling tension requirements and contributes to efficient installation. The robust frame, usually constructed from galvanized steel or high-strength aluminum alloy, provides the necessary structural integrity and secure attachment points for versatile mounting. By choosing Ningbo Changshi's Fiber Optic Quadrant Stringing Block, you invest in a critical component that ensures damage-free, efficient, and high-quality installation of your smaller diameter optical fiber cables, even in complex routing scenarios.

Product Features & Benefits:

• Optimal Cable Protection on Curves: The multi-roller "quadrant" design provides continuous, gentle support around bends, preventing kinking, localized stress, and abrasion to delicate fiber optic cable jackets (especially for Φ22mm and below).

• Smooth, Low-Friction Guidance: Each roller is equipped with precision-sealed bearings and made from non-abrasive, low-friction materials (e.g., nylon, UHMW-PE), ensuring exceptionally smooth passage of the cable and reducing pulling tension.

• Versatile for Smaller Diameter Fiber Optic Cables: Specifically designed and highly effective for stringing OPGW, ADSS, and other optical fiber cables with diameters up to Φ22mm.

• Robust & Durable Construction: The sturdy frame is typically made from hot-dip galvanized steel or high-strength aluminum alloy, offering excellent corrosion resistance and structural integrity for demanding field conditions.

• Secure & Adaptable Attachment: Designed with secure mounting points (e.g., chain hangers, clevis fittings) for easy and safe attachment to towers, poles, or temporary structures, allowing for various installation angles.

• Reduces Installation Risks & Costs: By preventing cable damage during stringing, it significantly reduces the need for expensive repairs, splicing, or re-stringing, saving valuable time and resources.

• Enhanced Operational Efficiency: The smooth guidance and reliable performance contribute to faster, more controlled, and efficient cable installation, particularly in challenging directional changes.

• Non-Conductive Rollers (depending on material): Polymer rollers provide an added layer of safety by being non-conductive, an important consideration when working near live lines.

Product Applications:

Our Fiber Optic Quadrant Stringing Block is an indispensable tool for safe and efficient installation of overhead fiber optic cables, particularly in situations involving directional changes:

• Corner & Angle Stringing: Essential for guiding optical fiber cables around corners, through angles, or at tower deviations where straight-line OHTLstringingequipment.com/Stringing-Blocks--Sheaves.html target='_blank'>Stringing Blocks are unsuitable.

• OPGW Stringing with Deviations: Crucial for safely routing OPGW cables on transmission lines that have significant changes in direction between towers.

• ADSS cable installation on Complex Routes: Ideal for deploying ADSS cables along routes with multiple bends, obstacles, or uneven terrain, ensuring smooth passage.

• Substation Entry/Exit Points: Ensures controlled and gentle guidance of fiber optic cables at critical transition points into or out of substations.

• Urban & Congested Area Stringing: Facilitates safe cable routing in environments with limited space or numerous obstacles.

• Any Project Requiring Guided Cable Bending: Applicable wherever sensitive fiber optic cables need to navigate curves with minimal risk of damage and consistent support.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: It is crucial to select the correct quadrant block size that is precisely compatible with the outer diameter of the optical fiber cable being strung. Always verify the block's Safe Working Load (SWL) meets or exceeds the expected cable tension during stringing. Regularly inspect the rollers and frame for wear or damage and ensure bearings run smoothly before each use. Please contact us for detailed datasheets for specific models and their exact specifications, compatible cable diameters, and load capacities.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power line and electrical construction needs. Here’s why our Fiber Optic Quadrant Stringing Block for Cables up to Φ22mm is your ideal choice:

1. Superior Cable Protection on Bends: Its multi-roller quadrant design ensures continuous, gentle support around corners and curves, preventing kinking, localized stress, and abrasion to your sensitive fiber optic cables (up to Φ22mm).

2. Smooth & Efficient Cable Routing: Experience exceptionally low-friction passage, even through directional changes, leading to reduced pulling tension and significantly enhanced stringing efficiency.

3. Specialized for Delicate Fiber Optics: We understand the unique demands of optical fiber cable installation, and this block is tailor-made to meet the highest standards for critical communication infrastructure.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of communication and power infrastructure.

Final Summary:

Our Fiber Optic Quadrant Stringing Block for Cables up to Φ22mm is an indispensable, meticulously engineered tool designed for the safe, smooth, and damage-free passage of smaller diameter optical fiber cables, particularly when navigating curves and directional changes. Its multi-roller quadrant design is fundamental to preventing damage, reducing friction, and preserving the integrity and long-term performance of your critical fiber optic communication infrastructure. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge accessories essential for the success and safety of your complex overhead fiber optic projects.

Navigate complex fiber optic cable routes with confidence! Explore our Fiber Optic Quadrant Stringing Blocks. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific optical fiber cable stringing requirements for cables up to $\Phi$22mm and request a comprehensive quotation for this essential, high-performance tool!
