Optimize OPGW Installation: Combined Quadrant Pulley Block for Flawless Fiber

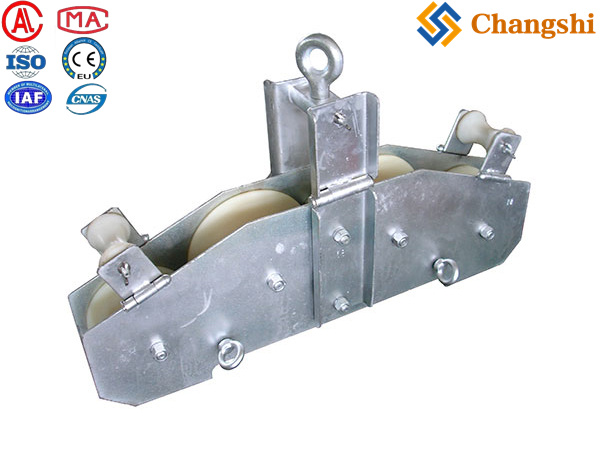

The Combined Type Quadrant Pulley Block for Fiber Optical OPGW is a specialized cable stringing tool designed for the installation of fiber optic cables, specifically Optical Ground Wire (OPGW) cables. It facilitates smooth and safe payout of fiber optic cables during aerial stringing operations.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The Combined Type Quadrant Pulley Block for Fiber Optical OPGW is a specialized cable stringing tool designed for the installation of fiber optic cables, specifically Optical Ground Wire (OPGW) cables. It facilitates smooth and safe payout of fiber optic cables during aerial stringing operations.
-

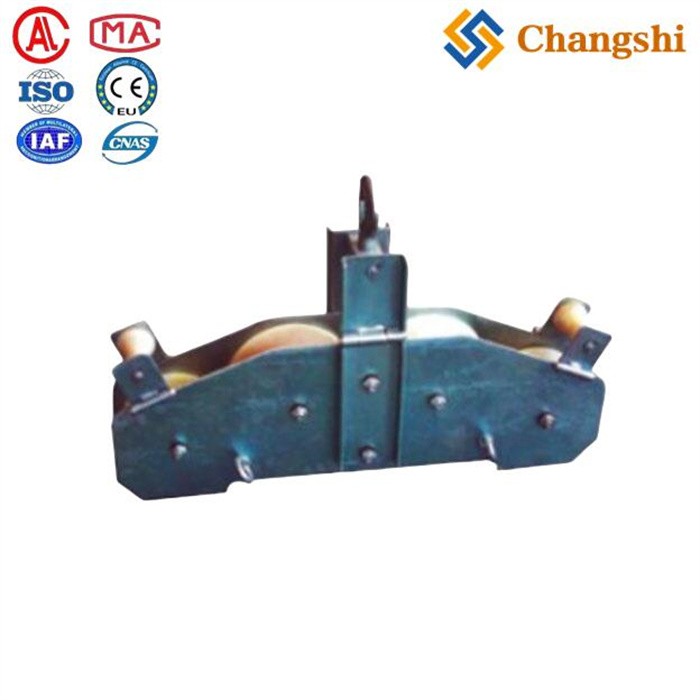

: Quadrant cable block (pulley block) with a four-wheel composite structure.
-
: Used for stringing fiber optic cables, including OPGW cables with diameters less than 22 mm.
-
: 10 kN (kilonewtons), suitable for moderate tension cable stringing.
-
: 570 mm, which helps maintain cable integrity by reducing bending stress.
-
: 760 mm (length) × 120 mm (width) × 480 mm (height).
-
: Approximately 23.5 kg.
-
: Lightweight with a large radius of curvature to protect the fiber optic cable during installation.
-
: Four-wheel composite design to ensure smooth cable movement and reduce friction.
-
-
The quadrant pulley block is designed to guide and support fiber optic cables during aerial installation, preventing damage from sharp bends or excessive tension.
-
Its four-wheel design distributes the load evenly and allows the cable to move smoothly, minimizing wear on the cable sheath.
-
The large curvature radius protects the delicate fiber optic strands inside the cable.
-
Lightweight construction makes it easier to handle on-site.
| Feature | Specification |
|---|---|
| Model | SHZHD10 |
| Rated Load | 10 kN |
| Curvature Radius | 570 mm |
| Dimensions (L×W×H) | 760 × 120 × 480 mm |
| Weight | 23.5 kg |
| Cable Diameter Support | Up to 22 mm |
| Structure | Four-wheel composite |
| Application | Fiber optic cable (OPGW) stringing |
| Certification | ISO |
-
This pulley block is part of the OPGW installation toolset, helping to string fiber optic cables along transmission lines safely and efficiently.
-
It is suitable for use in power grid projects and telecom infrastructure where OPGW cables are deployed.
-
The design ensures minimal mechanical stress on the cable, preserving the optical performance and physical integrity of the fiber.
In conclusion, the Combined Type Quadrant Pulley Block like the SHZHD10 model is an essential tool for OPGW fiber optic cable installation, offering a lightweight, durable, and efficient solution to cable stringing challenges with a 10 kN load capacity and a protective large curvature radius
