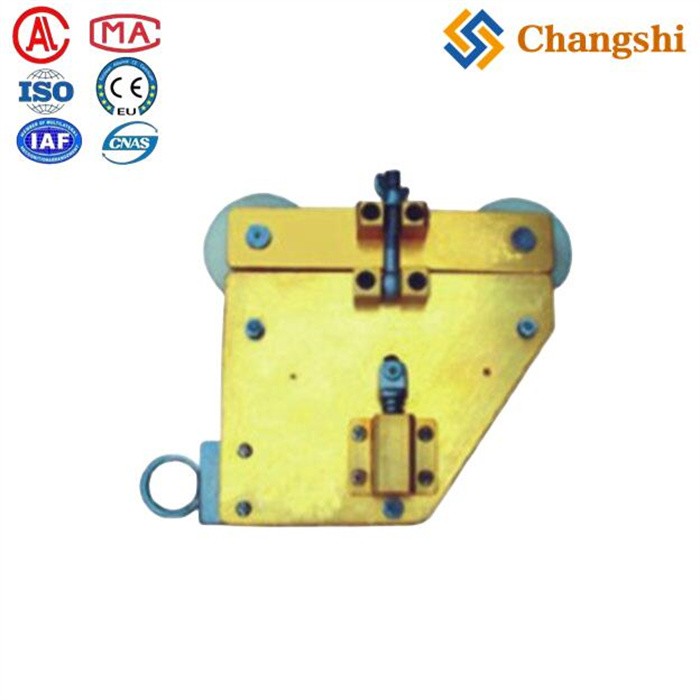

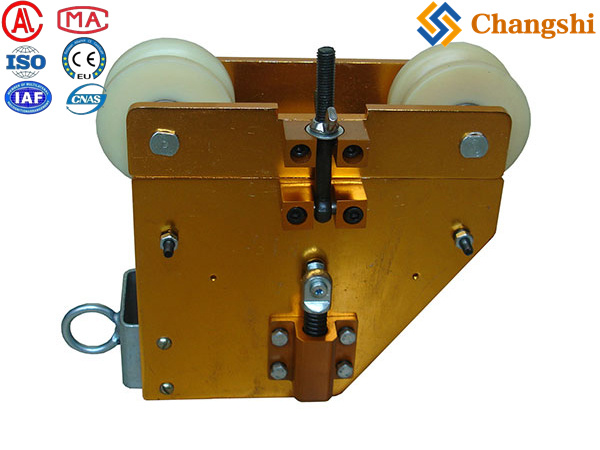

Block Recover Damper Machine For OPGW Stringing Fiber Optic Cables Installation
The Model ZN50 Block Recover Damper Machine is a specialized tool used in the installation of OPGW (Optical Ground Wire) fiber optic cables. Its primary function is to recover the guide rope and double pulley rollers after OPGW stringing operations, ensuring the guide rope remains tight and preventing slack or damage during and after cable installation.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The Model ZN50 Block Recover Damper Machine is a specialized tool used in the installation of OPGW (Optical Ground Wire) fiber optic cables. Its primary function is to recover the guide rope and double pulley rollers after OPGW stringing operations, ensuring the guide rope remains tight and preventing slack or damage during and after cable installation.
-
: 70 N (Newtons)
-
Maximum Diameter Range for String Block Pass: Up to 16 mm
-
: Approximately 285 × 130 × 231 mm
-
: Around 3 kg
-
: Typically steel, ensuring durability and strength for field operations
-
: Acts as a damper to control tension and recover the guide rope smoothly, reducing shock loads and vibrations during stringing
-
: Essential for OPGW cable installation to maintain tension in guide ropes and pulleys, preventing damage to cables and equipment during stringing
-
: Often comes with ISO/CE certifications.
-
: Generally available with short lead times and sufficient production capacity for large projects.
-
| Feature | Specification |
|---|---|
| Model | ZN50 |
| Damping Brake Power | 70 N |
| Max Diameter for Block Pass | Φ16 mm |
| Dimensions (L×W×H) | 285 × 130 × 231 mm |
| Weight | ~3 kg |
| Material | Steel |
| Primary Use | Guide rope and pulley recovery post-stringing |
| Application | OPGW fiber optic cable installation |
This damper machine is crucial for maintaining proper tension and smooth operation of guide ropes during OPGW cable installation, helping to avoid cable damage and ensuring efficient stringing operations.
