822mm Jumbo Stringing Block | Ultimate Conductor Protection Pulley for UHV/HVDC

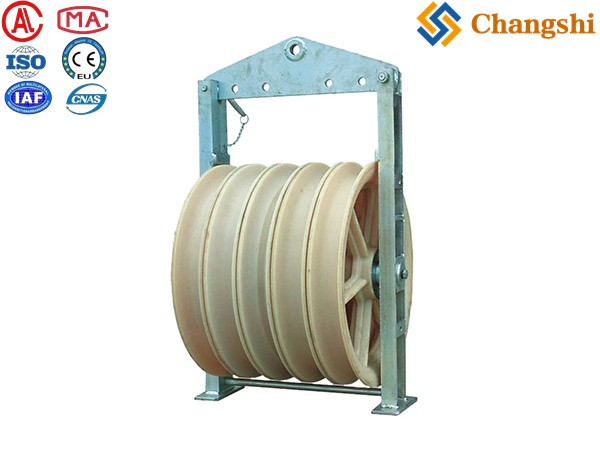

822mm Jumbo Stringing Block: The Ultimate Solution for Conductor Preservation in Mega transmission line Projects

On behalf of Ningbo Changshi Electric Power Machinery Manufacturing Limited, a prominent China manufacturer and global exporter specializing in comprehensive tools and equipment for power lines, substations, electrical construction, and maintenance, we are immensely proud to unveil our flagship 822mm Jumbo Stringing Block. This monumental piece of engineering is at the forefront of OHTLstringingequipment.com/Conductor-Stringing-Equipment.html target='_blank'>conductor stringing technology, purpose-built to address the unique challenges of constructing Ultra-High Voltage (UHV) and High Voltage Direct Current (HVDC) transmission lines that utilize the largest and most complex multi-bundle conductor configurations in the world.

The exceptional 822mm (approximately 32.4 inches) diameter of this stringing block is a revolutionary leap forward, offering the gentlest possible bending radius for conductors. This colossal size is paramount for preserving the mechanical and electrical integrity of extremely valuable and sensitive multi-conductor bundles (e.g., 6, 8, 12, or more conductors per bundle), effectively eliminating the risk of internal stress, outer strand deformation, or surface damage that smaller blocks might cause. Equipped with robust materials, superior load capacity, and ultra-precision bearings, Ningbo Changshi's 822mm Jumbo Stringing Block ensures exceptionally low friction, unwavering stability, and flawlessly smooth passage of conductors, guaranteeing optimal performance and longevity for your critical power infrastructure projects on an unprecedented scale.

Product Features & Benefits:

The Ningbo Changshi 822mm Jumbo Stringing Block is a masterclass in engineering, designed for the pinnacle of conductor protection, supreme performance, and operational excellence in the most extreme stringing applications.

• Unmatched Conductor Preservation (822mm Diameter): This extraordinary sheave diameter provides the ultimate bending radius for the largest single conductors and the most intricate multi-bundle configurations, virtually eliminating bending stress and ensuring pristine conductor condition during payout.

• Zero Conductor Damage Risk: Meticulously designed groove profiles, often with specialized linings (e.g., high-density polyurethane or aluminum alloy with intricate profiling), cradle conductors perfectly, preventing any form of abrasion, kinking, or deformation, safeguarding investments in high-value conductor materials.

• Extreme Load Capacity & Unyielding Durability: Fabricated from aerospace-grade high-strength forged aluminum alloys or heavy-duty structural steel, the frame and sheave are engineered to bear immense dynamic and static loads encountered during the stringing of the heaviest and longest UHV/HVDC lines.

• Ultra-Precision Sealed Tapered Roller Bearings: Incorporates top-tier, precision-machined, sealed tapered roller bearings that provide near-zero friction. This ensures exceptionally smooth, silent conductor movement, minimizes pulling tension requirements, and offers unparalleled longevity with minimal maintenance.

• Fail-Safe Conductor Retention System: Features an advanced, multi-point, interlocked safety latch or bolt-and-nut closure system that provides absolute security, preventing conductor escape even under extreme wind loads, vibrations, or unforeseen dynamic events.

• Superior Corrosion & Environmental Resistance: All components undergo rigorous surface treatments, including industrial-grade anodization for aluminum, and heavy-duty hot-dip galvanization for steel, ensuring maximum resistance against corrosion, UV radiation, and harsh environmental elements.

• Optimal Dynamic Alignment: Equipped with a heavy-duty, multi-axis Swiveling attachment eye or clevis, allowing the block to precisely self-align with the pulling forces and sag curve, thereby distributing loads evenly and reducing stress on both conductors and tower structures.

• Modular & Maintainable Design: While robust, the design facilitates straightforward inspection and component replacement, ensuring minimal downtime and extended operational life in the field.

Product Applications:

Our 822mm Jumbo Stringing Block is indispensable for the most colossal and critical power transmission infrastructure projects:

• Ultra-High Voltage (UHV) & High Voltage Direct Current (HVDC) Line Construction: Specifically designed for installing multi-bundle conductors (e.g., 4x, 6x, 8x, or more bundles) on next-generation transmission systems, ensuring maximum efficiency and conductor integrity.

• Mega River, Valley, and Mountain Crossings: Absolutely essential for extremely long spans (e.g., several kilometers) where minimizing conductor sag, controlling tension, and preventing any form of damage due to the extensive length of the pull are paramount.

• Installation of Super-Sized & Hyper-Sensitive Conductors: Provides the ultimate protection for custom-designed, very large diameter conductors or those with highly sensitive coatings.

• Record-Breaking Tension Stringing Projects: Perfectly paired with the highest capacity OHTLstringingequipment.com/Hydraulic-Conductor-Tensioners.html target='_blank'>Tensioners and pullers, enabling seamless operation under the most extreme tension levels.

• International Grid Interconnection Projects: Crucial for large-scale, cross-border transmission lines that demand the highest levels of reliability and efficiency during construction.

• Re-conductoring of Critical EHV/UHV Lines: Enables the safest and most efficient replacement of conductors on vital existing infrastructure, minimizing system downtime for essential grid upgrades.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited or Partner With Us?

At Ningbo Changshi, we offer comprehensive one-stop supply and services for both overhead transmission line wire cable conductor tension stringing equipment and underground cable laying equipment. Our unwavering commitment to global excellence is reflected in:

1. Engineering for the Future of Power: As a prominent China manufacturer, we don't just produce equipment; we engineer solutions that anticipate and meet the demands of tomorrow's energy infrastructure. Our 822mm Jumbo Stringing Block is a testament to our leadership in developing specialized tools for the most advanced UHV/HVDC projects.

2. Trusted Global Exporter & Unrivaled Supply Chain: We have meticulously built a formidable reputation as a trusted global exporter, consistently providing robust equipment and mission-critical accessories worldwide. Our dedicated international team ensures seamless logistics, punctual delivery, and reliable supply of our largest-capacity blocks, guaranteeing uninterrupted progress on your highest-stake projects.

3. Holistic Solutions for Mega Projects: Our expansive product portfolio encompasses everything from the most powerful Tensioners and pullers to essential jumbo Stringing Blocks and specialized tools. By consolidating your procurement with us, you ensure perfect equipment synergy, streamline project management, and achieve unparalleled operational efficiency.

4. Uncompromising Commitment to Conductor Longevity & Grid Reliability: We understand that conductor integrity is the bedrock of a reliable transmission grid. Our 822mm block is designed with an uncompromising focus on preserving conductor health during installation, directly translating to extended line lifespan, reduced maintenance, and superior grid performance for decades.

5. Strategic Partnership for Global Leadership: We firmly believe in forging strong, enduring strategic partnerships. Our highly experienced engineers and project specialists work intimately with you to navigate the complexities of your ultra-high voltage projects, offering not just products, but unparalleled expertise and tailor-made solutions to ensure the absolute success, safety, and operational excellence of your monumental power infrastructure developments. Partner with Ningbo Changshi for a future-proof advantage.

Technical Data Sheet: 822mm Jumbo Stringing Block

Note: Specific working load limits, breaking loads, and exact dimensions are highly dependent on the specific model, material choices, and advanced design optimizations for various multi-bundle configurations. For the most current and precise technical data, or to specify a stringing block for your particular UHV/HVDC project requirements, please contact Ningbo Changshi Electric Power Machinery Manufacturing Limited directly.

Final Summary:

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we provide the ultimate in specialized equipment to ensure the unprecedented success and long-term integrity of your most monumental power infrastructure projects. Our 822mm Jumbo Stringing Block is a mission-critical investment, meticulously engineered to provide unparalleled conductor protection, dramatically reduce friction, and facilitate impeccably smooth and efficient stringing operations for the largest and most complex transmission lines.

Secure the future reliability of your power grid. Choose Ningbo Changshi's 822mm Jumbo Stringing Block for the absolute pinnacle of conductor protection and operational efficiency on your most ambitious UHV/HVDC projects. Contact our expert team today to discuss your specific requirements, request a comprehensive quote, or place an order. Let Ningbo Changshi be your trusted partner for superior overhead transmission line equipment that redefines industry standards worldwide!
