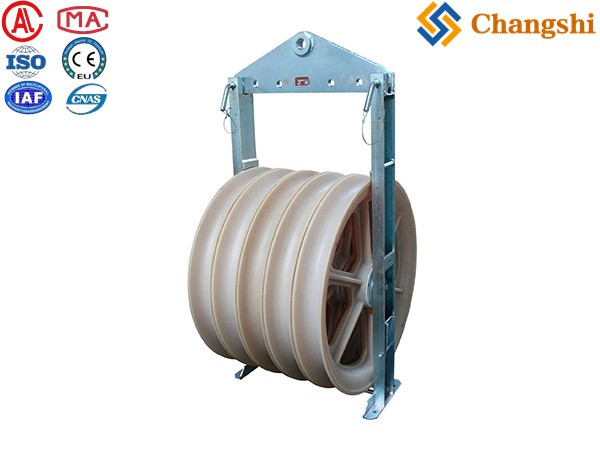

660mm Ultra-Large Diameter Stringing Block: The Apex of Conductor Protection for Extreme OHTL Projects

On behalf of Ningbo Changshi Electric Power Machinery Manufacturing Limited, a prominent China manufacturer and global exporter specializing in comprehensive tools and equipment for power lines, substations, electrical construction, and maintenance, we are immensely proud to introduce our formidable 660mm Ultra-Large Diameter Stringing Block. This meticulously engineered block is not merely an accessory; it is a critical safeguard for the most valuable and sensitive conductors deployed in Extra-High Voltage (EHV) and Ultra-High Voltage (UHV) overhead transmission line (OHTL) projects worldwide.

The exceptional 660mm diameter of this stringing block sets it apart, providing the ultimate solution for minimizing bending stress and protecting the integrity of very large single conductors or complex multi-bundle configurations (such as 4-, 6-, or even 8-conductor bundles). By ensuring a vastly gentler bend radius, our 660mm block effectively eliminates conductor deformation, outer strand damage, and internal stress, which are common issues with smaller blocks. This translates directly into enhanced long-term line performance, extended conductor lifespan, and significant cost savings by preventing costly material damage during installation. Featuring robust construction, superior load capacity, and precision-engineered components, Ningbo Changshi's 660mm Ultra-Large Diameter Stringing Block guarantees the smoothest, safest, and most reliable conductor passage even through the most challenging spans and terrains.

Product Features & Benefits:

The Ningbo Changshi 660mm Ultra-Large Diameter Stringing Block is a testament to our commitment to engineering excellence, designed for maximum conductor protection and operational efficiency in the most demanding environments.

• Ultimate Conductor Protection (660mm Diameter): The expansive 660mm (approximately 26-inch) sheave diameter provides the largest possible bending radius for conductors. This is absolutely critical for safeguarding very large or delicate conductors and complex bundles (e.g., 4x or 6x bundles) from kinks, abrasion, or permanent deformation during the entire stringing process.

• Significantly Reduced Bending Stress: The generous diameter dramatically lowers the stress exerted on conductor strands as they pass through the block, preserving their mechanical and electrical properties, and contributing directly to the longevity of the transmission line.

• High-Capacity, Multi-Conductor Groove: Designed with a deep, smooth, and often elastomer-lined groove, optimized to securely seat and guide the largest single conductors or multiple conductors within a bundle configuration without pinching or damage.

• Exceptional Durability & Load Bearing: Constructed from premium-grade, high-strength aluminum alloy or specialized steel, the frame and sheave are built to withstand immense pulling forces and continuous heavy loads typical of EHV/UHV stringing operations.

• Precision Sealed Tapered Roller Bearings: Equipped with heavy-duty, meticulously sealed tapered roller bearings, offering ultra-low friction, superior load distribution, and requiring minimal maintenance. This ensures incredibly smooth, quiet rotation and consistent tension control, even under extreme conditions.

• Robust Safety Locking Mechanism: Features a highly secure, fail-safe locking system (e.g., heavy-duty spring-loaded lock pin with secondary safety latch) that firmly retains the conductor or pulling rope within the sheave, preventing accidental dislodgement even in high winds or during dynamic movements.

• Enhanced Corrosion Resistance: All components are either inherently corrosion-resistant or treated with industrial-grade protective coatings (e.g., hot-dip galvanization, anodization) to ensure long-term integrity and performance in all weather conditions.

• Optimized Swivel & Attachment: Incorporates a high-strength Swiveling eye or specialized clevis attachment to allow for correct alignment with pulling forces, reducing torsional stress on the tower structure and the block itself.

• Designed for Extreme Environments: Built to operate reliably in a wide range of temperatures, from extreme cold to intense heat, and resistant to environmental contaminants.

Product Applications:

Our 660mm Ultra-Large Diameter Stringing Block is purpose-built for the most demanding and critical power line construction scenarios:

• Ultra-High Voltage (UHV) Transmission line stringing: Essential for installing the heaviest and largest single conductors or multi-bundle (e.g., 4-, 6-, 8-conductor) configurations on 500kV, 750kV, 1000kV, and higher voltage lines.

• Major River, Canyon, and Mountain Crossings: Ideal for extremely long spans where minimizing sag, maintaining precise tension, and protecting conductors from damage due to limited clearances are paramount.

• Installation of Sensitive & High-Value Conductors: Provides the gentlest handling for specialized conductors, ensuring their integrity and preventing costly material replacement.

• High-Tension Stringing Projects: Perfectly matched with high-capacity Tensioners and pullers, ensuring maximum efficiency and control during very high-tension stringing methods.

• Large-Scale Infrastructure Development: Crucial for new grid expansion projects that require the deployment of maximum capacity transmission lines.

• Re-conductoring of Critical EHV/UHV Lines: Enables safe and efficient replacement of conductors on vital existing infrastructure, minimizing system downtime.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited or Partner With Us?

At Ningbo Changshi, we offer comprehensive one-stop supply and services for both overhead transmission line wire cable conductor tension stringing equipment and underground cable laying equipment. Our unwavering commitment to global excellence is reflected in:

1. Specialized for Extreme Demands: As a prominent China manufacturer, we don't just produce equipment; we engineer solutions for the most challenging power infrastructure projects. Our 660mm Large Diameter Stringing Block is a direct result of this focus, designed for the unique needs of EHV and UHV line construction.

2. Trusted Global Exporter & Robust Supply Chain: We have meticulously built a formidable reputation as a trusted global exporter, consistently providing robust equipment and critical accessories worldwide. Our dedicated international team ensures seamless logistics, punctual delivery, and reliable supply of our highest-capacity blocks, guaranteeing uninterrupted project flow on your most vital projects.

3. Comprehensive, Integrated Solutions Provider: Our expansive product portfolio covers everything from ultra-powerful Tensioners and pullers to essential large-diameter Stringing Blocks and specialized tools. By consolidating your procurement with us, you ensure perfect equipment compatibility, simplify project management, and optimize overall operational efficiency.

4. Unwavering Dedication to Conductor Integrity & Long-Term Performance: We prioritize the protection of your most valuable assets – your conductors. Our largest diameter blocks are a testament to this, actively preserving conductor health during installation, which directly translates to extended line lifespan and superior grid reliability.

5. Strategic Partnership for Unparalleled Success: We firmly believe in forging strong, enduring strategic partnerships. Our highly experienced engineers and project specialists work intimately with you to understand the intricate challenges of your high-voltage projects, offering not just products, but expert advice and tailor-made solutions to ensure the absolute success and safety of your power infrastructure development. Partner with Ningbo Changshi for superior performance, ultimate protection, and assured peace of mind.

Technical Data Sheet: 660mm Ultra-Large Diameter Stringing Block

Note: Specific working load limits, breaking loads, and exact dimensions will vary based on the specific model, material choices, and design optimizations for multi-bundle configurations. For the most current and precise technical data, or to specify a stringing block for your particular EHV/UHV project requirements, please contact Ningbo Changshi Electric Power Machinery Manufacturing Limited directly.

Final Summary:

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we provide the ultimate in specialized equipment to ensure the success and long-term integrity of your most critical power infrastructure projects. Our 660mm Ultra-Large Diameter Stringing Block is a paramount investment, meticulously engineered to protect your valuable conductors, drastically reduce friction, and facilitate impeccably smooth and efficient stringing operations for the largest and most complex transmission lines.

Achieve unparalleled conductor protection and operational efficiency on your most demanding EHV/UHV stringing projects with Ningbo Changshi's 660mm Ultra-Large Diameter Stringing Block. Contact our expert team today to discuss your specific requirements, request a comprehensive quote, or place an order. Let Ningbo Changshi be your trusted partner for superior overhead transmission line equipment that sets new industry benchmarks worldwide!
