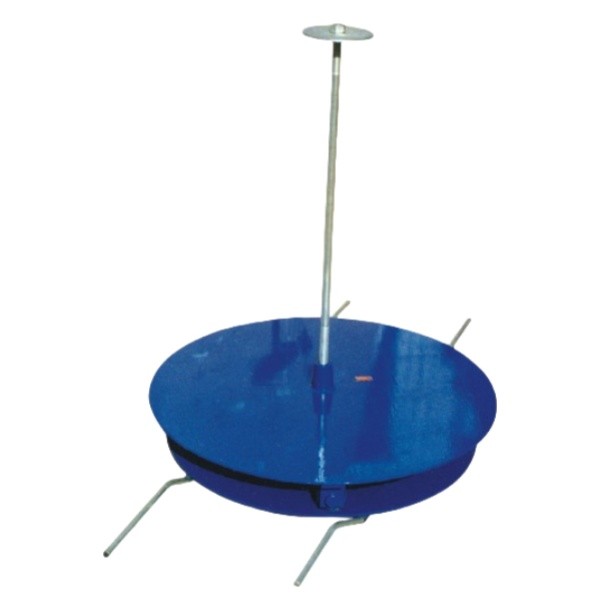

Upright Cable Drum Payout Turntable: Eliminating Twist for Smooth and Efficient Cable Deployment

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we recognize that the integrity of high-value cables is paramount during installation, and preventing twisting is a critical factor for long-term performance. Our Upright Cable Drum Payout Turntable is a meticulously engineered, heavy-duty solution designed to support large and heavy cable drums in an upright position, allowing the cable to be drawn off smoothly from the top without imparting any rotational stress or twist to the cable itself. As a prominent China manufacturer and exporter specializing in tools and equipment for power lines, substations, electrical construction, and maintenance, and offering comprehensive one-stop supply for both overhead transmission line (OHTL) and underground cable laying equipment, this upright payout turntable exemplifies our unwavering commitment to precision, material protection, and superior operational efficiency for your most demanding cable deployment tasks.

When cables are pulled directly from a rotating drum in a horizontal orientation, they can inherently introduce twists, especially with multi-core or sensitive cables. This twisting can lead to internal damage, reduced performance, and shortened lifespan. Our Upright Cable Drum Payout Turntable solves this by keeping the cable drum stationary on a rotating platform. The cable is then drawn off from the top of the drum while the entire turntable assembly rotates, allowing the cable to unspool naturally without any torsional stress. This robust unit is designed to handle significant weight, featuring a stable base and high-capacity bearings to ensure smooth, effortless rotation even with massive drums. It is an indispensable tool for underground cable laying, substation wiring, and any application where preserving cable integrity and preventing twist is crucial, significantly enhancing both the quality of installation and the speed of deployment.

Product Features & Benefits:

• Anti-Twist Payout Mechanism: The core benefit; the drum remains upright while the entire turntable rotates, allowing cable to be drawn off without inducing any twist, protecting internal conductors and insulation.

• Heavy-Duty Load Capacity: Engineered to safely support large and very heavy cable drums, accommodating the significant weights of power, control, and communication cables.

• Smooth & Effortless Rotation: Equipped with high-quality, heavy-duty bearings and a precision-engineered rotating platform to ensure seamless, low-friction movement even under maximum load.

• Robust & Stable Construction: Manufactured from reinforced structural steel, providing exceptional durability, resistance to tipping, and reliable performance in demanding field conditions.

• Damage-Free cable handling: Prevents kinks, twists, and internal stress on the cable, extending its service life and maintaining its performance characteristics.

• Versatile Drum Compatibility: Designed to accommodate a wide range of cable drum diameters and widths, making it adaptable for various types and sizes of cables.

• Easy Drum Loading: Often features ramp access or a low loading height to facilitate straightforward placement of heavy cable drums onto the turntable.

• Enhanced Safety: A stable, controlled payout process reduces the risk of accidents associated with unstable drums or manual handling.

• Corrosion Resistance: Typically finished with durable industrial paint or galvanization to protect against rust and environmental wear, ensuring suitability for outdoor use.

Product Applications:

Our Upright Cable Drum Payout Turntable is an essential piece of equipment for various demanding cable deployment operations where twist prevention is key:

• Underground Power Cable Laying: Crucial for installing medium and high-voltage power cables into conduits, ducts, or trenches, ensuring no twist is imparted.

• Substation Wiring: Ideal for managing large multi-core control cables and feeder cables within substations where precise, twist-free payout is required.

• Telecommunications & Fiber Optic cable installation: Essential for deploying sensitive fiber optic or data cables where twisting can severely degrade performance.

• Industrial Plant Cabling: Used for installing heavy control cables, power cables, and instrumentation lines within industrial facilities.

• Marine & Offshore Cable Deployment (Land-Based): Applicable for managing large reels of umbilical or power cables onshore before subsea deployment.

• Any Application Requiring Twist-Free Unreeling: Wherever cable integrity from twisting is a concern during payout, this turntable provides the solution.

Technical Data Sheet:

Note: Specific technical specifications, including exact drum capacity, dimensions, and weight, will vary depending on the model and intended application. It is crucial to select an upright payout turntable that is rated to safely support your heaviest and largest cable drums. Adherence to strict safety protocols during setup, loading, and operation is paramount. Please contact us for detailed datasheets for specific product variants and custom requirements.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to precise, high-quality, and comprehensive solutions for critical cable deployment. Here’s why we are your ideal choice:

1. Guaranteed Twist-Free Cable Payout: Our upright turntable design fundamentally eliminates rotational stress, ensuring optimal cable integrity and maximizing performance and lifespan.

2. Robust Capacity for Heavy Drums: Engineered to safely handle massive cable weights, providing unparalleled stability and reliability for your most demanding projects.

3. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead and underground power line projects, streamlining your entire procurement process with a single, reliable source.

4. Uncompromising Quality & Enduring Reliability: Every Upright Payout Turntable undergoes the most stringent quality control and load testing, ensuring it delivers unyielding reliability and consistent peak performance even in the most severe field conditions.

5. Enhanced Efficiency & Cable Longevity: By preventing costly cable damage from twisting and facilitating smooth, controlled payout, our turntables contribute to faster project completion, reduced material waste, and superior long-term installation quality.

Final Summary:

Our Upright Cable Drum Payout Turntable is an indispensable, heavy-duty solution meticulously engineered to support and facilitate the smooth, twist-free unwinding of large cable drums. Its unique design protects cable integrity, enhances operational efficiency, and provides superior stability for critical installations in underground cable laying, substation wiring, and any application where preventing cable distortion is paramount. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to equip your operations with high-quality, dependable, and intelligently designed solutions for your most demanding cable deployment needs.

Protect your valuable cables and eliminate twisting during payout! Explore our Upright Cable Drum Payout Turntables. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific anti-twist cable unwinding needs and request a comprehensive quotation!
