Underground Cables Laying Pulling Installation Accessories Cable Entrance Roller
The C Series Cable Entrance Protection Roller is a specialized cable guiding device designed to protect cables and pulling ropes during installation, particularly at duct or pit entrances.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video

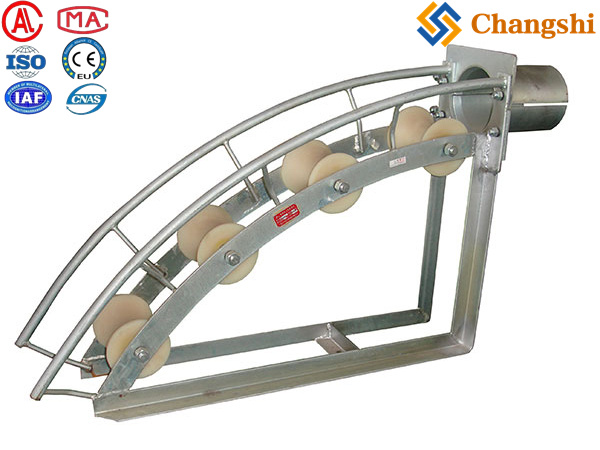

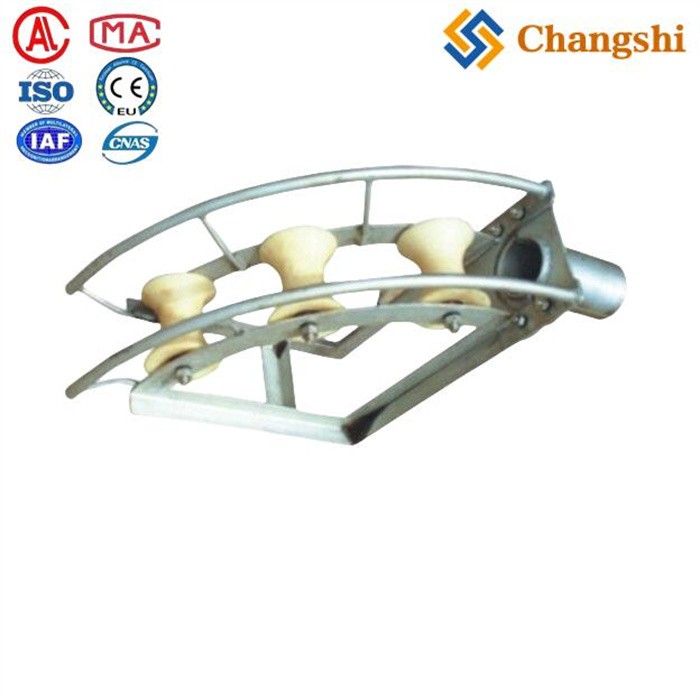

The C Series Cable Entrance Protection Roller is a specialized cable guiding device designed to protect cables and pulling ropes during installation, particularly at duct or pit entrances.
-
: Equipped with three nylon rollers for smooth cable movement and reduced friction.
-
: Fixed at 450 mm, which helps maintain the cable’s minimum bend radius and prevents damage.
-
: The roller assembly can be locked in place to ensure stable positioning during cable pulling.
-
: Can be placed at the tube orifice at any arbitrary angle, allowing versatile installation to suit different cable entry configurations.
-
: Available in models accommodating tube diameters from 80 mm up to 200 mm.
-
: Varies by model, typically ranging from 17 kg to 23 kg depending on tube diameter.
-
: Rollers are made of durable nylon, and the frame is designed for robust use in harsh environments.
-
: Used extensively at cable pitheads, manholes, duct entries, or other cable entry points to protect cables and pulling ropes from abrasion and sharp bends during installation.
| Model | Tube Diameter (mm) | Weight (kg) |
|---|---|---|
| SH80C | 80 | 17 |
| SH90C | 90 | 18 |
| SH100C | 100 | 20 |
| SH130C | 130 | 20.5 |
| SH150C | 150 | 21 |
| SH200C | 200 | 23 |
The C Series Cable Entrance Protection Roller is a lockable, three-nylon-roller assembly with a 450 mm curvature radius, designed to protect cables and pulling ropes at duct or pit entrances. Its adjustable mounting angle and robust construction make it ideal for reducing cable damage and easing installation in underground cable projects.
