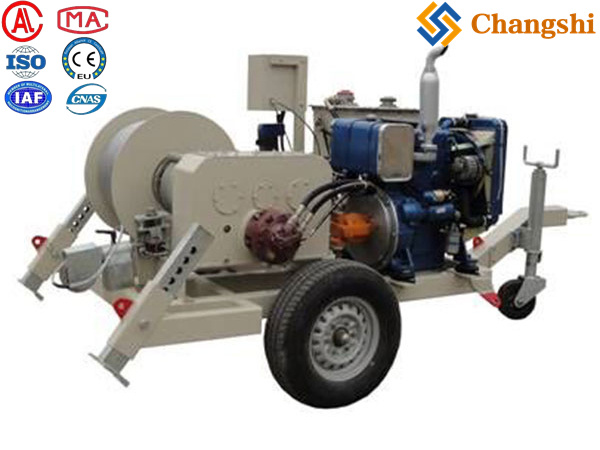

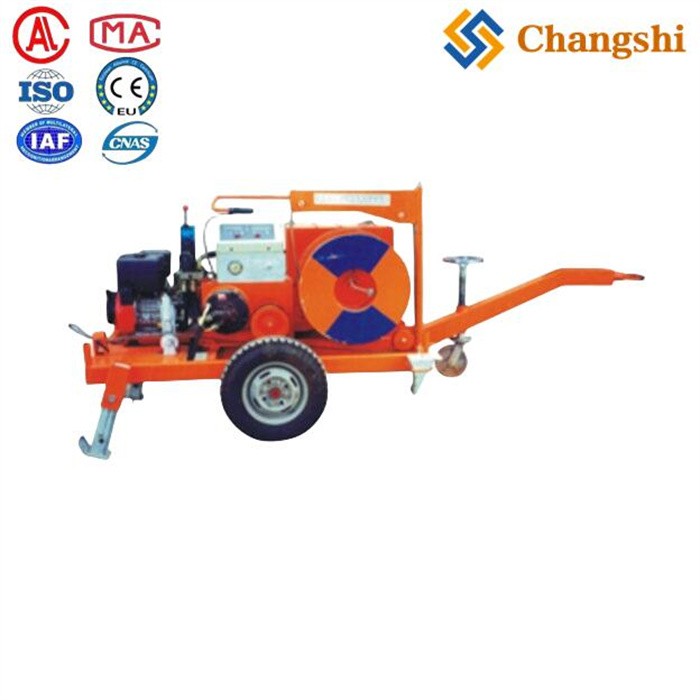

DQ Cable Laying Pulling Winch Puller Machine For Underground Cables Installation
The Model DQ Cable Puller is a type of electric or mechanical cable pulling winch used primarily for underground cable installation.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The Model DQ Cable Puller is a type of electric or mechanical cable pulling winch used primarily for underground cable installation.
-
: Designed to pull electrical or telecom cables through ducts, trenches, or conduits during underground cable laying projects.
-
: Usually electric motor-driven for consistent pulling force, sometimes available in hydraulic or diesel variants for heavier applications.
-
: Typical cable pullers in this category offer pulling forces ranging from several kN up to tens of kN, suitable for medium to heavy cable installations.
-
: Compact and portable design to facilitate use in confined underground spaces.
-
: Equipped with speed and force controls, often with remote or pendant controls for operator safety and precision.
-
: Include overload protection, automatic brakes, and rope guides to prevent cable damage.
Model DQ cable puller
|
Order number |
21131 |
21135 |
|
|
Model |
DQ20 |
DQ40 |
|
|
Continuous linepull (kN) |
20 |
40 |
|
|
Linespeed (m/min) |
0～14 |
0～12 |
|
|
Steelrope diameter (mm) |
Φ9.3 |
Φ11 |
|
|
Steelrope length (m) |
600 |
650 |
|
|
Motor |
Power (hp) |
13 |
24 |
|
Speed (rpm) |
1800 |
2000 |
|
|
Dimension (m) |
3.27×1.13×1.65 |
3.67×1.80×1.50 |
|
|
Weight (kg) |
650 |
1100 |
|
·uses :to string earthground cable .
·feature :
1.hydraulic transmission ,infinitely variation speed .overpull protection
2.automatic rope winding .
3.mount pull length measure equipment.
For reference, similar cable pullers like the Model LJD or Model DJ electric winches provide pulling forces from 10 kN to 40 kN with controlled speeds around 6.5 m/min, designed specifically for underground cable installation, and are often used in conjunction with cable pushers to reduce cable strain.
If you need detailed technical data or specifications for the Model DQ cable puller, please contact us for catalog or technical datasheets directly, as we will provide exact pulling force, motor power, cable capacity, and operational features.
In summary, the Model DQ cable puller is a specialized tool for underground cable installation, designed to provide controlled, reliable pulling force to safely and efficiently install cables in ducts or trenches.
