Underground Cables Laying Installation Handling Device Tools Cable Ground Roller

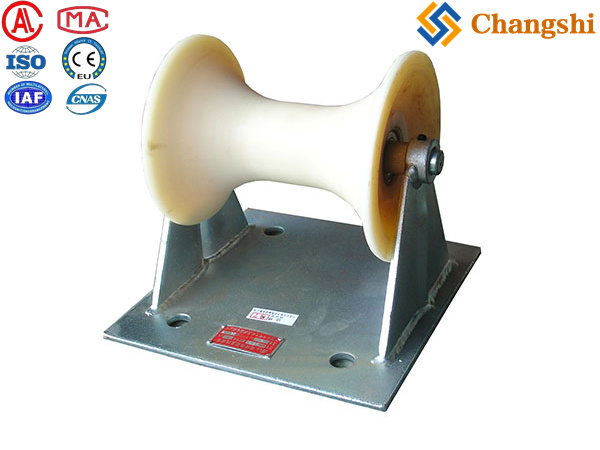

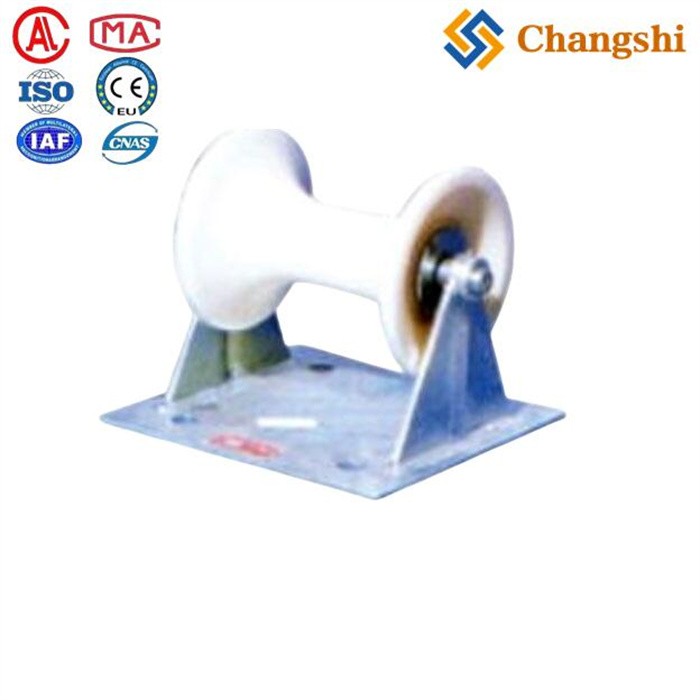

A Cable Ground Roller with Steel Plate Support is a cable handling device designed to protect cables during installation by providing smooth, low-friction guidance and support, particularly in underground or trench environments.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A Cable Ground Roller with Steel Plate Support is a cable handling device designed to protect cables during installation by providing smooth, low-friction guidance and support, particularly in underground or trench environments.
-
: Constructed with a steel plate support, offering a sturdy and durable base for the roller assembly.
-
: Available with either aluminum rollers or nylon rollers. Models with an "N" suffix indicate nylon rollers, while those without are aluminum.
-
: Typically rated for 5 kN (kilonewtons) load capacity, suitable for medium to large cables.
-
: Designed for cables with diameters ranging from 150 mm to 200 mm.
-
: Varies by model and roller type, generally between 3.7 kg and 8.4 kg.
-
: Used to support and guide cables during pulling or laying operations in trenches, pits, or on the ground, preventing cable damage from abrasion or sharp bends.
-
: Steel plate support is often galvanized or treated for corrosion protection to withstand harsh environments.
| Model | Roller Type | Rated Load (kN) | Cable Diameter (mm) | Weight (kg) |
|---|---|---|---|---|
| SHL1B | Aluminum Roller | 5 | 150 | 5.5 - 5.6 |
| SHL1BN | Nylon Roller | 5 | 150 | 3.7 - 4.4 |
| SHL2BN | Nylon Roller | 5 | 160 | 5.5 - 5.6 |
| SHL3BN | Nylon Roller | 5 | 200 | 8.0 - 8.4 |
-
Provides stable and smooth cable support to reduce pulling tension.
-
Protects cable insulation from mechanical damage and abrasion.
-
Suitable for use in confined spaces and trenches.
-
Lightweight and portable for easy handling on site.
-
Durable steel plate support ensures long service life.
The Cable Ground Roller with Steel Plate Support is a robust cable guide featuring a steel plate frame and either aluminum or nylon rollers. It supports cables up to 200 mm diameter with a 5 kN load rating, providing smooth, low-friction guidance to protect cables during underground installation or pulling operations. This type of roller is essential for maintaining cable integrity and easing cable handling in demanding environments.
