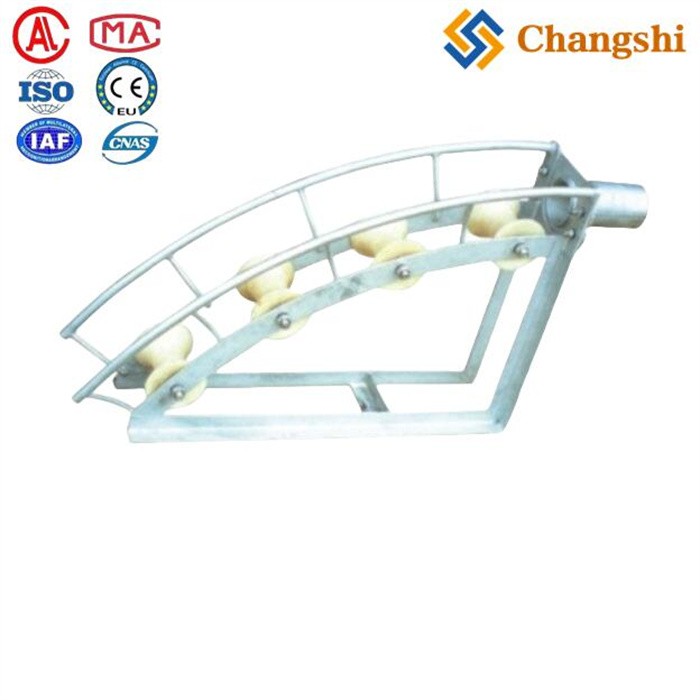

Underground Cables Laying Installation Guiding Device Entrance Protection Roller
The C1 Series Cable Entrance Protection Roller is a cable guiding device designed to protect cables and pulling ropes during underground cable installation, especially at duct or pit entrances.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The C1 Series Cable Entrance Protection Roller is a cable guiding device designed to protect cables and pulling ropes during underground cable installation, especially at duct or pit entrances.
-
: Four rollers arranged to provide smooth cable guidance.
-
: Large radius of 1000 mm, which helps maintain the cable’s minimum bend radius and prevents damage from sharp bends.
-
: Rollers are typically made of nylon, offering low friction and protecting cable insulation.
-
: The roller assembly can be placed at the tube orifice at an arbitrary angle and is lockable, allowing flexible positioning to suit different installation angles.
-
: Suitable for ducts or tubes with diameters ranging from 80 mm to 200 mm.
-
: Used primarily at cable entrances in underground installations to reduce mechanical stress on cables and pulling ropes during installation.

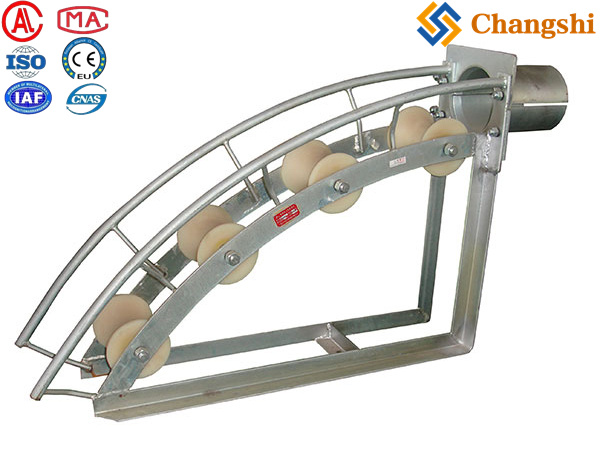

C1 series cable entrance protection roller
|
Order number |
Model |
Tube diameter (mm) |
Weight (kg) |
|
21261 |
SH80C1 |
80 |
24 |
|
21262 |
SH90C1 |
90 |
25 |
|
21263 |
SH100C1 |
100 |
26.5 |
|
21264 |
SH130C1 |
130 |
27.5 |
|
21265 |
SH150C1 |
150 |
28.5 |
·features :four roller .the curvature radius is 1000mm.the roller can be placed in tube orifice at arbitrary angle .lockable .nylon roller.
The C1 Series Cable Entrance Protection Roller features four nylon rollers with a large 1000 mm curvature radius, designed to safeguard cables and pulling ropes at duct or pit entrances by ensuring smooth, low-friction guidance around bends. Its adjustable, lockable mounting makes it versatile for various underground cable installation scenarios.
