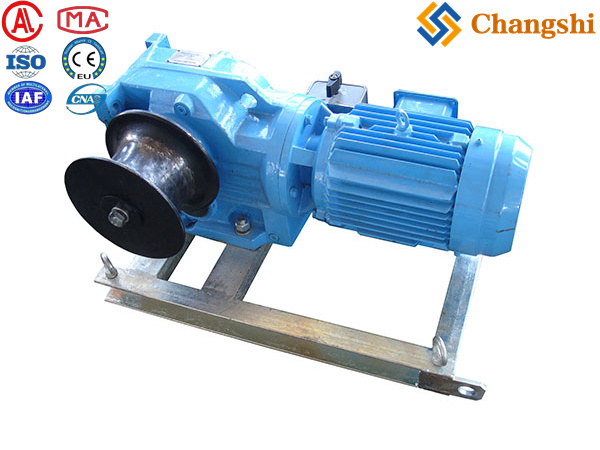

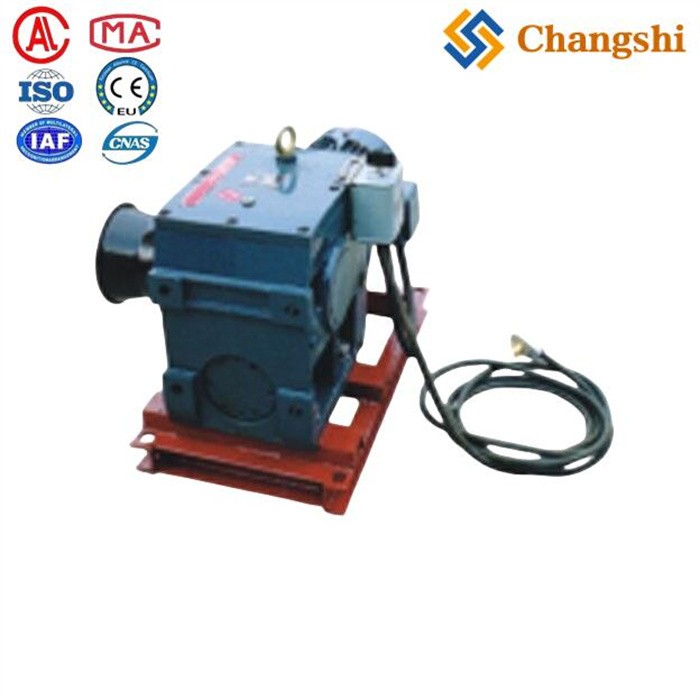

The Model LJD Cable Puller is an electric winch specifically designed for pulling underground cables in trenches or on the ground during cable laying projects. It is commonly used alongside a caterpillar cable pusher to facilitate efficient and safe underground cable installation.
-
: Used to pull underground power or telecom cables, typically positioned near manholes or cable entry points.
-
: Electric motor-driven, with options for diesel or petrol engines in some variants.
-
:
| Model | Continuous Pull Force (kN) | Pull Speed (m/min) | Power (kW) | Weight (kg) |
|---|---|---|---|---|
| LJD1 | 10 | 6.5 | 2.2 | 118 |
| LJD2 | 20 | 6.5 | 4.0 | 150 |
| LJD3 | 30 | 6.5 | 4.0 | 200 |
-
: Around 6.5 meters per minute, suitable for controlled cable laying.
-
: Works in tandem with caterpillar pushers to reduce cable stress and facilitate smooth cable feeding underground.
-
: Compact and portable, designed for use in cable trenches or on the ground.
-
: Diesel or petrol engine-powered winches with higher pulling force (up to 50 kN) are also available for more demanding applications.
-
The LJD cable puller is widely used in underground cable laying projects for medium to high voltage cables.
-
It is placed near the pulling end (e.g., manhole) to pull cables through ducts or trenches.
-
When combined with caterpillar pushers, it helps reduce mechanical stresses on the cable, improving installation safety and cable longevity.
In summary, the Model LJD Cable Puller is a reliable, electric-powered winch system designed for underground cable installation, offering various models with pulling capacities from 10 kN to 30 kN and suitable for use with cable pushers to ensure efficient and damage-free cable laying in trenches or ducts.
