Tri-Roller Corner Cable Guide with Nylon Rollers

Tri-Roller Corner Cable Guide: The Precision Solution for Navigating Trench Bends

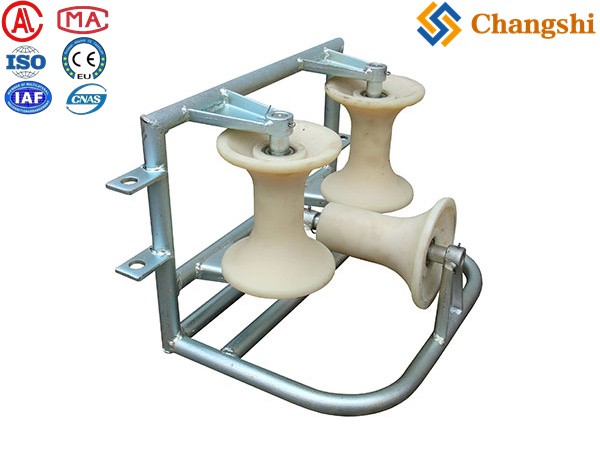

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that a smooth and damage-free cable pull relies on meticulous control at every stage, especially when navigating turns and bends in a trench. Pulling a heavy cable around a corner can cause significant friction, abrasion, and potential damage to the cable jacket. Our Tri-Roller Corner Cable Guide with Nylon Rollers is a specialized tool meticulously engineered to eliminate this risk. The "Corner ground roller assembly" is built around a "tri-roller" configuration, which provides a three-point contact system that guides the cable smoothly and securely around a bend. The use of "nylon roller" material is a crucial feature, as it is non-abrasive and non-conductive, ensuring that your valuable cable sheathing remains protected. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply and services for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this tri-roller corner guide exemplifies our unwavering commitment to providing innovative, durable, and highly efficient solutions that are critical for modern construction and maintenance.

The Tri-Roller Corner Cable Guide is designed to be placed firmly in the corner of a trench or manhole, providing a secure and low-friction path for a cable to follow as it changes direction. Unlike single-roller ground guides, the "tri-roller" assembly consists of three rollers mounted at an angle, which together cradle the cable and guide it through the bend without sharp edges or high-stress points. This design offers several key advantages:

• Smooth, Guided Transition: The three-point roller system ensures the cable is fully supported and guided through the bend, minimizing friction and preventing the cable from jamming or scraping against the trench wall.

• Cable Protection: The "nylon roller" material is specifically chosen for its smooth surface and non-abrasive properties, which will not scratch or damage the sensitive outer jacket of power and communication cables. Nylon is also non-conductive, adding an extra layer of safety.

• Exceptional Stability: The robust frame and heavy-duty construction of the "corner ground roller assembly" prevent it from tipping or moving during a high-tension pull, ensuring consistent and reliable performance.

By deploying Ningbo Changshi's Tri-Roller Corner Cable Guide, you invest in a practical, durable, and essential tool that provides precision control at the most critical points of your cable installation, saving time, reducing costly cable damage, and enhancing the safety and integrity of your projects.

Product Features & Benefits:

• Tri-Roller Configuration: Provides a three-point contact system that securely cradles and guides the cable around corners, ensuring a smooth and controlled pull.

• Nylon Roller Material: Specifically chosen for its non-abrasive, low-friction, and non-conductive properties, ensuring maximum protection for the cable jacket.

• Reduces Friction & Prevents Damage: Eliminates the risk of cable jacket abrasion, scuffing, or kinking that can occur when pulling cables around bends without proper guidance.

• Highly Stable Design: The robust frame and wide base provide exceptional stability, preventing the assembly from shifting or tipping during high-tension pulls.

• Versatile Application: Designed to handle a wide range of cable diameters and is suitable for various types of power, control, and telecommunication cables.

• Durable & Long-Lasting: The frame is typically made from high-strength steel with a protective finish to withstand the rigors of the job site and resist corrosion.

• Essential Safety Tool: The guided pull reduces the risk of dangerous "whipping" or sudden friction that can cause accidents during cable installation.

Product Applications:

Our Tri-Roller Corner Cable Guide with Nylon Rollers is an indispensable tool for a wide range of challenging cable handling and deployment projects:

• underground cable laying: Essential for guiding cables through trenches with 90-degree turns, S-bends, or other sharp corners.

• Manhole and Vault Entry/Exit: Perfect for providing a smooth transition for cables entering or exiting manholes, preventing damage at the edges.

• Telecommunications Network Installation: Ideal for deploying sensitive fiber optic cables in underground ducts and trenches where kinking and abrasion must be avoided at all costs.

• Substation & Industrial Cabling: Useful for guiding cables through tight corners in utility tunnels and industrial environments.

• Any Project with Non-Straight Cable Paths: Applicable wherever cables need to be pulled along a path that is not a straight line.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: The actual specifications, load capacities, and dimensions depend on the specific model. It is crucial to select a roller that meets the weight and size requirements of your cables. Proper placement and secure anchoring are essential for safe and efficient pulling. Please contact us for detailed datasheets for specific models and their exact specifications, compatible cable sizes, and load capacities.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power lines, substations, electrical construction, and maintenance. Here’s why our Tri-Roller Corner Cable Guide is your ideal choice:

1. Specialized Corner Protection: Our "tri-roller" assembly is specifically designed to handle bends, providing a level of cable protection and pull efficiency that single rollers cannot match.

2. Cable-Safe Nylon Rollers: The use of low-friction, non-abrasive nylon rollers ensures that your valuable cable sheathing remains undamaged, preventing costly repairs and ensuring the integrity of the cable.

3. Enhanced Pull Efficiency & Safety: The guided pull reduces friction and prevents jamming, allowing for a smoother, faster, and safer installation, especially during high-tension pulls.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of power and communication infrastructure.

Final Summary:

Our Tri-Roller Corner Cable Guide with Nylon Rollers is an indispensable, intelligently engineered solution designed for the safe, efficient, and damage-free handling of cables at bends and corners. Its specialized tri-roller assembly and protective nylon material are fundamental to simplifying a complex aspect of cable pulling and enhancing overall project efficiency and safety. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge equipment essential for the success and reliability of your next cabling endeavor.

Navigate every bend with confidence! Explore our Tri-Roller Corner Cable Guides. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific installation challenges and request a comprehensive quotation for this essential, high-performance tool!
