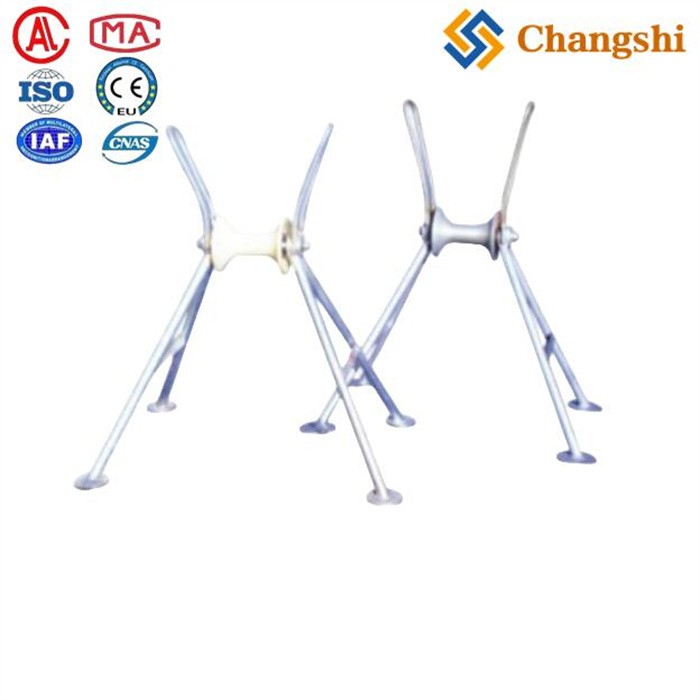

Steel Pipe Support Cable Ground Roller To Protect Underground Installation Cable
A Cable Ground Roller with Steel Pipe High Support is a heavy-duty cable handling device designed to support and protect cables during underground installation, especially in trenches or on rough terrain. It guides cables smoothly, preventing damage from abrasion or sharp bends while allowing easy cable movement.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
A Cable Ground Roller with Steel Pipe High Support is a heavy-duty cable handling device designed to support and protect cables during underground installation, especially in trenches or on rough terrain. It guides cables smoothly, preventing damage from abrasion or sharp bends while allowing easy cable movement.
-
: Made from steel pipe, providing a high, robust frame that offers good ground clearance and durability.
-
: Available with either aluminum or nylon rollers, both mounted on sealed or dustproof ball bearings for smooth, low-friction rotation.
-
: Typically around 5 kN (5000 N), suitable for medium to large cables.
-
: Designed for cables with diameters of approximately 150 mm, 160 mm, and 200 mm.
-
: Varies by model, generally between 7.8 kg to 9.4 kg depending on roller material and design.
-
: Frames are often galvanized or powder-coated for corrosion resistance and long service life in outdoor or underground conditions.
-
: The high steel pipe support elevates the roller assembly, providing better clearance over uneven ground and reducing cable contact with soil or debris.
-
: Used extensively in cable laying projects to support cables in trenches, prevent cable damage during pulling, and facilitate smooth cable feeding.
-
: Steel pipe high support with aluminum rollers, rated load 5 kN, cable diameter ~150 mm, weight ~9.4 kg.
-
: Same as above but with nylon rollers, weight ~7.8 kg.

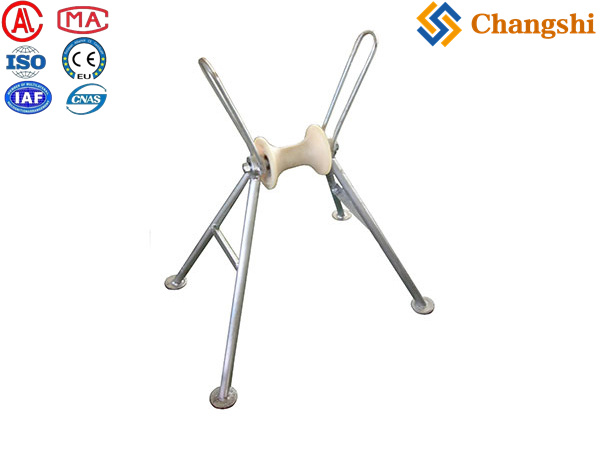

Cable ground roller (steel pipe high support )
|
Order number |
Model |
Rated load (kn) |
Applicable cable diameter (mm) |
Weight (kg) |
|
21201 |
SHLG1 |
5 |
Φ150 |
9.4 |
|
21202 |
SHLG1N |
5 |
7.8 |
﹒Note :the model with “N” is nylon roller ,the other is aluminous roller.
-
Robust and durable steel pipe frame for heavy-duty use.
-
High ground clearance to avoid cable contact with debris.
-
Smooth, low-friction rollers protect cable insulation.
-
Suitable for large cable diameters and high pulling loads.
-
Corrosion-resistant finish for long-term reliability.
The Cable Ground Roller with Steel Pipe High Support is a sturdy, corrosion-resistant cable guide featuring a high steel pipe frame and smooth aluminum or nylon rollers. It supports cables up to 200 mm in diameter with a rated load of 5 kN, providing elevated, low-friction guidance to protect cables and ease installation in underground or trench environments.
