Power Up Your Project: The Robust Wire Cable Reel Stand Model ZJ600 Drum Stand

The Model ZJ600 drum stand is a type of cable drum or reel stand typically used to support, lift, and stabilize cable drums during cable laying and pulling operations.

Key Features and Typical Specifications of the ZJ600 Drum Stand

• Type: Likely a hydraulic cable reel stand or drum jack designed for heavy-duty cable drum support and payout.

• Load Capacity: Comparable hydraulic reel stands support loads ranging from 3,000 kg up to 10,000 kg or more, so the ZJ600 would typically be rated for heavy cable drums within this range.

• Construction: Made from heavy-duty steel with a trapezoidal or tubular frame for stability and durability.

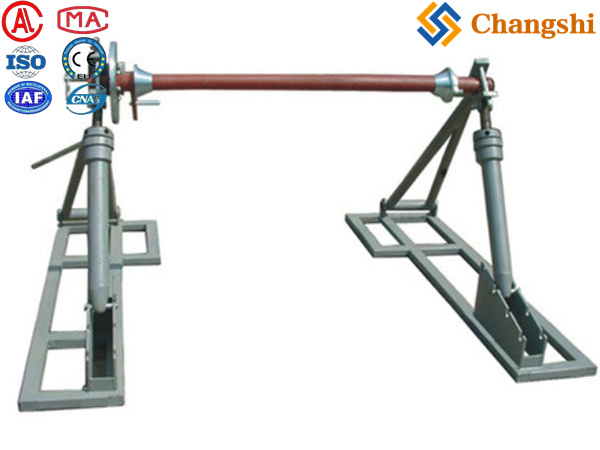

• Hydraulic Lifting: Equipped with a hydraulic jack system allowing easy lifting of heavy cable drums to a height that facilitates smooth and safe cable payout.

• Mobility: Usually fitted with small wheels or casters for easy movement on job sites, often with braking devices for secure positioning during use.

• Compatibility: Adjustable to accommodate a wide range of cable drum diameters and widths, with spindle bars and locking collars to secure the drum centrally.

• Safety and Operation: Designed to lift the drum just clear of the ground to allow free rotation, with retaining pins to hold the drum securely once lifted. The stands are placed with the extended base side towards the cable pull direction for stability.

Comparable Product Examples

• Hydraulic cable reel stands with rated loads of 50-200 kN (approx. 5 to 20 tons) support drum diameters up to 4,000 mm and weights up to 20 tons, weighing around 20-45 kg per stand, featuring steel construction, wheels, and foot brakes.

• Cable drum stands like the 1,000 kg capacity CDST 1000 model support drum widths of 600-900 mm and diameters up to 1,300 mm, weighing about 78 kg.

•

Usage and Application

• The ZJ600 drum stand is used in cable yards and construction sites to hold cable drums securely during payout operations.

• Hydraulic lifting reduces manual effort and improves safety by allowing one person to lift heavy drums easily.

• The stand’s design ensures smooth cable payout by allowing the drum to rotate freely on ball-bearing rollers.

Safety Instructions (Typical for Hydraulic Drum Stands)

• Use stands in pairs with matching serial numbers.

• Position the drum so cable feeds off the bottom.

• Ensure the drum is centered and weight evenly distributed.

• Lift the drum only enough to clear the ground for free rotation.

• Insert retaining pins before pulling cable.

• Place stands on firm, flat surfaces with the extended base towards the pull direction.

In summary, the Model ZJ600 drum stand is a heavy-duty hydraulic cable reel stand designed to lift, support, and stabilize large cable drums for efficient and safe cable laying. It features steel construction, hydraulic lifting, mobility wheels, and safety locking mechanisms, aligning with industry standards for cable drum handling equipment. For precise dimensions and load ratings, consulting the manufacturer or supplier datasheet is recommended.
