Pithead Roller for Wellhead Bus-Bar Cable Protection

Pithead Roller: The Essential Guide for Wellhead Bus-Bar Cable & Rope Protection

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that a successful underground cable installation depends on managing every critical transition with precision and care. One of the most challenging points is the change of direction at the top of a vertical shaft, often referred to as a "wellhead" or "pithead." This is where the cable is pulled from a vertical position into a horizontal one, creating immense stress and a high risk of damage from sharp edges. Our Pithead Roller for Wellhead Bus-Bar Cable Protection is a specialized and indispensable tool meticulously engineered to solve this problem. It is designed to protect both the "Cable (maximum Φ80)" and the "pulling rope" as they navigate this critical transition. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply and services for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this pithead roller exemplifies our unwavering commitment to providing innovative, durable, and highly efficient solutions that are critical for modern construction and maintenance.

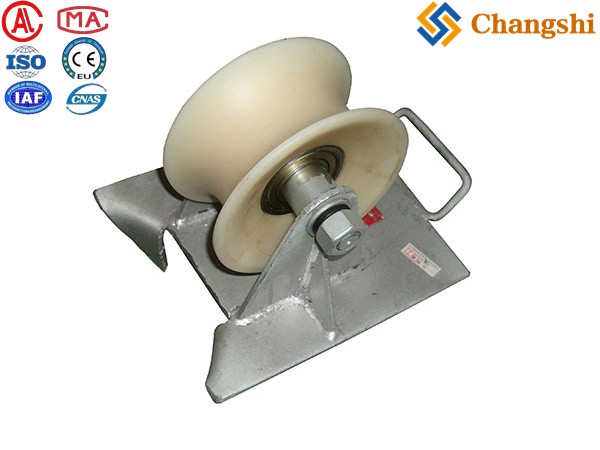

The Pithead Roller is designed for secure placement at the top of a manhole or wellhead. It provides a large-radius, low-friction surface that guides the cable smoothly from the vertical pull to the horizontal bus-bar. This design offers several key advantages:

• Dedicated Wellhead Protection: Specifically engineered to provide a smooth, protected path for cables and pulling ropes at the crucial transition point of a wellhead, preventing contact with sharp, abrasive edges.

• Dual Protection for Cable & Rope: The robust roller is designed to handle both the cable and the pulling rope simultaneously, protecting both valuable assets from wear and tear.

• Low-Friction, High-Efficiency Pulls: The smooth-rolling action of the roller significantly reduces the friction exerted on the cable, which in turn lowers the pulling force required, making the installation faster, safer, and less strenuous on equipment.

• Designed for Specific Cable Sizes: The guide is optimized to handle cables up to a "maximum Φ80mm," providing a perfect fit and ideal protection for a common range of conductors.

• Enhanced Stability: The robust frame is designed for secure placement at the pithead, ensuring the roller remains stable and reliable throughout the entire pull.

By deploying Ningbo Changshi's Pithead Roller, you invest in a practical, durable, and essential tool that provides an elevated level of control and protection at the most critical point of your cable installation, saving time, reducing costly cable damage, and ensuring the safety and integrity of your projects.

Product Features & Benefits:

• Specialized Pithead Design: Meticulously engineered for the specific application of guiding cables and ropes at the vertical-to-horizontal transition of a wellhead or manhole.

• Cable & Rope Protection: The robust roller provides a smooth surface, preventing damage to both the cable jacket and the pulling rope from the sharp edges of the wellhead.

• Accommodates up to Φ80mm: Optimized to provide a perfect fit and ideal protection for cables with a maximum diameter of 80mm.

• Reduces Friction & Pulling Force: The smooth-rolling action of the roller significantly decreases the effort required, making installation easier and more efficient.

• Heavy-Duty Construction: Built with a strong frame and a durable roller to withstand the forces of a high-tension pull and provide a long service life.

• Enhanced Safety: By providing a stable and secure guide, the roller reduces the risk of accidents and equipment strain at a high-stress point of the installation.

Product Applications:

Our Pithead Roller is an indispensable tool for a wide range of specialized cable handling and deployment projects:

• Underground Electrical Network Construction: Essential for pulling cables into and out of manholes and other vertical access points.

• Substation & Industrial Installations: Ideal for deploying cables into vertical utility shafts within complex industrial facilities.

• Telecommunications Network Installation: Facilitates the installation of large-diameter telecommunications cables into underground vaults.

• Any Project with Vertical Cable Transitions: Applicable wherever a smooth, low-friction, and damage-free path is needed for a cable moving from a vertical to a horizontal direction.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: The actual specifications, load capacities, and dimensions depend on the specific model. It is crucial to select a roller that meets the weight and size requirements of your cables. Proper placement and secure anchoring are essential for safe and efficient pulling. Please contact us for detailed datasheets for specific models and their exact specifications, compatible cable sizes, and load capacities.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power lines, substations, electrical construction, and maintenance. Here’s why our Pithead Roller is your ideal choice:

1. Specialized, Purpose-Built Design: This roller is engineered specifically for the challenging vertical-to-horizontal transition at a wellhead, providing a level of protection and control that a general-purpose roller cannot.

2. Dual Protection for Cable & Rope: It protects both your valuable cable and your pulling rope, extending the life of your equipment and ensuring a safe pull.

3. Enhanced Safety & Efficiency: The low-friction, stable design makes installation easier, faster, and more controlled, reducing the risk of accidents and equipment strain.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of power and communication infrastructure.

Final Summary:

Our Pithead Roller for Wellhead Bus-Bar Cable Protection is an indispensable, intelligently engineered solution designed for the safe, efficient, and damage-free handling of cables and ropes at critical vertical transitions. Its specialized design is fundamental to simplifying a complex aspect of cable pulling and enhancing overall project efficiency and safety. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge equipment essential for the success and reliability of your next underground cabling endeavor.

Safeguard your cables and ropes at every wellhead! Explore our Pithead Rollers. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific installation challenges and request a comprehensive quotation for this essential, high-performance tool!
