The Model CLJ 60 Cable Blower Set is a hydraulic-driven machine designed for the long-distance installation of communication cables, particularly optical fiber cables such as OPGW (Optical Ground Wire). It uses compressed air to blow the cable through ducts or silicon core pipes, enabling efficient cable laying over distances typically between 1000 to 2000 meters per blow.
| Parameter | Specification |
|---|---|
| 700 N (adjustable continuously) | |
| 8 to 80 m/min (adjustable continuously) | |
| 10 to 24.3 mm | |
| Applicable silicon core pipe diameters (outer/inner) | 26/32 mm, 28/34 mm, 33/40 mm, 38/46 mm, 42/50 mm |

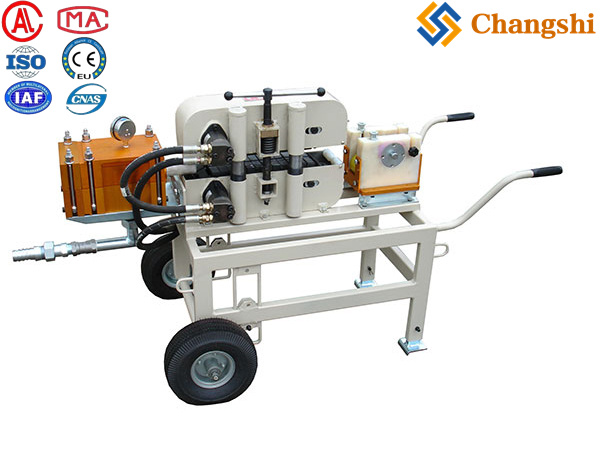

| Dimensions (Cable Blower Machine) | 1390 x 700 x 850 mm |
| 125 kg | |

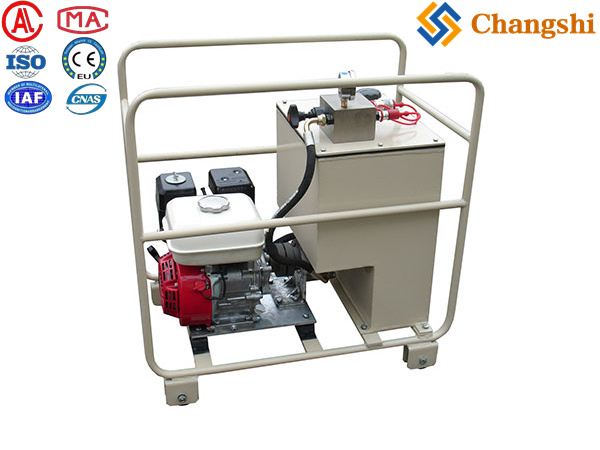

| Hydraulic pump station max pressure | 15 MPa |
| 10 L/min | |
| Hydraulic pump station dimensions | 780 x 470 x 780 mm |
| 87.5 kg | |
| Air displacement > 10 m³/min, Air pressure > 1 MPa | |

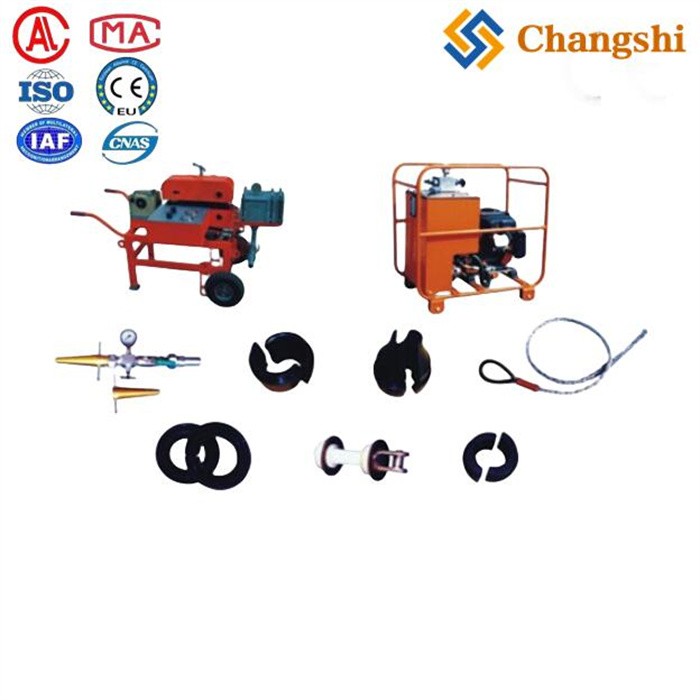

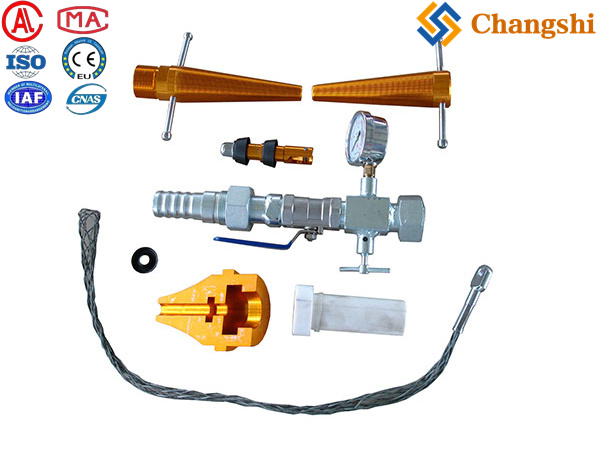

| Cable blower, motorized hydraulic pump, sealing pieces (for cable and pipe), pipe sealing inspection equipment, cable pulling grips | |
| Air compressor (must be purchased separately) |
-
The CLJ 60 set is designed for long-distance blowing of optical fiber cables inside ducts or silicon core pipes, reducing mechanical stress compared to traditional pulling methods.
-
The hydraulic drive provides smooth, controllable cable feed with adjustable speed and force to protect cable integrity.
-
Suitable for cables with diameters from 10 mm up to 24.3 mm, and compatible with a variety of duct sizes.
-
The set includes necessary sealing and inspection components to ensure airtight operation during blowing.
-
Ideal for OPGW installation in overhead power line projects or underground communication cable deployment.
-
-
The cable blower set works by feeding the cable into the duct while compressed air propels it forward, allowing installation over long distances without excessive tension.
-
Proper tension control and sealing are critical to avoid damage to the fibers inside the cable.
-
The equipment is widely used in utility and telecom industries for efficient fiber optic cable installation.
-
The Model CLJ 60 Cable Blower Set is a robust, hydraulic-powered cable blowing machine tailored for long-distance installation of optical fiber cables like OPGW. It offers adjustable force and speed, supports a range of cable and duct sizes, and requires an external air compressor for operation. This set is essential for modern fiber optic cable deployment in overhead and underground applications, ensuring safe, efficient, and damage-free cable installation
