Modular Tri-Roller Corner Guide for Adjustable Angles

Modular Tri-Roller Corner Guide: The Customizable Solution for Arbitrary Trench Angles

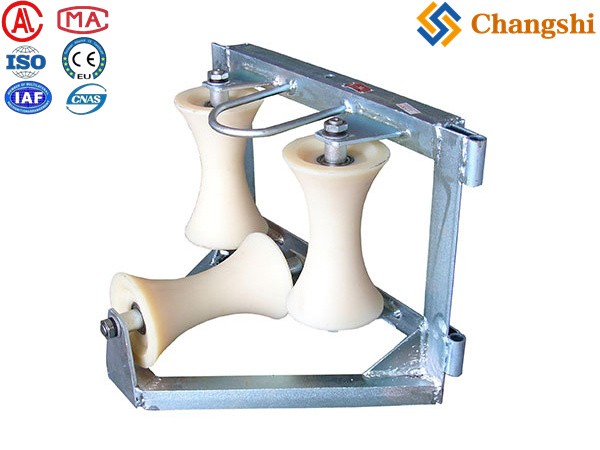

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that not all cable installation paths are perfectly straight or marked by standard 90-degree turns. For complex urban environments, winding trench paths, or projects with non-standard bends, a fixed-angle corner roller is simply inadequate. Our Modular Tri-Roller Corner Guide for Adjustable Angles is an innovative and highly flexible tool meticulously engineered to solve this problem. The "Corner ground roller assembly" is not a single, fixed unit but a modular "tri-roller" system that can be precisely arranged to accommodate an "arbitrary turning angle on requirements." This groundbreaking feature provides unparalleled adaptability, allowing you to create a perfect, low-friction path for your cable, no matter how complex the bend. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply and services for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this modular corner guide exemplifies our unwavering commitment to providing innovative, durable, and highly efficient solutions that are critical for modern construction and maintenance.

The Modular Tri-Roller Corner Guide is designed to be assembled and configured on-site to match the exact turning angle of the trench. The assembly is typically composed of individual roller units that can be connected or positioned to create a smooth, continuous curve. This design offers several key advantages:

• Arbitrary Angle Configuration: The system can be built up to accommodate any turning angle, from shallow curves to sharp bends, providing a custom-fit solution for every unique trench path.

• Reduces Site Preparation Time: Instead of modifying the trench or forcing the cable into a non-ideal path, this modular system adapts to the environment, saving time and labor.

• Superior Cable Protection: The multiple-roller system ensures the cable is fully supported through the entire bend, minimizing friction and preventing costly damage to the cable jacket.

• Enhanced Pull Efficiency: The low-friction rollers and precise guidance reduce the pulling force required, which extends the life of your equipment and speeds up the installation process.

By deploying Ningbo Changshi's Modular Tri-Roller Corner Guide, you invest in a practical, durable, and essential tool that provides a level of flexibility and precision control unmatched by standard equipment, saving time, reducing costly cable damage, and ensuring project success in the most challenging of circumstances.

Product Features & Benefits:

• Modular Design for Adjustable Angles: The most unique feature, allowing the assembly to be configured for an "arbitrary turning angle," providing a custom solution for any bend.

• Tri-Roller Configuration: Provides a three-point contact system that securely cradles and guides the cable around bends, ensuring a smooth and controlled pull.

• Low-Friction Rollers: Minimizes the risk of cable jacket abrasion and kinking by providing a smooth, supported path for the cable as it changes direction.

• Exceptional Stability & Anti-Tip Design: The robust frame and heavy-duty construction prevent the assembly from shifting or tipping, ensuring reliable performance even with high-tension pulls.

• Versatile Application: Designed to handle a wide range of cable diameters and is suitable for various types of power, control, and telecommunication cables.

• Durable & Long-Lasting: The frame and roller units are built with high-strength materials and protective finishes to withstand the rigors of the job site and resist corrosion.

• Reduces Installation Costs: A single, modular system can replace the need for multiple fixed-angle rollers, reducing inventory and ensuring you have the right tool for every job.

Product Applications:

Our Modular Tri-Roller Corner Guide is an indispensable tool for a wide range of challenging cable handling and deployment projects:

• underground cable laying in Urban Environments: Ideal for navigating complex, winding trench paths with non-standard angles and existing utilities.

• Substation & Industrial Installations: Perfect for guiding cables through tight, non-linear spaces within utility tunnels and industrial facilities.

• Telecommunications Network Installation: Essential for deploying sensitive fiber optic cables in unpredictable underground routes where a precise, smooth pull is critical.

• Any Project with Non-Standard Bends: Applicable wherever a fixed-angle roller is impractical and a customizable solution is needed to guide cables safely and efficiently around curves.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: The actual specifications, load capacities, and dimensions depend on the specific modular configuration. It is crucial to select a system that meets the weight and size requirements of your cables and project specifications. Proper placement and secure anchoring are essential for safe and efficient pulling. Please contact us for detailed datasheets for specific models and their exact specifications, compatible cable sizes, and load capacities.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power lines, substations, electrical construction, and maintenance. Here’s why our Modular Tri-Roller Corner Guide is your ideal choice:

1. Unmatched Versatility & Adaptability: Our innovative modular design allows for the creation of an "arbitrary turning angle," providing a single solution for a wide range of complex cable paths where standard rollers would fail.

2. Superior Cable Protection: The precision-engineered tri-roller assembly ensures a smooth, guided transition, protecting your valuable cables from friction and damage at the most critical points of the installation.

3. Enhanced Pull Efficiency & Safety: The low-friction rollers and customizable guidance system allow for a smoother, faster, and safer installation, especially around complex bends.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of power and communication infrastructure.

Final Summary:

Our Modular Tri-Roller Corner Guide is an indispensable, intelligently engineered solution designed for the safe, efficient, and damage-free handling of cables along non-standard paths and bends. Its ability to be configured for an "arbitrary turning angle" is fundamental to simplifying a complex aspect of cable pulling and enhancing overall project efficiency and safety. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge equipment essential for the success and reliability of your next complex cabling endeavor.

Conquer every complex bend with a custom solution! Explore our Modular Tri-Roller Corner Guides. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific installation challenges and request a comprehensive quotation for this essential, high-performance tool!
