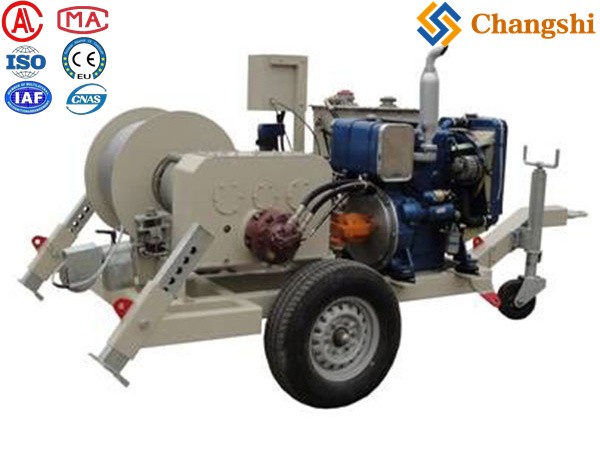

Hydraulic Earthwire Puller for Overhead Transmission Lines

Hydraulic Earthwire Puller: Precision & Power for Overhead Ground cable stringing

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that the installation of "earthground cable" (also known as earthwire or grounding cable) is a critical phase in the construction of any overhead transmission line. The safety and integrity of the entire power system depend on its flawless and secure installation. Our Hydraulic Earthwire Puller for Overhead transmission lines is a high-performance "hydraulic transmission cable puller" meticulously engineered "to string earthground cable" with unparalleled control, power, and safety. The use of an advanced hydraulic transmission system ensures a smooth and consistent pulling force, which is essential for protecting the integrity of the earthwire and associated components over long distances. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply and services for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this hydraulic earthwire puller exemplifies our unwavering commitment to providing innovative, durable, and highly efficient solutions that are critical for building safe and reliable power infrastructure.

The Hydraulic Earthwire Puller is a specialized piece of machinery designed for the stringing of earthwire, or in many modern cases, Optical Ground Wire (OPGW), which combines the function of a ground wire with a fiber optic communication link. The "hydraulic transmission" is the key to its superior performance. A diesel engine powers a hydraulic pump, which in turn drives the capstan or bull wheels. This closed hydraulic circuit provides several critical advantages:

• Infinitely Variable Speed Control: Operators can precisely adjust the pulling speed in both directions, which is crucial for managing tension and navigating complex terrain.

• Tension Control: The hydraulic system allows for the maximum pulling tension to be preset, with a line pull gauge providing real-time feedback. This prevents over-tensioning, which could damage the earthwire, poles, or towers.

• Automatic Overload Protection: In the event that the pulling force exceeds the preset limit, the system automatically disengages or stops, providing a vital safety feature.

• Smooth Operation: The hydraulic system ensures a jerk-free, continuous pull, which is essential for the smooth handling of sensitive OPGW cables.

This "hydraulic transmission cable puller" is typically a standalone, towable unit with a rigid axle and a self-loading reel winder, making it highly mobile and efficient for deployment along the transmission line route. By deploying Ningbo Changshi's Hydraulic Earthwire Puller, you equip your team with a specialized, high-performance tool that guarantees the safe, efficient, and damage-free installation of this critical component of your power infrastructure.

Product Features & Benefits:

• Hydraulic Transmission System: Provides superior power, precise speed control, and automatic overload protection, ensuring a smooth and safe "stringing earthground cable" operation.

• Dedicated for Earthwire/OPGW: Specifically engineered for the unique requirements of pulling ground cables and sensitive OPGW, protecting them from damage during installation.

• Variable Pulling Speed: Offers infinitely variable speed control in both forward and reverse directions, allowing operators to adapt to different terrain and installation requirements.

• Real-Time Tension Monitoring: Equipped with a line pull gauge to provide continuous, accurate tension readings, and an automatic over-pulling protection system for maximum safety.

• High-Capacity & Robust Construction: Built with heavy-duty steel and durable components to handle long-distance stringing and withstand the rigors of field work.

• Integrated Reel Winder: Includes a self-loading reel winder with an automatic level wind mechanism, simplifying the handling of the earthwire drum.

• Enhanced Safety: The hydraulic brake system automatically activates in case of hydraulic failure, ensuring the cable remains secure.

• Efficient & Mobile: Designed as a towable unit with a rigid axle, making it easy to transport and deploy along the transmission line route.

• Versatile Application: While primarily for earthwire, its precise control makes it suitable for other pilot wire or single OHTLstringingequipment.com/Conductor-Stringing-Equipment.html target='_blank'>conductor stringing applications.

• High-Quality Components: Features internationally recognized hydraulic pumps, motors, and diesel engines for maximum reliability and performance.

Product Applications:

Our Hydraulic Earthwire Puller is an indispensable tool for the safe and efficient stringing of overhead transmission lines:

• Earthwire/Ground cable installation: The primary application for pulling conventional steel earthwire or ground cables along overhead power line towers.

• OPGW (Optical Ground Wire) Stringing: Ideal for the highly sensitive installation of OPGW, where precise tension control is critical to protect the fiber optic core.

• Overhead Transmission Line Pilot Rope Pulling: Can be used to pull a pilot rope, which is then used to pull the main conductors.

• Conductor Re-stringing: Assists in the replacement of old conductors or earthwires with new ones.

• Any Project Requiring Controlled Overhead Pulling: Applicable wherever a powerful yet precise pulling force is needed for overhead conductor or cable stringing.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: The actual pulling force, speed, and compatible rope types depend heavily on the specific model and engine power. It is crucial to select a puller with sufficient capacity for your project's maximum expected pulling tension and wire rope type. Proper training for operators and strict adherence to all safety guidelines for overhead stringing operations are paramount. Please contact us for detailed datasheets for specific models and their exact specifications, compatible wire rope sizes, and load capacities.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power lines, substations, electrical construction, and maintenance. Here’s why our Hydraulic Earthwire Puller is your ideal choice:

1. Unrivaled Hydraulic Control: Our puller's "hydraulic transmission" system offers unmatched precision in managing pulling speed and tension, which is essential for the safe and damage-free "stringing earthground cable" and OPGW.

2. Dedicated for Overhead Grounding: Specifically engineered for the unique challenges of earthwire and OPGW installation, ensuring a perfect fit and optimal performance for this critical component of your power line.

3. Enhanced Safety & Reliability: With features like automatic overload protection and hydraulic failure brakes, our puller provides a superior level of safety, protecting both your crew and valuable equipment.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of power and communication infrastructure.

Final Summary:

Our Hydraulic Earthwire Puller is an indispensable, powerful, and intelligently engineered solution designed for the safe, efficient, and damage-free stringing of earthground cables and OPGW on overhead transmission lines. Its advanced hydraulic transmission and dedicated design are fundamental to ensuring the integrity of this critical component, reducing installation time, and enhancing overall project safety and efficiency. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge equipment essential for the success and reliability of your next overhead line project.

Achieve flawless earthwire and OPGW stringing with superior hydraulic control! Explore our Hydraulic Earthwire Pullers. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific earthground cable stringing requirements and request a comprehensive quotation for this essential, high-performance tool!
