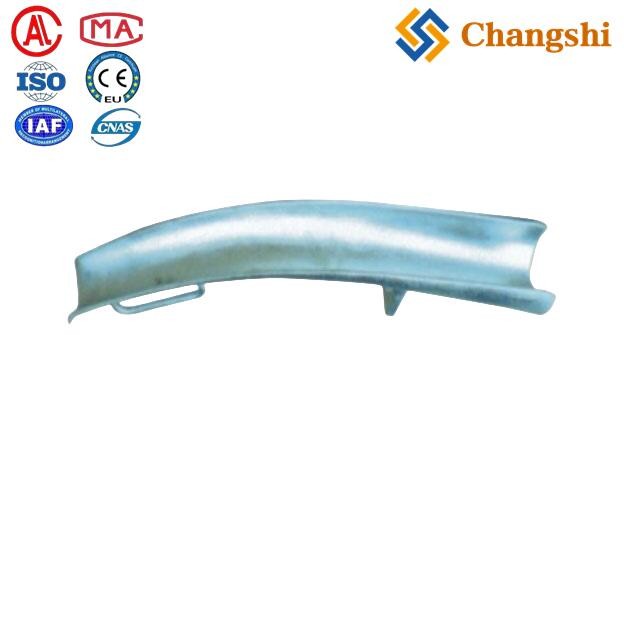

Heavy-Duty Pithead Cable Protective Bend

Heavy-Duty Pithead Cable Protective Bend: The Robust Guide for Critical Transitions

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that for heavy-duty conductor and rope pulls, a robust and reliable guide is essential for managing the critical vertical-to-horizontal transition at a "pithead" or manhole. The high tension and weight of these pulls can create immense stress on the conductor, leading to kinking, abrasion, and jacket damage. Our Heavy-Duty Pithead Cable Protective Bend is a simple yet powerful tool meticulously engineered to solve this problem. It provides a large, smooth, and consistent "protective bend" radius that ensures the "conductor and pulling rope" are guided gently and safely, preventing damage and distributing the load evenly. This non-rolling guide is ideal for demanding applications where durability and unwavering performance are non-negotiable. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply and services for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this protective bend guide exemplifies our unwavering commitment to providing innovative, durable, and highly efficient solutions that are critical for modern construction and maintenance.

The Heavy-Duty Pithead Cable Protective Bend is designed for secure placement at the top of a manhole or wellhead. This specialized tool offers several key advantages:

• Purpose-Built for Pithead Applications: Engineered specifically to manage the critical transition from a vertical pull to a horizontal run, a common and high-stress point in underground installations.

• Superior Conductor & Rope Protection: The robust, large-radius surface provides a stable guide for both the conductor and the pulling rope, preventing them from coming into contact with sharp or rough edges.

• Low-Friction Surface: The smooth, durable material of the bend guide reduces friction and abrasion, protecting the conductor's outer jacket from damage during a pull.

• Heavy-Duty & Robust Construction: Built with a strong, industrial-grade frame and durable protective material, this guide is designed to withstand the forces of a high-tension pull and provide a long service life in challenging environments.

• Enhanced Safety: By providing a stable and secure guide, the tool reduces the risk of the cable "jumping" or becoming snagged, improving overall safety on the job site.

By deploying Ningbo Changshi's Heavy-Duty Pithead Cable Protective Bend, you invest in a practical, durable, and essential tool that provides an elevated level of control and protection at the most critical point of your conductor installation, saving time, reducing costly damage, and ensuring the safety and integrity of your projects.

Product Features & Benefits:

• Specialized Non-Rolling Design: Offers a stable, low-friction surface to guide conductors and ropes smoothly around the vertical-to-horizontal bend.

• Large Bend Radius: Protects the conductor from kinking and abrasion by providing a gentle, consistent curve.

• Heavy-Duty & Robust Construction: Built to handle high-tension pulls and demanding job site conditions.

• Dual Protection: Guards both the conductor and the pulling rope from damage.

• Enhanced Safety & Efficiency: The stable design and low friction make the pull safer, easier, and more controlled.

Product Applications:

Our Heavy-Duty Pithead Cable Protective Bend is an indispensable tool for a wide range of specialized cable handling and deployment projects:

• High-Voltage Conductor Installation: Essential for pulling heavy, large-diameter conductors into and out of manholes and other vertical access points.

• Underground Electrical Network Construction: Ideal for managing cables at the entrance/exit of manholes and vaults where a gentle transition is required.

• Substation & Industrial Installations: Facilitates the safe deployment of cables into vertical shafts where space is limited and an even pull is critical.

• Any Project with Vertical Cable Transitions: Applicable wherever a smooth, low-friction, and damage-free path is needed for a conductor moving from a vertical to a horizontal direction.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: The actual specifications, load capacities, and dimensions depend on the specific model. It is crucial to select a guide that meets the weight and size requirements of your conductors. Proper placement and secure anchoring are essential for safe and efficient pulling. Please contact us for detailed datasheets for specific models and their exact specifications, compatible conductor sizes, and load capacities.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power lines, substations, electrical construction, and maintenance. Here’s why our Heavy-Duty Pithead Cable Protective Bend is your ideal choice:

1. Robust, Purpose-Built Design: This non-rolling guide is engineered specifically for the demanding application of pithead transitions, providing a level of protection that a general-purpose roller cannot.

2. Superior Protection for High-Value Assets: The large bend radius prevents costly damage to your conductors and pulling ropes, offering a high return on your investment.

3. Enhanced Safety & Control: The low-friction, stable design makes installation easier, faster, and more controlled, reducing the risk of accidents and equipment strain.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of power and communication infrastructure.

Final Summary:

Our Heavy-Duty Pithead Cable Protective Bend is an indispensable, intelligently engineered solution designed for the safe, efficient, and damage-free handling of conductors and ropes at critical vertical transitions. Its specialized design is fundamental to simplifying a complex aspect of cable pulling and enhancing overall project efficiency and safety. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge equipment essential for the success and reliability of your next heavy-duty cabling endeavor.

Ensure a gentle, damage-free transition at every pithead! Explore our Heavy-Duty Pithead Cable Protective Bends. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific installation challenges and request a comprehensive quotation for this essential, high-performance tool!
