Electric Power Communication Model Hzt Reel Rotator Platform For Cable Laying Construction

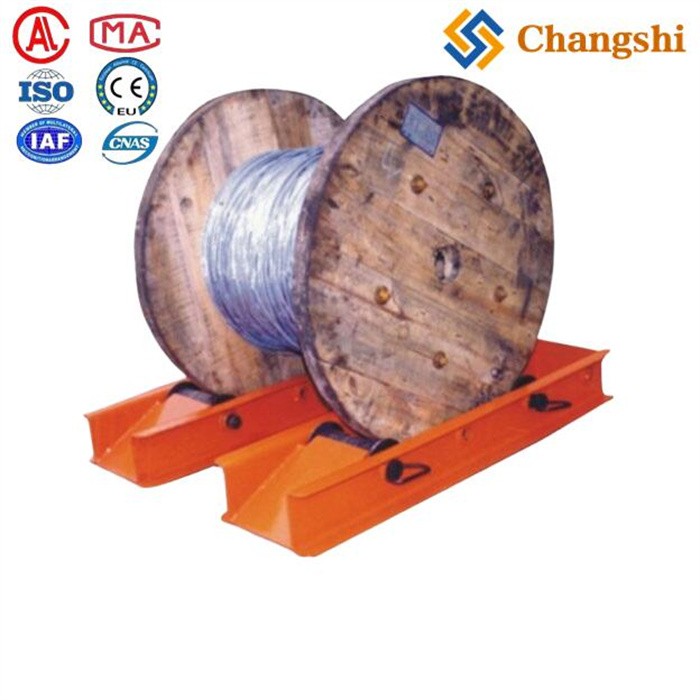

The Model HZT reel rotator platform is a cable reel spreading and rotating device widely used in cable laying construction for electric power, communication, and related industries. It facilitates smooth rotation and payout of cable reels during installation.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video

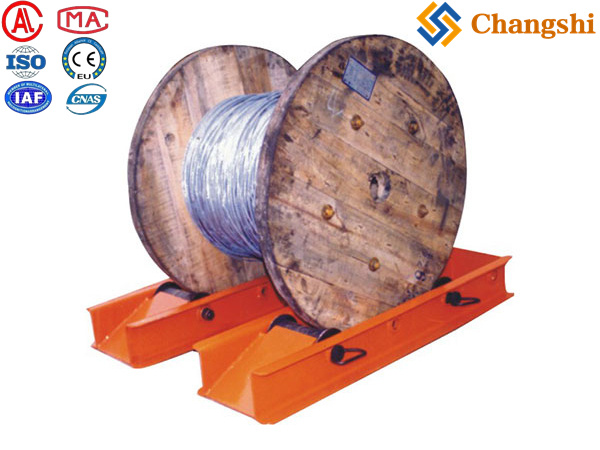

The Model HZT reel rotator platform is a cable reel spreading and rotating device widely used in cable laying construction for electric power, communication, and related industries. It facilitates smooth rotation and payout of cable reels during installation.
-
: Acts as a cable reel spreading device, allowing cable reels to rotate flexibly and smoothly on the platform.
-

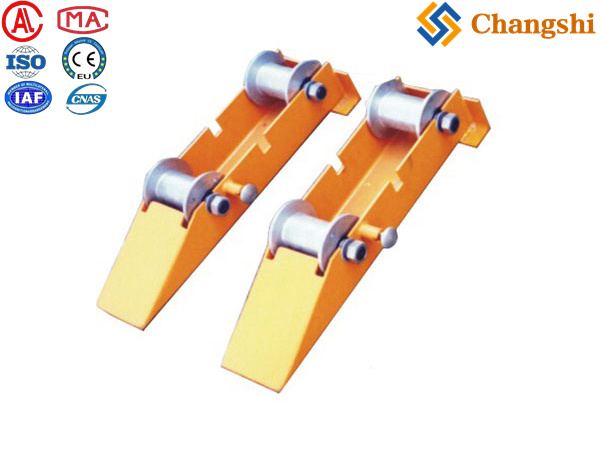

: Composed mainly of a turntable, rollers equipped with rolling bearings, roller axes, and locking fixtures. The rollers support the reel and enable easy rotation.
-
: Rollers can be adjusted to fit various reel diameters, and locking mechanisms secure the reel during setup.
-
: Two platforms are placed according to the reel width, the roller near the slope is locked, the reel is pushed onto the platform, then the lock is released to allow rotation.
-
: Used in cable laying for power transmission, communication lines, and other cable installation projects.
-
| Model | Applicable Reel Diameter (mm) | Max Reel Weight (kg) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| HZT1250 | 500 – 1250 | 500 | 470×172×105 | 17 |
| HZT1800 | 500 – 1800 | 1500 | 650×150×145 | 40 |
| HZT2500 | 500 – 2500 | 1500 | 900×230×130 | 73.5 |
-
Certified by ISO9001 and CE standards.
-
Suitable for reels with diameters from 500 mm up to 2500 mm and weights up to 1500 kg.
-
Compact and robust design for ease of use and durability.
-
Place two platforms spaced according to the reel width.
-
Lock the roller closest to the slope.
-
Adjust roller positions to match the reel diameter.
-
Push the reel onto the platform along the slope.
-
Release the locked roller to allow the reel to rotate freely.
-
The Model HZT reel rotator platform is a reliable, adjustable, and easy-to-use device that supports cable reels during installation by enabling smooth rotation and controlled payout. Its sturdy construction and adjustable rollers accommodate a wide range of reel sizes and weights, making it an essential tool for cable laying in power and communication industries.
