Cables Pulling Duct Guide Roller Tools For Underground Cable Laying Installation
The D Series Cable Entrance Protection Roller is a cable guiding device designed to protect cables and pulling ropes at duct or pit entrances during cable installation.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video

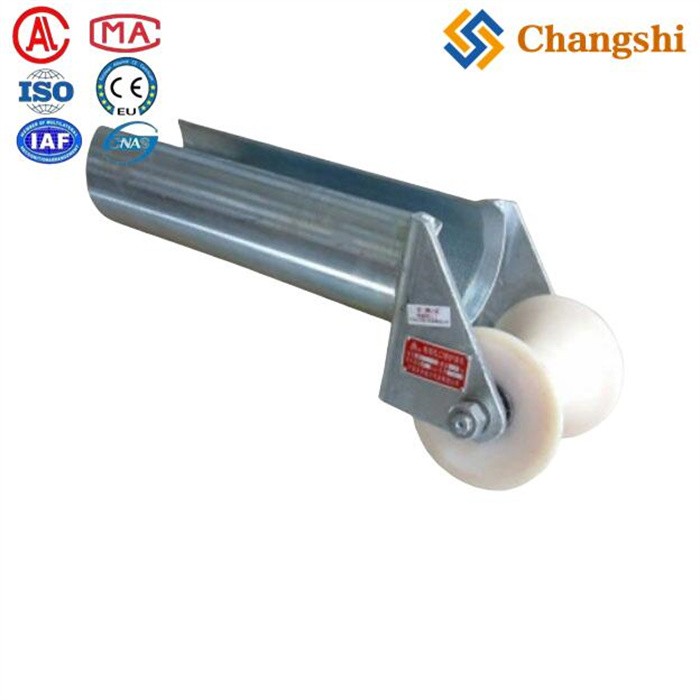

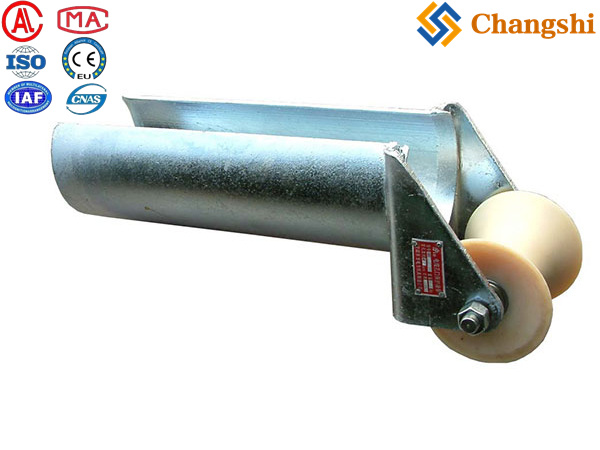

The D Series Cable Entrance Protection Roller is a cable guiding device designed to protect cables and pulling ropes at duct or pit entrances during cable installation.
-
: The roller features a fixed location mechanism with a length of 300 mm, ensuring stable placement during cable pulling.
-
: Equipped with nylon rollers, which provide smooth, low-friction guidance to protect cables from abrasion and damage.
-
: Designed for robust use in cable stringing and pulling operations, suitable for underground or overhead cable installations.
-
: Commonly used at cable duct entrances, manholes, or pitheads to ease cable entry and reduce mechanical stress on cables and ropes.
-
: While specific load ratings vary by model, D Series rollers are generally designed to handle medium to heavy cables efficiently.
D series cable entrance protection roller
|
Order number |
Model |
Tube diameter (mm) |
Weight (kg) |
|
21271 |
SH80DA |
80 |
4.3 |
|
21272 |
SH90DA |
90 |
4.6 |
|
21273 |
SH100DA |
100 |
5.0 |
|
21274 |
SH130DA |
130 |
6.9 |
|
21275 |
SH150DA |
150 |
9.0 |
·features :single roller .fixed location mechanism .nylon roller .
-
The D Series roller is often zinc-plated or powder-coated for corrosion resistance.
-
It is widely used in power cable, telecom cable, and fiber optic cable installations.
-
Some models are designed for stringing entrance protection, featuring wire pulley blocks integrated with the roller for easier cable extension and pulling.
The D Series Cable Entrance Protection Roller features a fixed 300 mm location mechanism and nylon rollers to provide smooth, secure cable guidance at duct or pit entrances. Its robust design protects cables and pulling ropes from abrasion and mechanical damage during installation, making it a reliable choice for underground and overhead cable projects.
