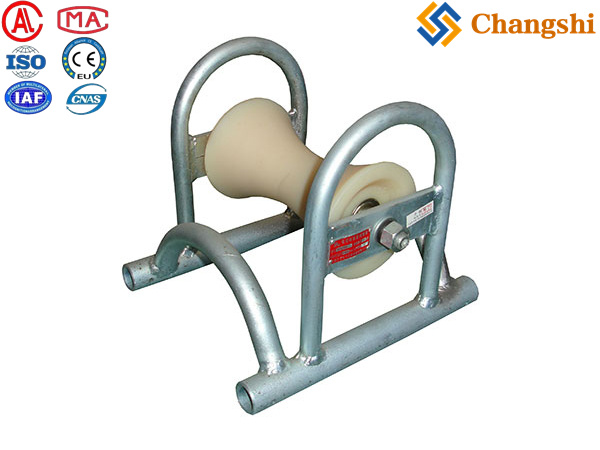

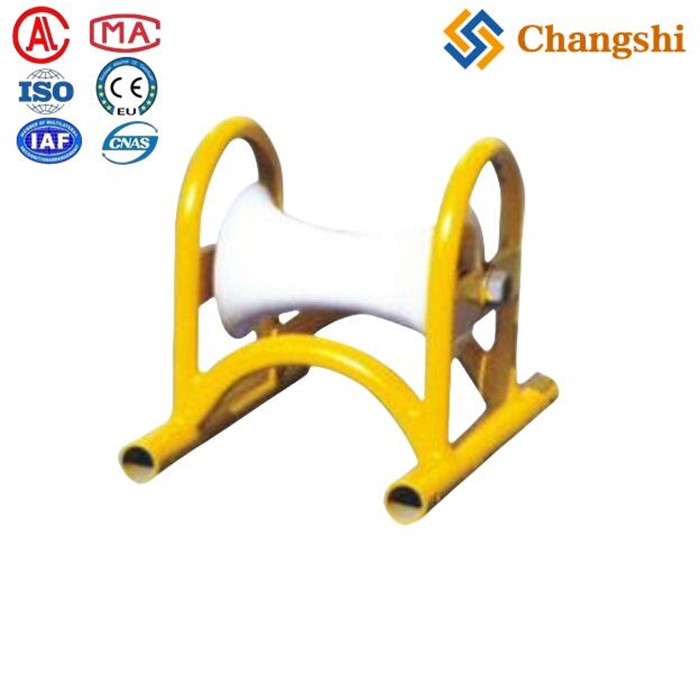

Cable Laying Steel Pipe Support Ground Roller For Underground Cable Installation
The Cable Ground Roller with Steel Pipe Support is a durable cable handling tool designed to protect cables during installation by providing smooth guidance and reducing friction and mechanical damage, especially in trenches or on uneven ground.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The Cable Ground Roller with Steel Pipe Support is a durable cable handling tool designed to protect cables during installation by providing smooth guidance and reducing friction and mechanical damage, especially in trenches or on uneven ground.
-
: Made of steel pipe, offering strong, robust support for cable rollers.
-
: Available with aluminum rollers or nylon rollers mounted on ball bearings for smooth rotation.
-
: Typically 5 kN (kilonewtons), suitable for medium to large cables.
-
: Designed for cables with diameters of approximately 150 mm, 160 mm, and 200 mm.
-
: Varies by model and roller type, generally ranging from 5.1 kg to 8.0 kg.
-
: Frames are often galvanized or painted to resist rust and environmental wear.
-
: Used in underground cable laying projects to support cables, prevent damage from abrasion or sharp bends, and facilitate easier cable pulling.
| Model | Roller Type | Rated Load (kN) | Cable Diameter (mm) | Weight (kg) |
|---|---|---|---|---|
| SHL1G | Aluminum Roller | 5 | 150 | 5.1 |
| SHL1GN | Nylon Roller | 5 | 150 | 3.3 |
| SHL2GN | Nylon Roller | 5 | 160 | 5.7 |
| SHL3GN | Nylon Roller | 5 | 200 | 8.0 |
-
Provides stable, smooth cable support to reduce pulling tension.
-
Protects cable insulation from abrasion and mechanical damage.
-
Suitable for use in narrow trenches and confined spaces.
-
Lightweight and portable for easy handling on site.
-
Corrosion-resistant steel pipe frame ensures durability.
The Cable Ground Roller with Steel Pipe Support is a reliable and sturdy cable guide designed to support cables up to 200 mm in diameter with a 5 kN load rating. It features either aluminum or nylon rollers on a steel pipe frame, providing smooth, low-friction cable guidance during underground installation, protecting cables from damage and easing installation efforts.
