Cable Laying Installation Protective Bend For Overhead Underground Cable Pulling

A Cable Protective Bend with Handle is a cable protection device designed to safeguard cables and pulling ropes from damage when routed around bends, especially at duct entries, pitheads, or manholes during cable installation.

Key Features:

• Carrying Handle: Equipped with a sturdy handle for easy transport, positioning, and handling on site, improving safety and convenience.

• Material: Typically made from galvanized steel or zinc-plated steel, providing corrosion resistance and mechanical durability.

• Buffer/Stop: Often includes a buffer or integrated stop to prevent cables from moving beyond safe limits, enhancing protection during pulling.

• Sizes: Available for various cable duct diameters, such as 42 mm, 56 mm, 76 mm, 96 mm, and 100 mm inner diameters.

• Function: Provides a smooth, curved surface to guide cables and pulling ropes around corners or duct entries, preventing abrasion, crushing, or sharp kinks.

• Applications: Used primarily in underground cable installations at duct entries, manholes, and pitheads to facilitate safe cable pulling and protect cable integrity.

Examples:

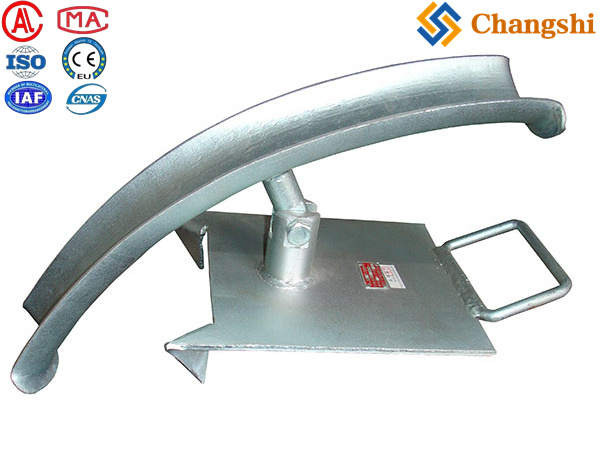

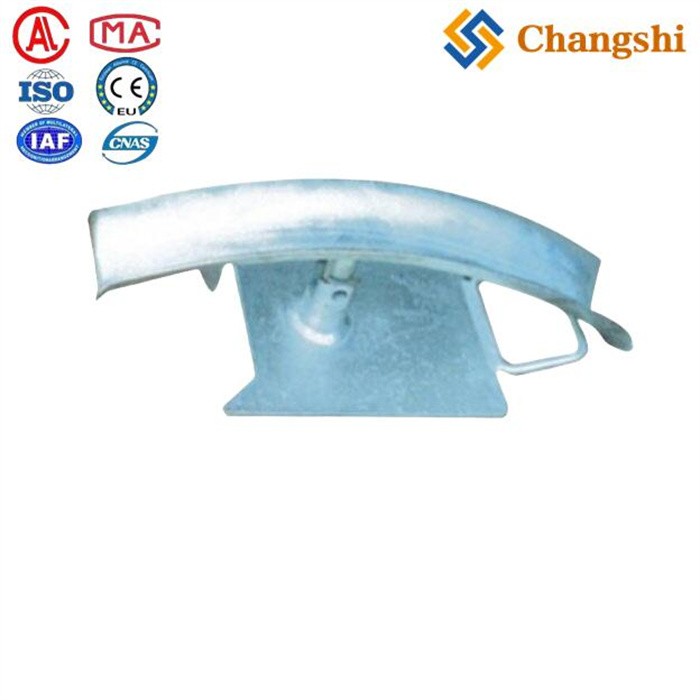

Protective bend with handle

Order number	21305	21307	21306	21308
Model	JKD80	JKD100	JKD130	JKD150
Bend radius (mm)	R400	R400	R500	R500
Maximum via diameter (mm)	Φ80	Φ100	Φ130	Φ150
Weight (kg)	5	5.2	6.0	6.5

·Notes:

1. protect the conductor and pulling rope at pithead .

2. galvanized steel .

Summary:

The Cable Protective Bend with Handle is a galvanized steel cable guide featuring a carrying handle and often a buffer or stop. It protects cables and pulling ropes from mechanical damage at bends or duct entries during installation, while the handle allows for easy transport and positioning. This device is essential for maintaining cable integrity and simplifying cable pulling operations in underground environments.
