A V Type Hold–On Cable Roller is a cable guiding and support device designed primarily for feeding cables smoothly into trenches or ducts during installation, protecting the cable from damage and ensuring efficient handling.
Hold –on roller
|
Order number |
21291 |
21292 |
21293 |
21294 |
|
Model |
SHC1000 |
SHC1500 |
SHC2000 |
DR1 |
|
Feature |
V type ,folded |
V type ,folded |
V type ,folded |

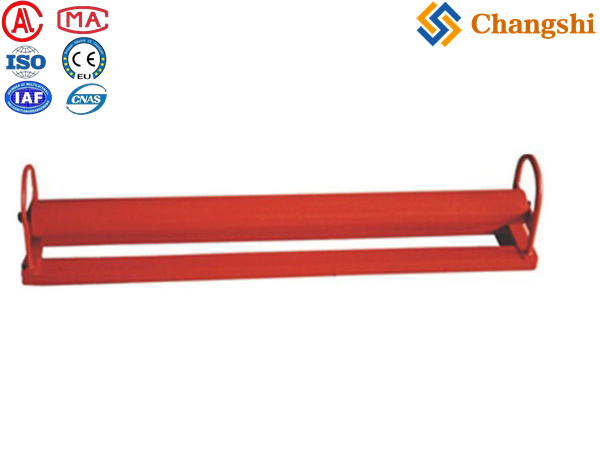

Line type |
|
Length (m) |
1 |
1.5 |
2 |
1 |
|
Weight (kg) |
27.3 |
30.5 |
35.5 |
14 |
-

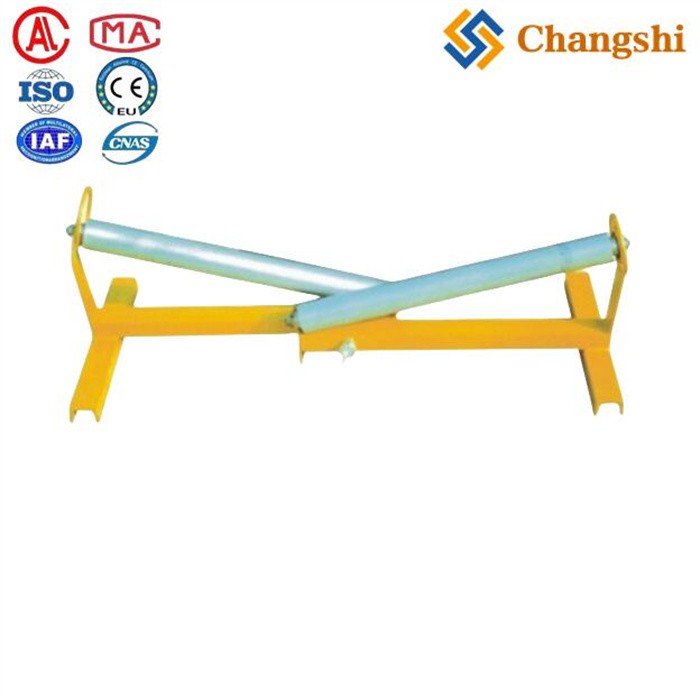

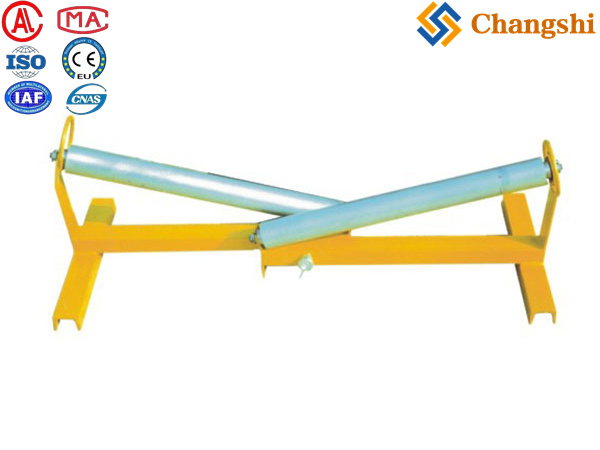

: The roller features a V-shaped groove formed by two inclined rollers or a single V-groove roller, which helps to centralize and guide the cable precisely during pulling or feeding.
-
: Often includes a mechanism to hold the cable in place or provide stable guidance, reducing lateral movement and preventing cable slippage.
-
:
-
Made from heavy steel section construction for durability.
-
Rollers typically have a diameter of 60 mm and are made from steel with precision sealed bearings for smooth rotation.
-
The rollers are spring-loaded for easy replacement.
-
-
: Usually features a zinc-plated or galvanized finish to resist corrosion and withstand outdoor conditions.
-
: Example dimensions include approximately 85 cm length, 60 cm width, and 44 cm height.
-
: Around 16 kg, making it sturdy yet portable.
-
: Used to lead cables from drums into trenches or ducts, ensuring smooth entry and reducing cable damage during installation.
-
: Can also be used as a straight line cable roller or pipe roller, making it a flexible tool for various cable installation needs.
-
The V Type Hold–On Cable Roller is a robust, zinc-plated, V-groove cable roller with spring-loaded 60 mm steel rollers designed to centralize and guide cables smoothly into trenches or ducts. Its hold-on feature stabilizes the cable during pulling, reducing damage and improving installation efficiency. It is widely used in outdoor cable laying projects and can also serve as a straight line or pipe roller.
