Cable Entrance Protection Roller To Protect Underground Cables And Pulling Ropes

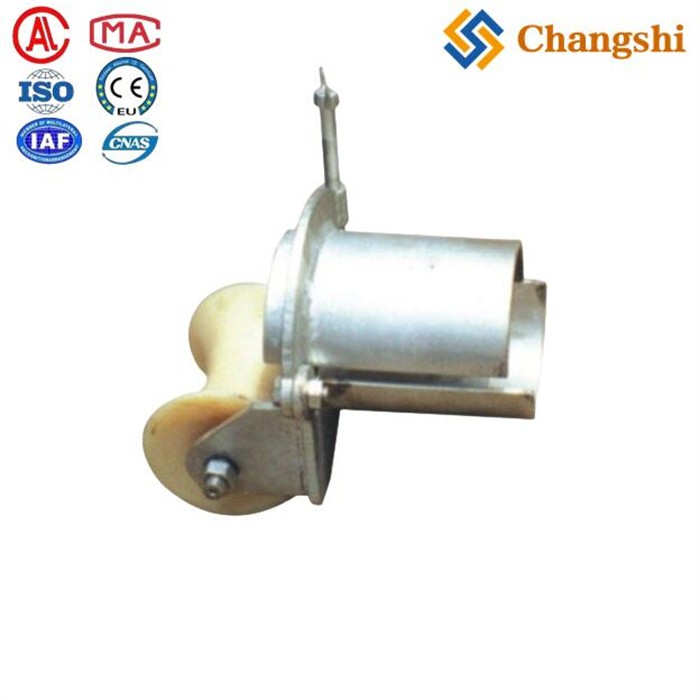

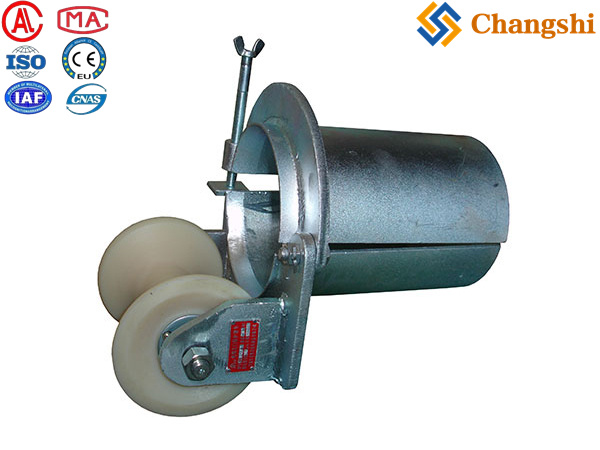

The B Series Cable Entrance Protection Roller is a specialized cable roller designed to protect underground cables and pulling ropes during installation, especially at cable entrances such as duct or pit openings.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The B Series Cable Entrance Protection Roller is a specialized cable roller designed to protect underground cables and pulling ropes during installation, especially at cable entrances such as duct or pit openings.
-
: 450 mm, which helps maintain the cable’s minimum bend radius and prevents damage from sharp bends.
-
: The rollers are typically made of nylon, providing a smooth, low-friction surface that protects cable insulation and reduces wear on pulling ropes.
-
: Features three nylon wheels arranged to guide the cable smoothly through bends or entrances.
-
: The roller can be placed inside the tube orifice at an arbitrary angle and is lockable, allowing flexible positioning to suit different installation scenarios.
-
: Suitable for ducts or tubes with diameters ranging from 80 mm to 200 mm.
-
: Varies by size, generally between 17 kg and 23 kg depending on the tube diameter.
-
: Used primarily for pulling underground power or communication cables, protecting cables from abrasion and mechanical stress at entry points, bends, or corners in trenches or ducts.
-
-
Protects cables and pulling ropes from damage during installation.
-
Reduces friction and mechanical stress on cables.
-
Adjustable and lockable positioning for optimal cable guidance.
-
Suitable for a wide range of cable and duct sizes.
The B Series Cable Entrance Protection Roller is a durable, nylon-wheel roller with a 450 mm curvature radius designed to safeguard cables and pulling ropes at underground cable entrances. Its adjustable mounting and smooth rollers ensure efficient, damage-free cable pulling in ducts or trenches with tube diameters from 80 to 200 mm.
