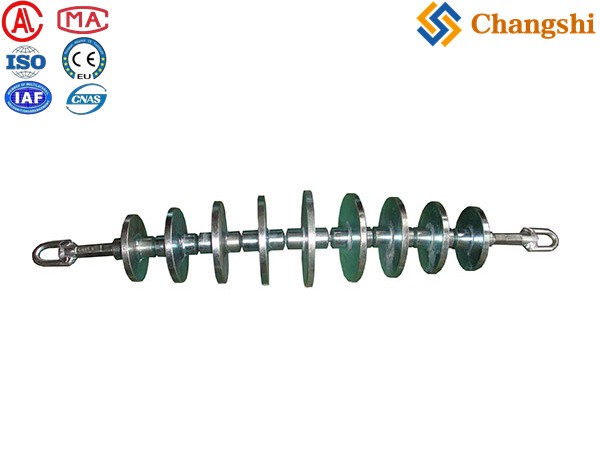

Cable Duct Proving Mandrel

Cable Duct Proving Mandrel: The Essential Pre-Installation Tool for Protecting Your Cables

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that the integrity of your cable installation begins with a clear and unobstructed path. Pulling an expensive cable through a compromised or fouled duct can lead to costly damage, project delays, and a significant risk of failure. Our Cable Duct Proving Mandrel is a professional-grade solution meticulously engineered to eliminate this risk. This simple yet critical tool is designed to be pulled through a conduit or duct prior to cable installation. Its robust construction and precise design effectively remove debris, mud, and other obstructions (or "fouls") while simultaneously proving that the duct is clear and properly sized. It is an indispensable step for any professional committed to a flawless, damage-free cable pull. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply and services for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this duct mandrel exemplifies our unwavering commitment to providing innovative, durable, and highly efficient solutions that are critical for modern construction and maintenance.

The Cable Duct Proving Mandrel is a must-have tool for any underground cable laying project. This specialized tool offers several key advantages:

• Effective Foul Removal: The rugged design is built to scrape and push out mud, debris, and other obstructions, ensuring a clean and safe pathway for your cable.

• Proving Conduit Integrity: By pulling the mandrel through, you can confirm that the conduit is properly sized and free of any hidden crimps, breaks, or bends that could damage a cable.

• Prevents Costly Cable Damage: This simple pre-installation step is the most effective way to prevent thousands of dollars in potential cable damage during a pull.

• Durable & Robust Construction: Crafted from high-strength steel or a durable polymer, the mandrel is designed to withstand the forces of a pull and the abrasion of a fouled duct.

• Versatile Application: Available in multiple diameters and styles to fit a wide range of conduits and ducts, including those for power, communication, and fiber optic cables.

By deploying Ningbo Changshi's Cable Duct Proving Mandrel, you invest in a practical, durable, and essential tool that provides an elevated level of control and safety at the most fundamental point of your cable installation, saving time, reducing injury risk, and ensuring the integrity of your projects.

Product Features & Benefits:

• Robust Construction: Made from durable steel or high-density polymer for a long service life.

• Winged or Round Design: Different styles are available to effectively clear obstructions and prove the conduit size.

• Connects Easily: Designed with a threaded or quick-connect eye for easy attachment to a pulling rope or winch line.

• Wide Range of Sizes: Available in multiple diameters to fit common conduit sizes, from small telecom ducts to large power cable conduits.

• Brightly Colored: Often manufactured in a highly visible color to prevent it from being left behind in a conduit.

Product Applications:

Our Cable Duct Proving Mandrel is an indispensable tool for a wide range of specialized cable handling and deployment projects:

• underground cable Laying: Essential for preparing conduits and ducts before pulling new power or communication cables.

• Telecommunication Network Installation: Used to inspect fiber optic cable ducts and ensure they are clear of obstructions that could damage delicate glass fibers.

• Infrastructure Maintenance: Ideal for re-proving ducts during maintenance or upgrade projects.

• Any Project with Concealed Ducts: A critical pre-installation step wherever cables are installed in a contained or underground environment.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: The actual specifications, load capacities, and dimensions depend on the specific model. It is crucial to select a mandrel that matches the diameter of your conduit. Please contact us for detailed datasheets for specific models and their exact specifications.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power lines, substations, electrical construction, and maintenance. Here’s why our Cable Duct Proving Mandrel is your ideal choice:

1. Engineered for Superior Protection: This mandrel is a simple, effective insurance policy against costly cable damage and project delays.

2. Durable & Reliable: Built to last, it can be used repeatedly on countless projects, providing exceptional value.

3. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

4. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of power and communication infrastructure.

Final Summary:

Our Cable Duct Proving Mandrel is an indispensable, intelligently engineered solution designed for the safe, efficient, and damage-free handling of heavy cable drums. Its advanced features are fundamental to maximizing productivity and enhancing overall project safety. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge equipment essential for the success and reliability of your next power or communication cabling endeavor.

Ensure a flawless cable pull. Explore our Cable Duct Proving Mandrels. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific conduit requirements and request a comprehensive quotation for this essential, high-performance tool!
