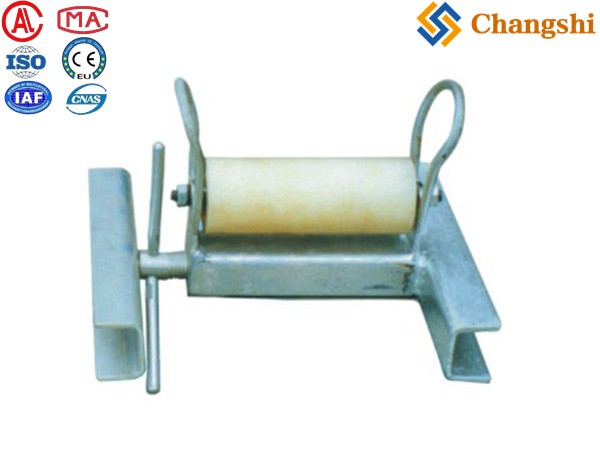

Cable Chute Crossing Tube Protection Roller

Cable Chute Crossing Tube Protection Roller: The Specialized Tool for Safe underground Transitions

At Ningbo Changshi Electric Power Machinery Manufacturing Limited, we understand that underground cable laying is a complex process filled with potential challenges. One of the most common issues is navigating a cable over or around existing infrastructure, such as a "crossing tube" or conduit, often within a tight space like a "cable chute." This point of contact can lead to high friction, cable jacket damage, and even damage to the crossing tube itself. Our Cable Chute Crossing Tube Protection Roller is a specialized tool meticulously engineered to solve this problem. It provides a stable, low-friction guide that ensures a smooth passage for the cable, protecting both the new cable and the existing infrastructure. As a prominent China manufacturer and exporter specializing in comprehensive one-stop supply and services for both overhead transmission line (OHTL) wire cable conductor tension stringing equipment and underground cable laying equipment, this specialized roller exemplifies our unwavering commitment to providing innovative, durable, and highly efficient solutions that are critical for modern construction and maintenance.

The Cable Chute Crossing Tube Protection Roller is designed for secure placement at the point where a cable must pass over another object in a confined area. This tool offers several key advantages:

• Dedicated Crossing Tube Protection: Specifically engineered to provide a smooth, protected path for cables and pulling ropes as they pass over another tube, preventing contact with sharp, abrasive edges.

• Dual Protection for Cable & Infrastructure: The robust roller is designed to protect not only the cable jacket but also the integrity of the existing "crossing tube," preventing costly damage to both.

• Low-Friction, High-Efficiency Pulls: The smooth-rolling action of the roller significantly reduces the friction exerted on the cable, which in turn lowers the pulling force required, making the installation faster, safer, and less strenuous on equipment.

• Stable, Secure Placement: The robust frame is designed for stable placement within a cable chute or trench, ensuring the roller remains fixed and reliable throughout the entire pull.

By deploying Ningbo Changshi's Cable Chute Crossing Tube Protection Roller, you invest in a practical, durable, and essential tool that provides an elevated level of control and protection at the most critical points of your underground installation, saving time, reducing costly cable damage, and ensuring the safety and integrity of your projects.

Product Features & Benefits:

• Specialized Design for Cable Chutes: Meticulously engineered for the specific application of guiding cables over crossing tubes in confined spaces.

• Dual Protection: The roller provides a smooth surface, preventing damage to both the cable jacket and the existing crossing tube or infrastructure.

• Reduces Friction & Pulling Force: The smooth-rolling action significantly decreases the effort required, making installation easier and more efficient.

• Heavy-Duty Construction: Built with a strong frame and a durable roller to withstand the forces of a high-tension pull and provide a long service life.

• Enhanced Safety: By providing a stable and secure guide, the roller reduces the risk of accidents and equipment strain at a high-stress point of the installation.

Product Applications:

Our Cable Chute Crossing Tube Protection Roller is an indispensable tool for a wide range of specialized underground cable handling and deployment projects:

• Manhole & Vault Installations: Essential for guiding cables over existing conduits, pipes, or other obstacles within a manhole.

• Trench Laying: Ideal for use in open trenches where the cable path crosses over other utility lines or pipes.

• Substation & Industrial Installations: Facilitates the safe deployment of cables in complex underground duct banks where space is limited and obstacles are present.

• Any Project with Crossing Obstacles: Applicable wherever a smooth, low-friction, and damage-free path is needed for a cable passing over existing infrastructure.

Technical Data Sheet (Example Specifications - please refer to specific model for exact data):

Note: The actual specifications, load capacities, and dimensions depend on the specific model. It is crucial to select a guide that meets the weight and size requirements of your cables. Proper placement and secure anchoring are essential for safe and efficient pulling. Please contact us for detailed datasheets for specific models and their exact specifications, compatible cable sizes, and load capacities.

Why Choose Ningbo Changshi Electric Power Machinery Manufacturing Limited?

Choosing Ningbo Changshi means partnering with a trusted industry leader dedicated to providing high-performance, precise, and safe equipment for your power lines, substations, electrical construction, and maintenance. Here’s why our Cable Chute Crossing Tube Protection Roller is your ideal choice:

1. Specialized, Purpose-Built Design: This roller is engineered specifically for the challenging task of navigating cables over crossing tubes, providing a level of protection and control that a general-purpose roller cannot.

2. Dual Protection for Cable & Infrastructure: It protects both your valuable cable and the existing infrastructure from damage, saving you from costly repairs and replacements.

3. Enhanced Safety & Efficiency: The low-friction, stable design makes installation easier, faster, and more controlled, reducing the risk of accidents and equipment strain.

4. Comprehensive One-Stop Supply Chain Mastery: As a preeminent manufacturer and exporter, we offer an unparalleled array of cutting-edge equipment for both overhead transmission line and underground cable laying projects, streamlining your entire procurement process with a single, reliable source for all your specialized tools.

5. Global Trust & Proven Excellence: Our unwavering commitment to quality, innovation, and safety has earned us the trust of leading power utilities and electrical contractors worldwide, making us the preferred choice for reliable, high-performance solutions that safeguard the future of power and communication infrastructure.

Final Summary:

Our Cable Chute Crossing Tube Protection Roller is an indispensable, intelligently engineered solution designed for the safe, efficient, and damage-free handling of cables at critical crossing points within underground infrastructure. Its specialized design is fundamental to simplifying a complex aspect of cable pulling and enhancing overall project efficiency and safety. Trust Ningbo Changshi Electric Power Machinery Manufacturing Limited to provide the cutting-edge equipment essential for the success and reliability of your next underground cabling endeavor.

Protect your cables and infrastructure at every crossing point! Explore our Cable Chute Crossing Tube Protection Rollers. Visit www.ohtlstringingequipment.com or contact Ningbo Changshi Electric Power Machinery Manufacturing Limited today to discuss your specific installation challenges and request a comprehensive quotation for this essential, high-performance tool!
