Anti Twist Running Headboards For Installation Stringing OPGW Fiber Optic Cables

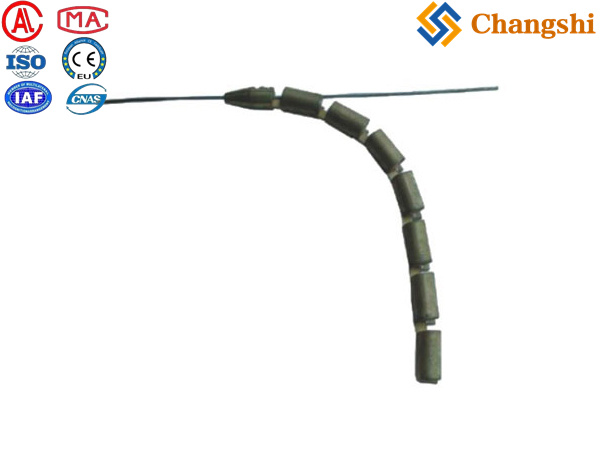

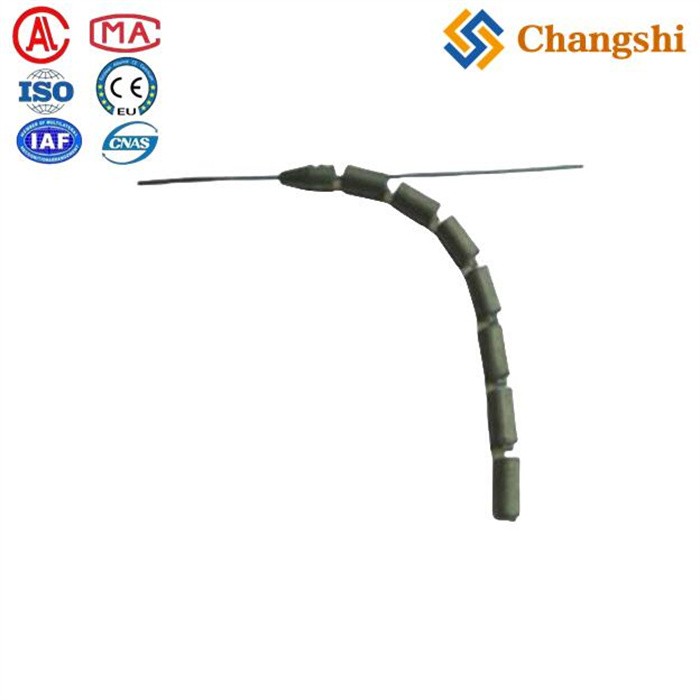

The Model ZB1 Anti-Twisting OPGW Running Headboards are specialized tools designed for the installation and stringing of Optical Ground Wire (OPGW) fiber optic cables. These headboards serve as anti-torsional devices to prevent twisting of the cable during the pulling and stringing process, which is critical to protect the delicate optical fibers inside the OPGW cable.
- Transmission Line Wire Cable Conductor Tension Stringing Equipment
- Transmission Conductor Tension Stringing Equipment For Overhead Power Lines
- Tools For Power Lines,Substation,Electrical Construction & Maintenance
- Electric Power Transmission Distribution Line Construction Machine Tools
- Overhead Power Transmission Distribution Line Repair Hardware Fittings
- Underground Cable Laying Pulling Installation Equipment Machine Tools Accessories
- Information
- Video
The Model ZB1 Anti-Twisting OPGW Running Headboards are specialized tools designed for the installation and stringing of Optical Ground Wire (OPGW) fiber optic cables. These headboards serve as anti-torsional devices to prevent twisting of the cable during the pulling and stringing process, which is critical to protect the delicate optical fibers inside the OPGW cable.
-
: ZB1
-
: 11.5 mm to 16 mm
-
: 32 N·m (Newton-meters)
-
: Two parts, each 12.5 kg (total 25 kg)
-
: Steel construction for durability and strength
-
: Comes with two running boards spaced approximately 2 meters apart, which are directly screwed onto the OPGW cable
-
: The headboard allows the cable to pass through sheaves with a groove diameter of 660 mm without twisting, ensuring torque stability during installation
-
: ISO and CE certified, indicating compliance with international quality standards
-
: Typically 1 year
-
: Usually shipped in a wooden or export case for protection during transport
-
: Usually within 5-10 working days after order confirmation
-
: Up to 5000 sets per month in some manufacturers
-
The Model ZB1 headboard is used in overhead line construction for OPGW cables, which combine the functions of grounding and fiber optic communication. During installation, OPGW cables are prone to twisting due to their stranded construction and the tension applied. The anti-twisting headboard counteracts this by stabilizing the cable and preventing rotation, which could damage the optical fibers inside.
The device is mounted at the pulling head of the cable, with counterweights spaced to ensure continuous anti-twist action as the cable passes through pulleys and tensioners. This setup is essential for maintaining the integrity of the cable throughout the installation process.
| Feature | Specification |
|---|---|
| Model | ZB1 |
| Applicable OPGW Diameter | 11.5 mm – 16 mm |
| Anti-Twist Moment | 32 N·m |
| Weight | 2 × 12.5 kg |
| Material | Steel |
| Certification | ISO, CE |
| Warranty | 1 Year |
| Packaging | Wooden or export case |
| Delivery Time | 5-10 working days |
This tool is critical for ensuring safe, efficient, and damage-free installation of OPGW fiber optic cables on overhead power lines
